BLU-JET LEGACY - Secondary Wing 28 Extension Kit

175
Task Procedures Illustrations
LEGACY
Secondary Wing 28” Extension Kit
55000106 Kit, Extension, 28” Straight, 19R30,
1. AM4544 2 Bracket, extension, 28” 6” X 6”
2. BP3034 8 Nut, hex, 3/4”-10, grade 2, plated
3. BP3035 8 Washers, lock, 3/4”, plated
4. BP3141 8 Hex cap screw, 3/4”-10 x 3”, grade 5, plated

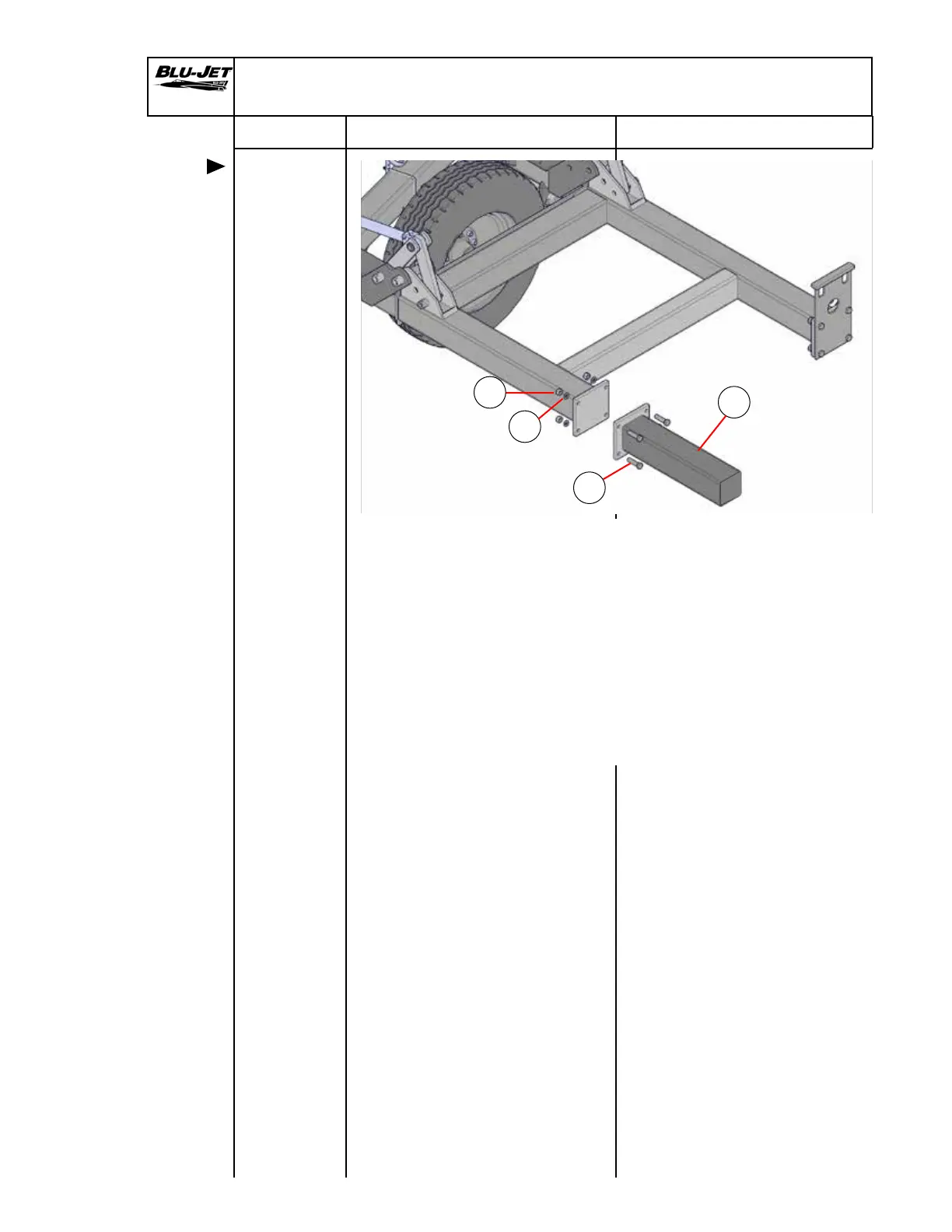

Installation
of 28”
extension kit
1. Mount (1) (AM4544) 28”
extension bracket 6” x 6” on
on secondary wing tractor side
with four (4) (BP3141) 3/4” x 3”
grade 5 hex cap screws.
Secure with (3) (BP3035) 3/4”
lock washers and (2) (BP3034)
hex nuts grade 2.
1
4
3
2
