BLU-JET LEGACY - Hose Holder and Hose Tender

167
Task Procedures Illustrations
LEGACY

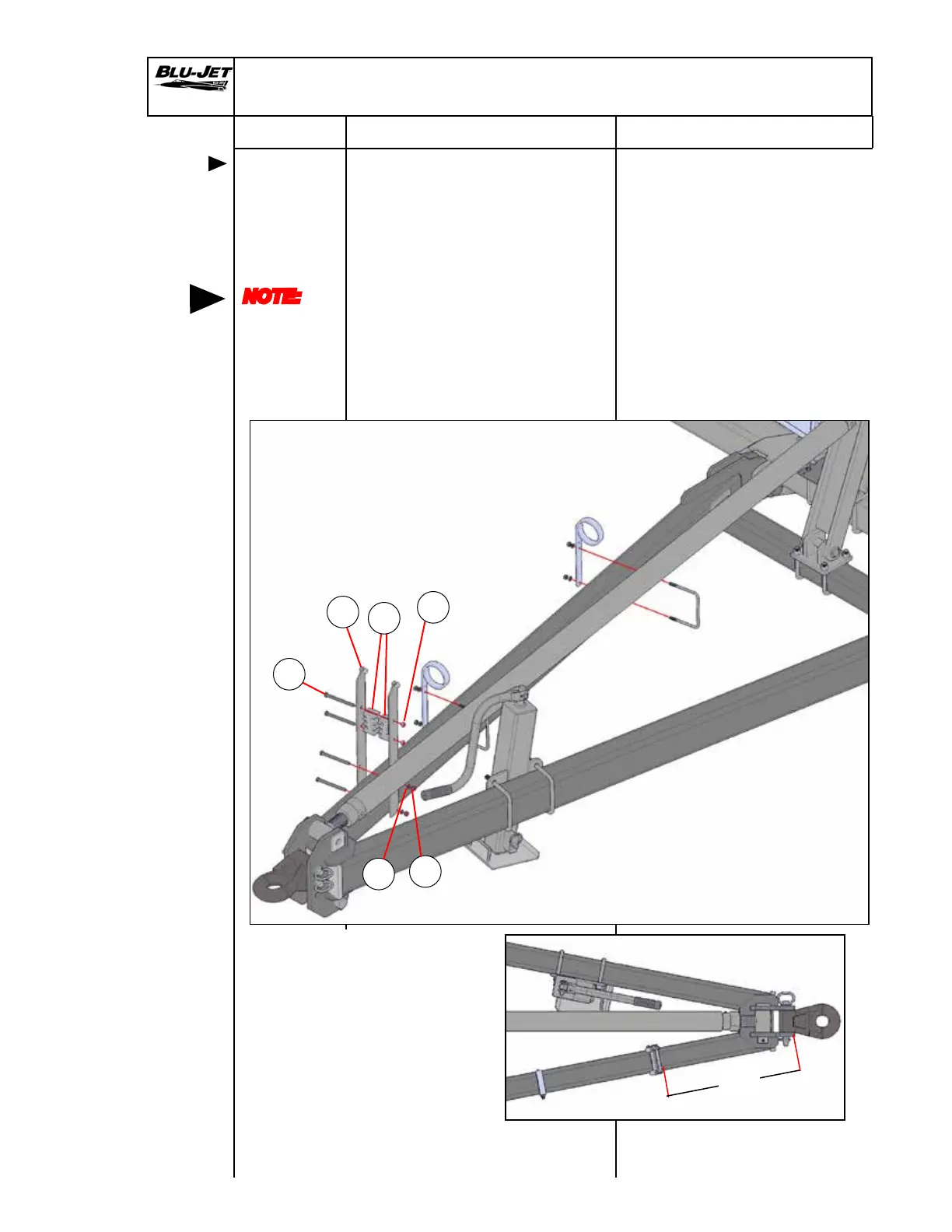

Hose Holder and Hose Tender Mounting
Mounting
hose
holder
and hose
tender
a
NOTE:
Left-hand
and
right-hand
as viewed
from the
rear
1. Place (a) (AM4528)
hose holder brackets
24-3/4” from hitch end of
tongue. Insert (b)
(BP3118) 3/8” x 5” hex
cap screws through
bracket over tongue into
second bracket. Secure
with (c) (BP3002) 3/8”
lock washers and (d)
(BP3001) 3/8” hex nuts.
2. Position (f) (AP2871)
poly hose retainer between
brackets and insert
(b) (BP3118) 3/8” x 5”
hex cap screws through
brackets and place (g)
(BP3003) 3/8” lock nuts
on bolts.
Do not tighten until hose
are inserted.
3. Install (h) (AM4015)
hydraulic hose tenders
behind hose holder with
(i) (BP3045) 3/8” x 6”W
5”L u-bolt, (c) (BP3002)
3/8” lock washers and
(d) (BP3001) 3/8” hex
nuts.
c
d
g
21”
b
f
