BLU-JET LEGACY - Secondary Wing Stop and Straight Extension

46
LEGACY

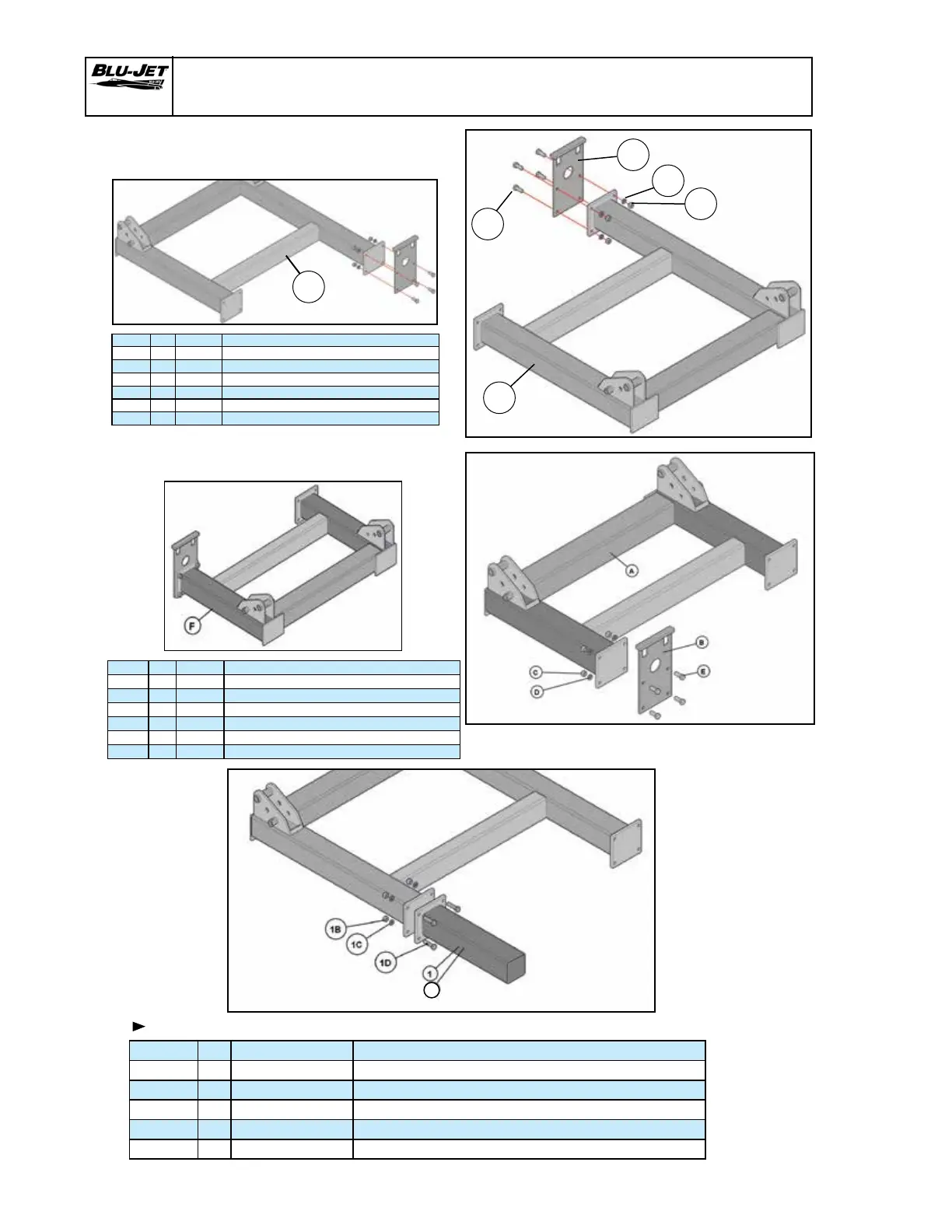

Secondary Wing Stop and Straight Extension
Part of Bundle Number:
66000106 (SECONDARY WINGS)
A
55000106 KIT EXTENSION, 28” STRAIGHT, 19 ROW 30”
E
C
D
F
B
Part of Bundle Number:
66000128 (SECONDARY WINGS)
BOM ID Qty Item No Description
A 1 AM4551 WING, SECONDARY, 5’8”, LEFT-HAND, LEGACY
B 1 AM4565 SECONDARY WING REST
C 4 BP3034 NUT, HEX, 3/4”-10, GRADE 2, PLATED
D 4 BP3035 WASHER, LOCK, 3/4”, PLATED
E 4 BP3139 HEX CAP SCREW, 3/4”-10 X 2”, GRADE 5, PLATED
F 1 AM4552 WING, SECONDARY, 5’8”, RIGHT-HAND, LEGACY
BOM ID Qty Item No Description
A 1 AM6225 WING, SECONDARY, 3’2”, LEGACY
B 1 AM4565 SECONDARY WING REST
C 4 BP3034 NUT, HEX, 3/4”-10, GRADE 2, PLATE
D 4 BP3035 WASHER, LOCK, 3/4”, PLATED
E 4 BP3139 HEX CAP SCREW, 3/4”-10 X 2”, GRADE 5, PLATED
F 1 AM6225 WING, SECONDARY, 3’2”, LEGACY
BOM ID Qty Item No Description
1 1 55000106 single KIT, EXTENSION, AT6010 28” STRAIGHT, 19 ROW 30”
1A 1 AM4544 BRACKET, EXTENSION, 28”, 6” MOUNTING
1B 4 BP3034 NUT, HEX, 3/4”-10, GRADE 2, PLATED
1C 4 BP3035 WASHER, LOCK, 3/4”, PLATED
1D 4 BP3141 HEX CAP SCREW, 3/4”-10 X 3”, GRADE 5, PLATED
1A
