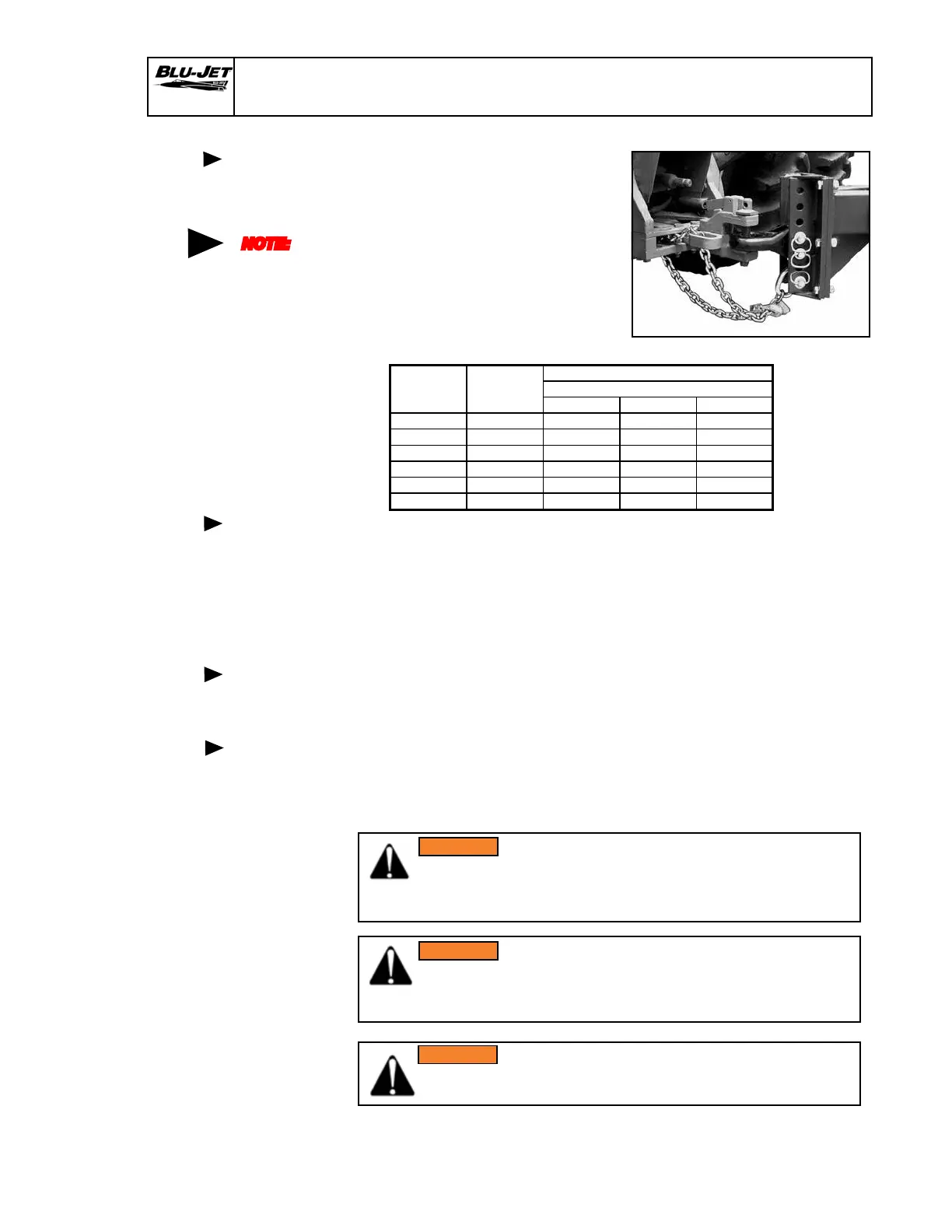

BLU-JET LEGACY - Operating Instructions

11
LEGACY
Operating Instructions
Hitch
1. The tractor must be equipped
with a drawbar and a draw-
bar safety chain clevis. For
rigid frame tractors equipped
with swinging drawbar, the
drawbar must be located in a
xed position in the center of
the tractor. Refer to your
tractor operators manual for
drawbar adjustment and
drawbar operating instructions.
WARNING: Tractor drawbar must be in a xed position before
transporting implement. Implement will sway or slam against
tractor resulting in equipment damage or injury to personnel.
WARNING: In case the tractor hitch pin is lost during transport-
ing. The safety chain must be attached between the implement
and tractor to prevent separated implement from running freely
and causing damage or injury.
WARNING: Do not move articulated tractor steering wheel
until everyone is clear of the equipment. Moving the steering
wheel can swing or move attached equipment which could
cause serious personal injury.
Tractor to
tool bar
connection
2. Before connecting the tool bar to the tractor drawbar, raise the
tractor three point hitch (if equipped) to prevent interference
between the implement and the tractor.
Connect the tool bar to tractor drawbar ONLY. DO NOT connect
the tool bar to any other part of the tractor. Connect the tool bar
clevis to the tractor drawbar with hitch pin. Install the safety
chain through the tractor drawbar support bracket.
3. Always use a safety hitch pin of the correct diameter. Make sure
that the hitch pin is locked in place with a safety type lock pin or
other locking device.
4. Always use a safety chain between the toolbar and the tractor.
Install the chain to the tractor drawbar support bracket. Support
the center of the chain with a clevis installed to the tractor
drawbar.
Safety
hitch pin
Safety
chain
Generic Photo
PTO
Power
Category (HP) Short Regular Extended
0 ≤ 38 1,574 1,124 787
1 ≤ 64 2,698 1,798 1,349
2 ≤ 154 4,946 3,372 2,473
3 ≤ 248 6,070 4,046 2,922
4 ≤ 402 7,418 4,946 3,597
5 ≤ 671 10,116 6,744 N/A
Maximum Vertical Drawbar Load (lbs)
Drawbar Position
NOTE:
Implement
hitch weights
are designed
to match
tractor size
ranges.
Check the
following
chart to
conrm your
particular
implement
specica-
WARNING
WARNING
WARNING
