BLU-JET LEGACY - Supershooter III Add-On Parts, Dual (66000137)

Task Procedures Illustrations
218
LEGACY
SuperShooter
single
assembly

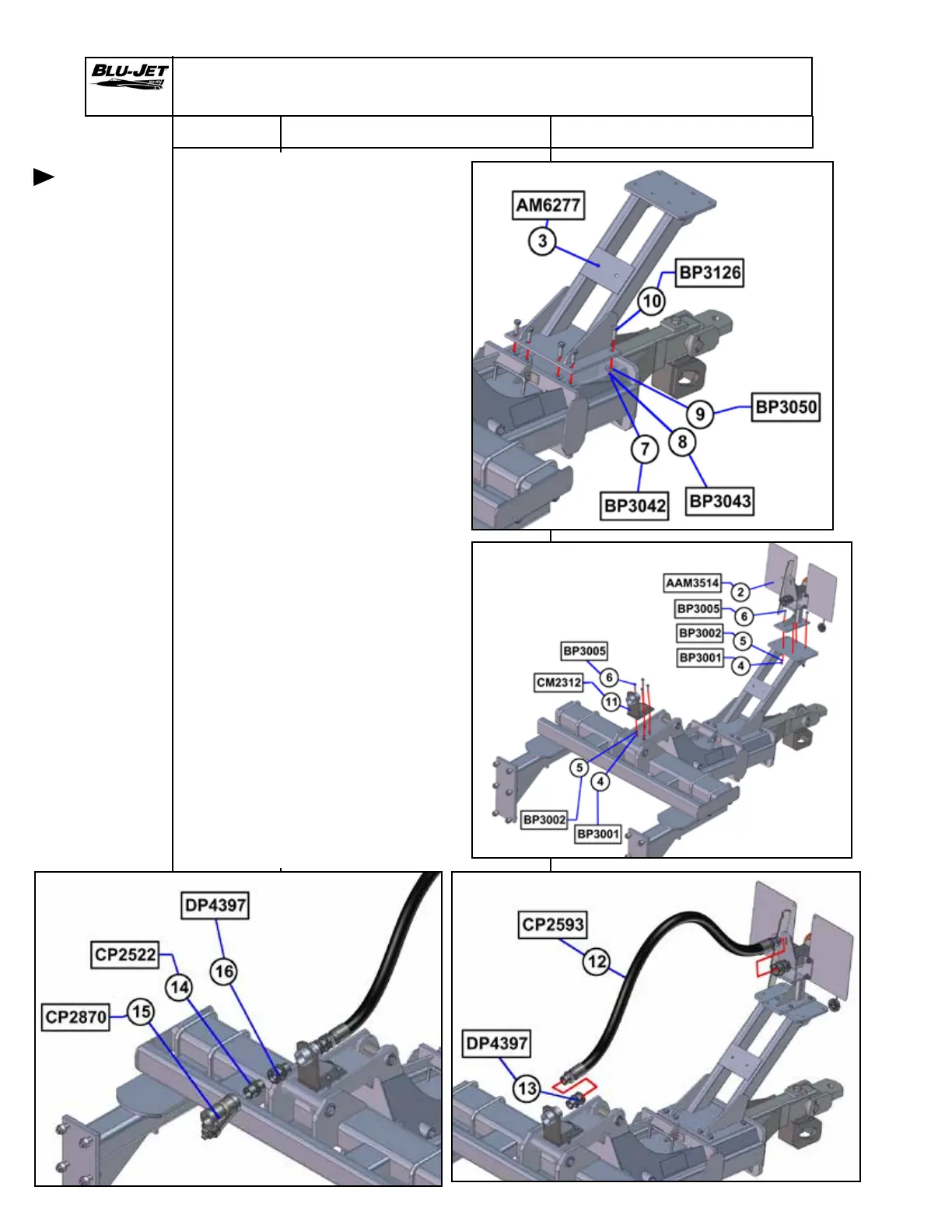

SuperShooter III Add-on Parts
66000136 Single Assembly
1. Attach (3) (AM6277) Super-
Shooter riser to hitch with (10)
(BP3126) 1/2” x 1-1/2”, grade 5,
hex cap screws, Secure with
(9) (BP3050) 1/2” at washers,
(8) (BP3043) 1/2” lock washers
and (7) (BP3042) 1/2” hex nuts.
2. Mount (2) (AAM3514) Super
Shooter to (3) riser with (10)
(BP3126) 1/2” x 1-1/2” hex cap
screws. Secure with (6) (BP3005)
3/8” x 1/1/2” hex cap screws,
(5) (BP3002) 3/8” lock washers
and (4) (BP3001) 1/2” hex nuts.
3. Mount (11) (CM2312) single coupler
bracket to linkage with (6)
(BP3005) 3/8” x 1-1/2” hex cap
screws. Secure with (5) (BP3002)
3/8” lock washers and (4) (BP3001)
3/8” hex nuts.
4. Apply sealant to threads of
(13) (DP4397) 1-1/4”MP x 1-1/4
FP swivel install into coupler
bracket.
5. Apply sealant to (12) (CP2593)
1-1/4” NH3 hose install in (13)
and SuperShooter tting.
6. Apply sealant to threads of
(16) (DP4397) 1-1/4”MP x 1-1/4
FP swivel install into coupler
bracket.
7. Apply sealant to each threaded
end of (14) (CP2522) 1-1/4”
NPT hex nipple install in
(16). Attach (15) (CP2870)
1-1/4” strainer to (14).
