Task Procedures Illustrations
LEGACY

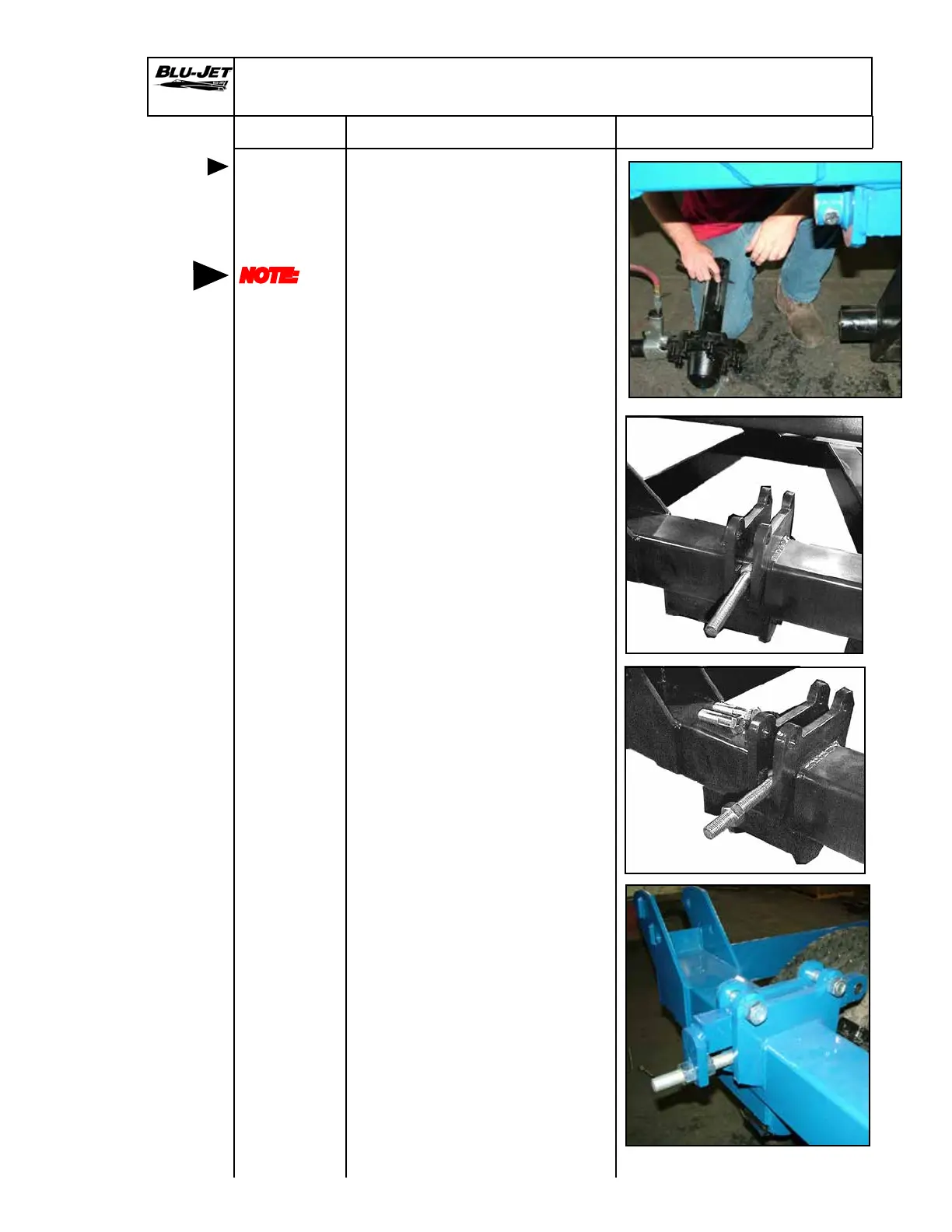

3. Remove paint from (g)
(AAM2800-1 608 hub 2-3/4” 4 x
16 spindle end. Place anti-seize
on spindle before inserting in
wheel leg loop.
4. Turn set screws out before
inserting spindle.
5. Insert spindle into wheel leg.
Position spindle 3/4” from end
of loop.
6 Tighten set screws and
remove lugs before mounting
tires.
7 Insert (h) (BM3555) 1” x 7-5/16”
threaded rod with welded head
into groove slot on mounting
bracket.
8. Place (i) (BP3019) 1” , grade
2 hex nut on threaded rod.
Move hex nut down until
the outside face is 4” from the
end of the threaded rod.
9. Place (j) (AM4564) cylinder
lug screw over threaded rod.
Install (h) (BP3019) 1” , grade
2 hex nut over threaded rod
to lug.
10. Insert (k) (BP3291) 1” x 4” hex
cap screws into wing weldment.
Secure with (i) (BP3019) 1”,
grade 2 hex nuts.
Primary Wing Gauge Wheel Assembly
Mounting
primary
wing
gauge
wheels
NOTE:
Left-hand
and
right-hand
as viewed
from the
rear
To Next Page
