Hitch Storage Assembly
Mounting
hitch
holder

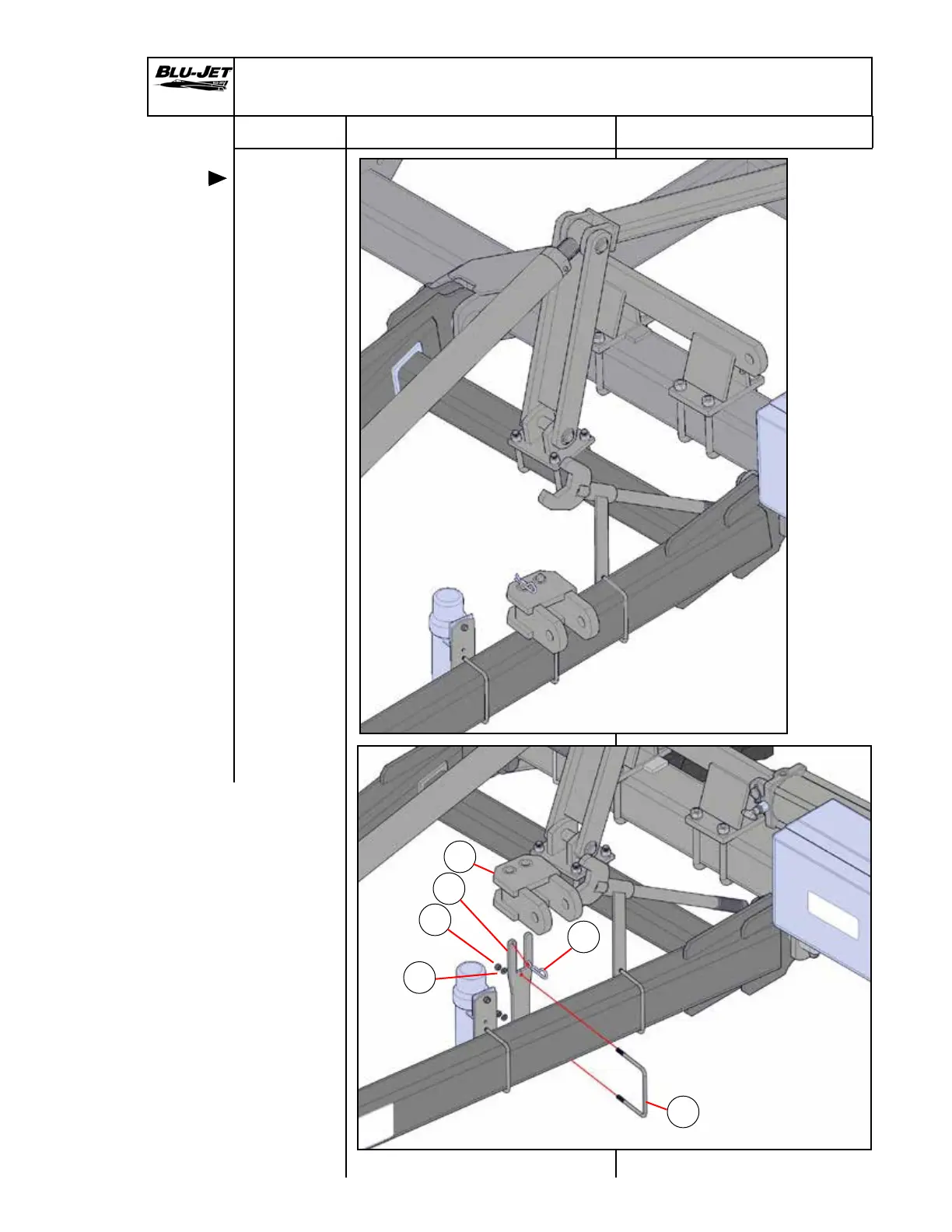

1. Mount (a) (AM2145)
hitch storage bracket
on tongue with (b)
(BP3045) 3/8”-16 x 6”W x
5”L u-bolt, (c) (BP3002)
3/8” lock washers and (d)
(BP3001) 3/8” hex nuts.
Place (e) (AM2144)
fabricated truck hitch on
storage bracket. Secure
with (f) (BP3500) 3/16”
hair pin clip.
a
d
b
e
f
c
