Task Procedures Illustrations
190
LEGACY
Primary Wing Left-hand Area of Bundle
Depth Control Assembly

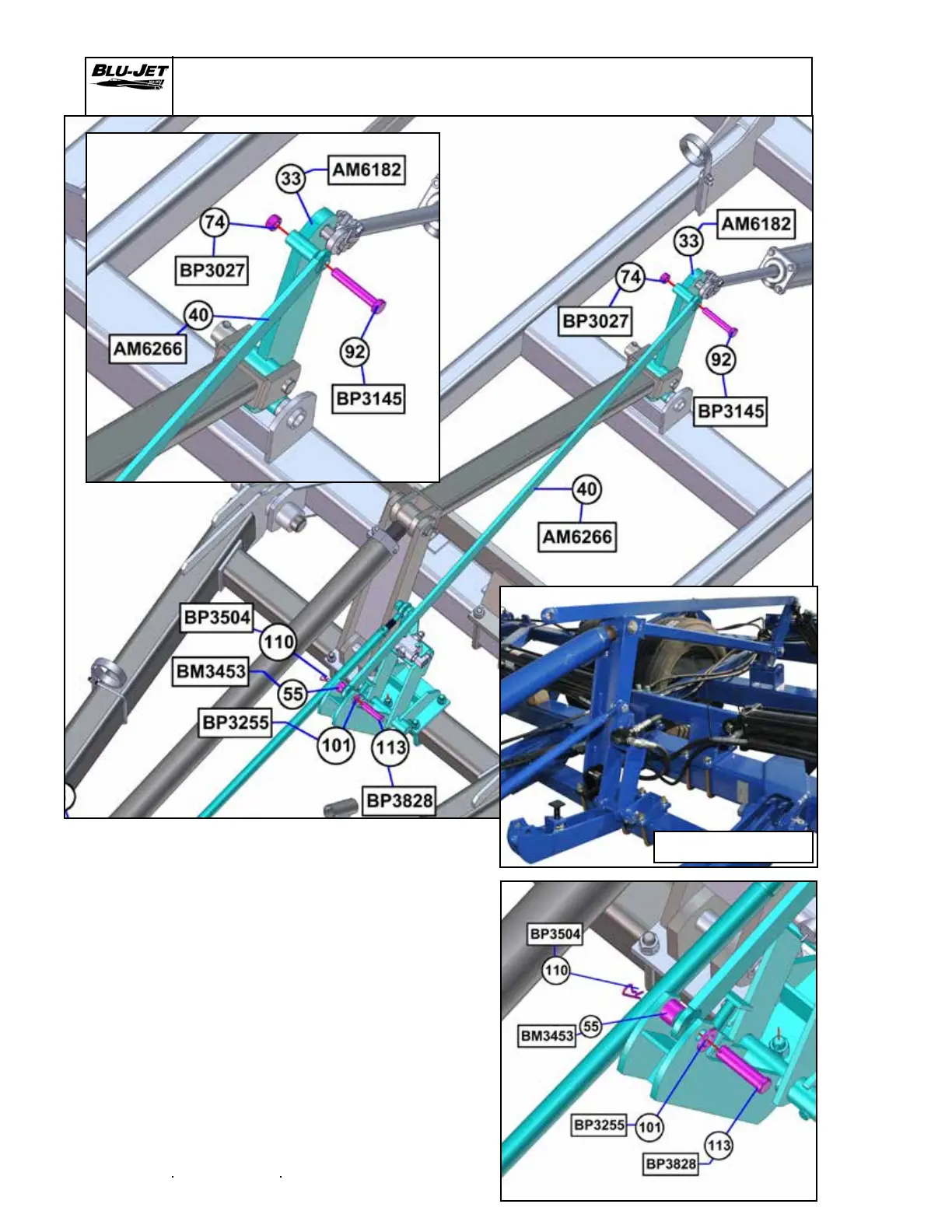

ATTACHING DEPTH CONTROL
LINKAGE STOP
1. NOTE: Do not attach (40) (AM6266) depth
control stop linkage to button stop bracket
until the cylinders have been fully charged.
2. Place (40) (AM6266) depth control stop linkage
in button stop bracket. Insert (113) (BP3828)
3/4” x 3” clevis pin. Install (101) (BP3255) 3/4”
at washer and (55) (BM3453) spacer
as pin is inserted. Secure with (110) (BP3504)
1/8” hairclip pin.
3. Attach (40) to (33) (AM6182) tongue arm
linkage with (92) (BP3145) 3/4” x 4-1/2” hex
cap screw and (74) (BP3027) 3/4” hex
lock nut.
GENERIC PHOTO
