Task Procedures Illustrations
LEGACY
Primary Wing Left-hand Area of Bundle
Depth Control Assembly

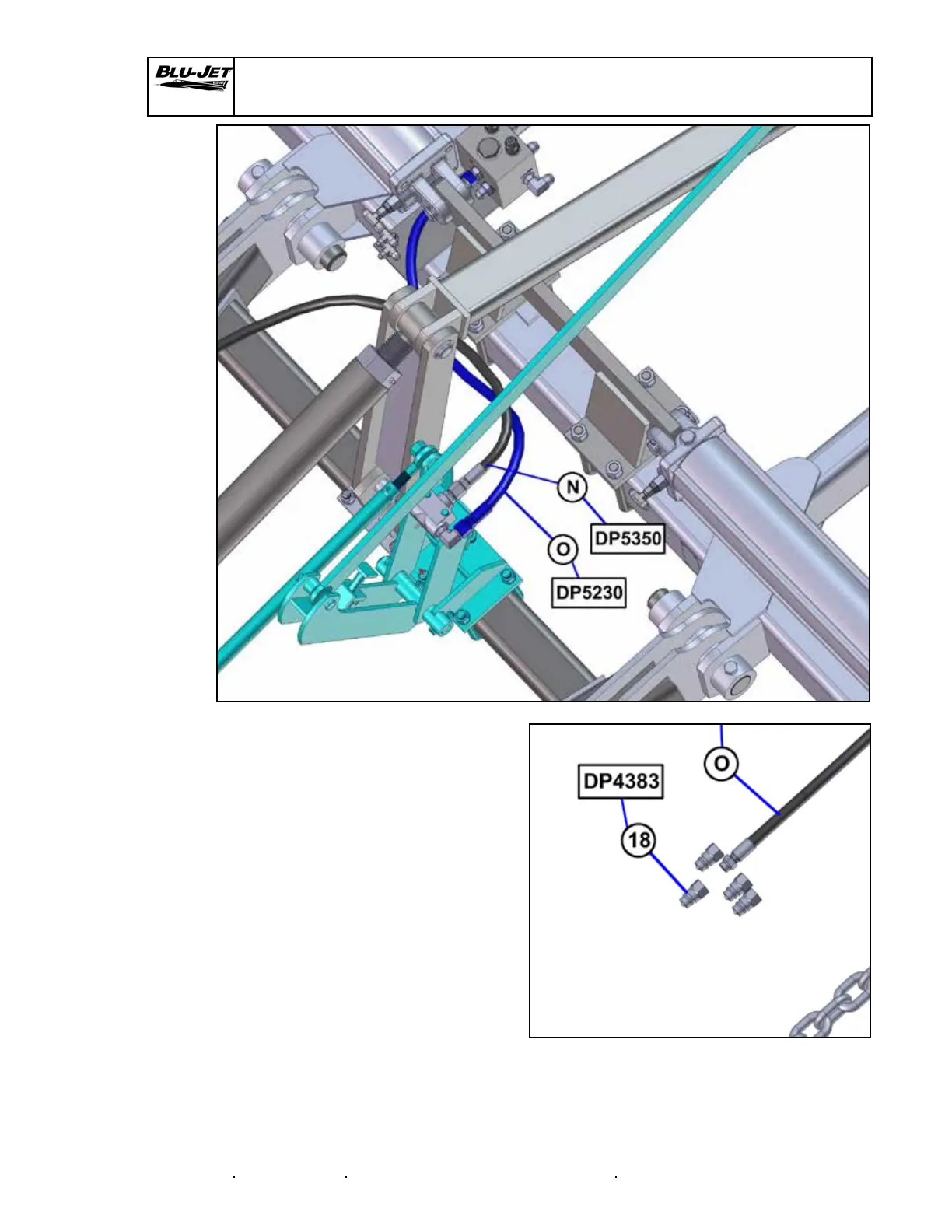

ATTACHING HYDRAULIC HOSES
1. Attach (O) (DP5230) 1/2” x 42” hose to
the IN ow divider valve tting. Extend
to control valve 90 degree tting.
2. Attach (N) (DP5350) 1/2” x 240” hose
to center control valve tting and extend
to tractor.
3. Install (18) (DP4383) Pioneer coupler.
