Task Procedures Illustrations
146
LEGACY

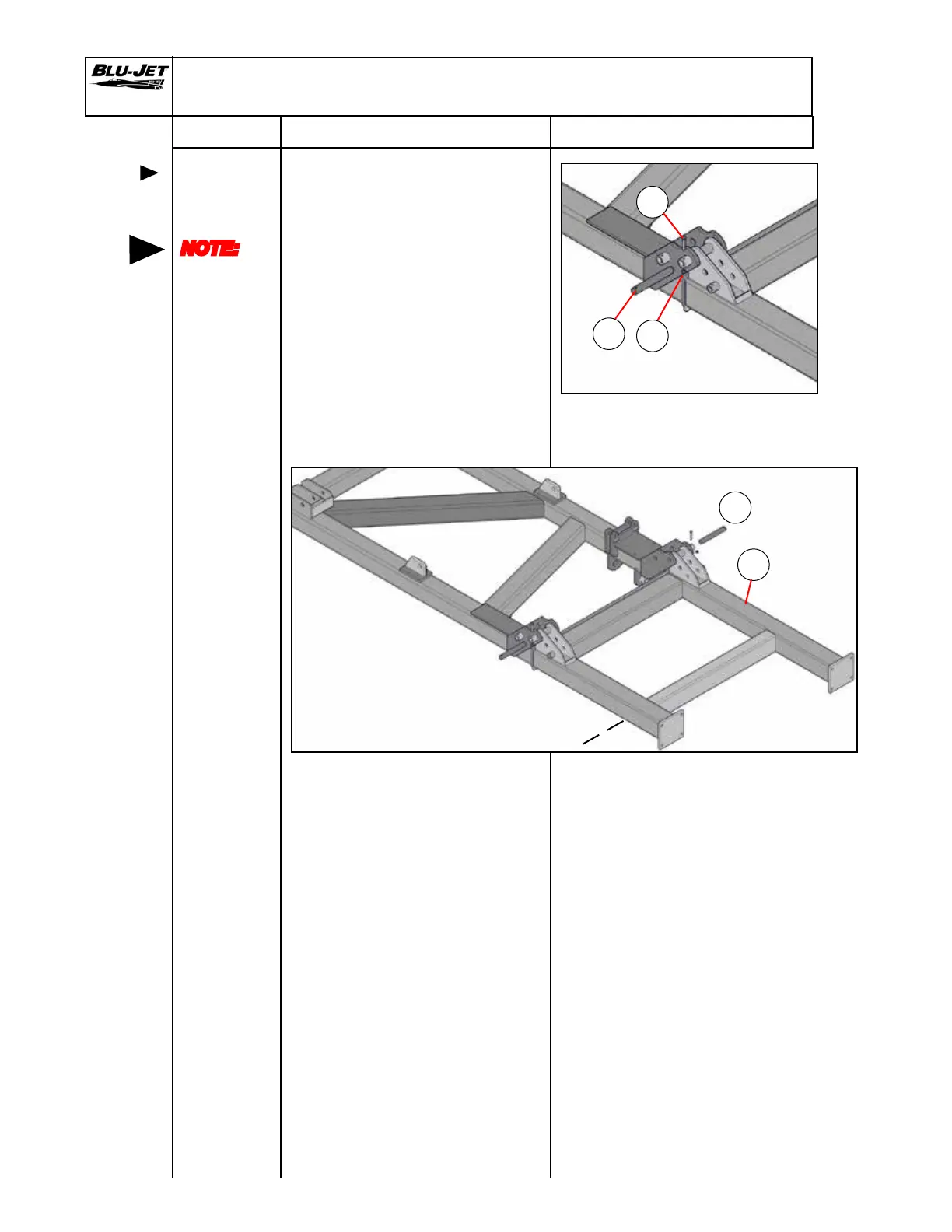

Secondary Wing Assembly
Mounting
secondary
wings
1. Position (a) (AM4551) left-hand
secondary wing in primary
wing weldments.
Insert (b) (BM3816) 1-1/4” x
9-13/16” OAL pins into primary.
hinge weldments.
Secure pins with (c) (BP3096)
3/8” x 2-1/2” hex cap screws and
(d) (CP2660) 3/8” hex lock nuts.
2. Position support stand under
wing brace.
3. Repeat assembly with (e)
(AM4552) right-hand secondary
wing.
NOTE:
Left-hand
and
right-hand
as viewed
from the
rear
a
Left-hand from the rear
e
Left-hand
Right-hand
Position stand
under wing brace
AM4552
AM4551
b
c
d
To Next Page
