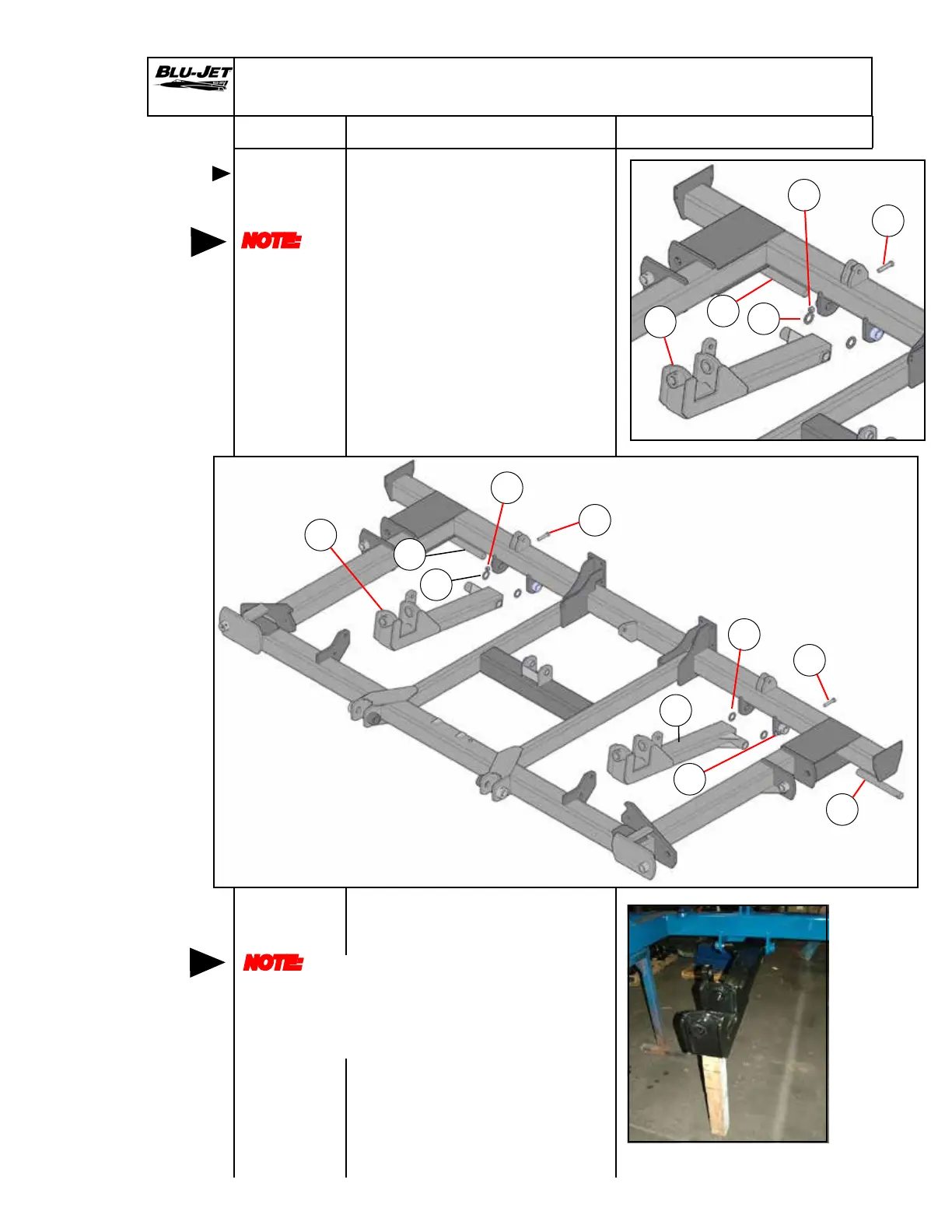

Dual Wheel Center Lift Assembly
Mounting
dual wheel
legs
1. Mount (a) (AM6173) left-hand
wheel leg duals w/pivot and (b)
(AM6174) right-hand wheel leg
duals w/pivot and to main
frame.
2. Insert (c) (BM3664) 1-3/4” x
16-3/4” pin into main frame
weldment. Place (d) (BP3205)
2-1/2” x 1-3/4”ID 10 GA.
machinery bushings on both
sides of wheel leg tube as pin
is inserted.
Secure pin with (e) (BP3135)
5/8” x 3-1/2” hex cap screw and
(f) (BP3375) 5/8” Nylock hex
nut.
3. Raise wheel leg assembly and
place on support.
Tractor Side
Right-hand side
from the rear
Left-hand side
from the rear
NOTE:
Wheel leg positions shown are
for 30” and 15” row spacing.
20” row spacings require
AM6173 and AM6174 to be
switched.
b
e
f
a
c
d
c
d
e
f
b
e
f
c
d
NOTE:
Left-hand
and
right-hand
as viewed
from the
rear
To Next Page
