BLU-JET LEGACY - Primary Wing Cable Release

Task Procedures Illustrations
164
LEGACY
b
Mounting
primary
wing cable
release
NOTE:
Left-hand
and
right-hand
as viewed
from the
rear

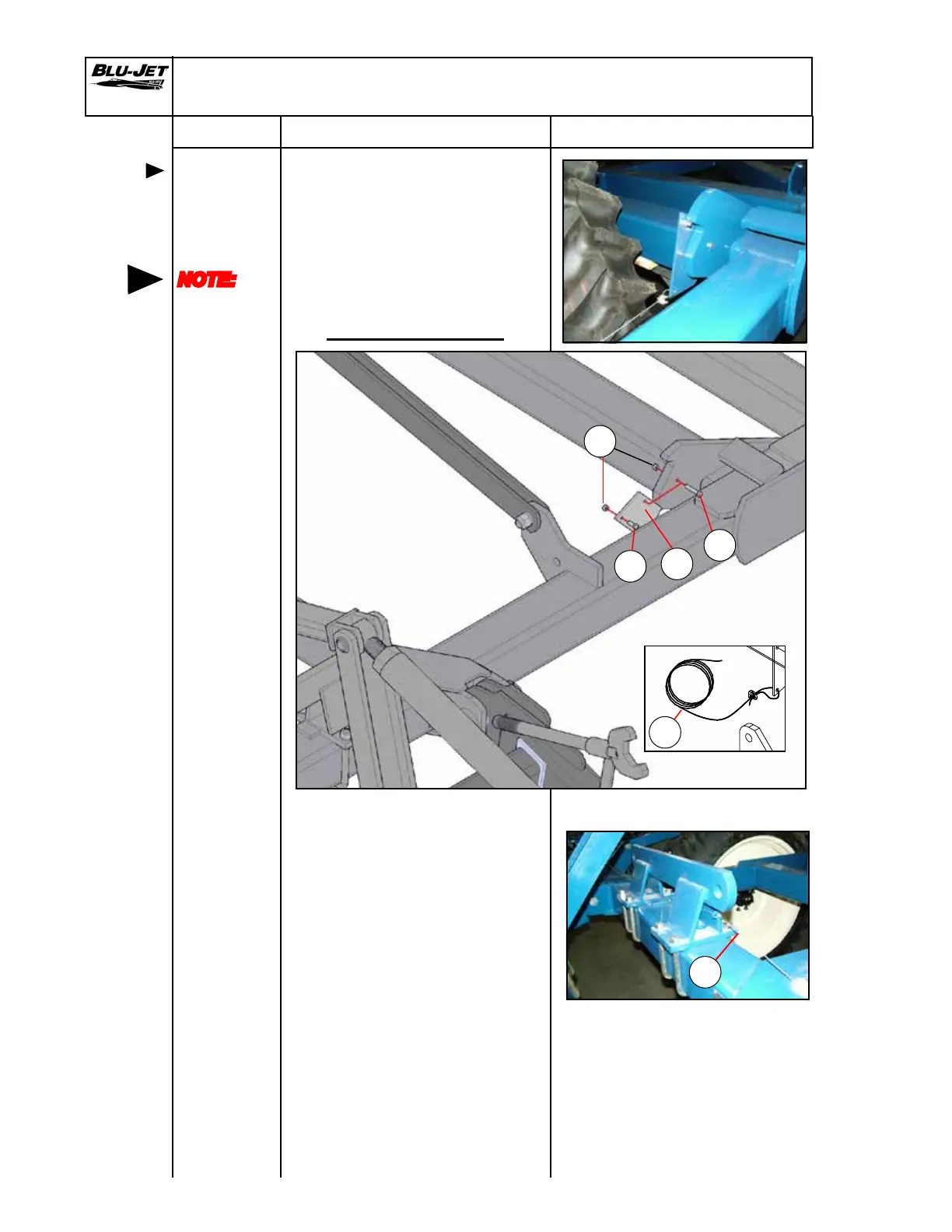

Primary Wing Cable Release
1. Attach (a) (AM4529) primary
wing safety latch trip on
tractor side hinge weldment
with (b) (BP3115) 3/8”
x 2” hex cap screw and
(c) (BP3003) 3/8” hex
lock nut.
Do not tighten completely.
Latch must move freely.
2. Install (d) (BP3006) 3/8” x 1”
hex cap screw in top hole of
latch plate and secure with
(c) (BP3003) 3/8” hex lock
nut.
3. String (e) (AP2872) 3/32” x
144” cable through loops on
cylinder lug and extend
to right-hand hinge
weldment.
4. Repeat latch assembly.
a
Left-hand from the rear
e
d
c
e
