BLU-JET LEGACY - Manual Holder

Task Procedures Illustrations
170
LEGACY

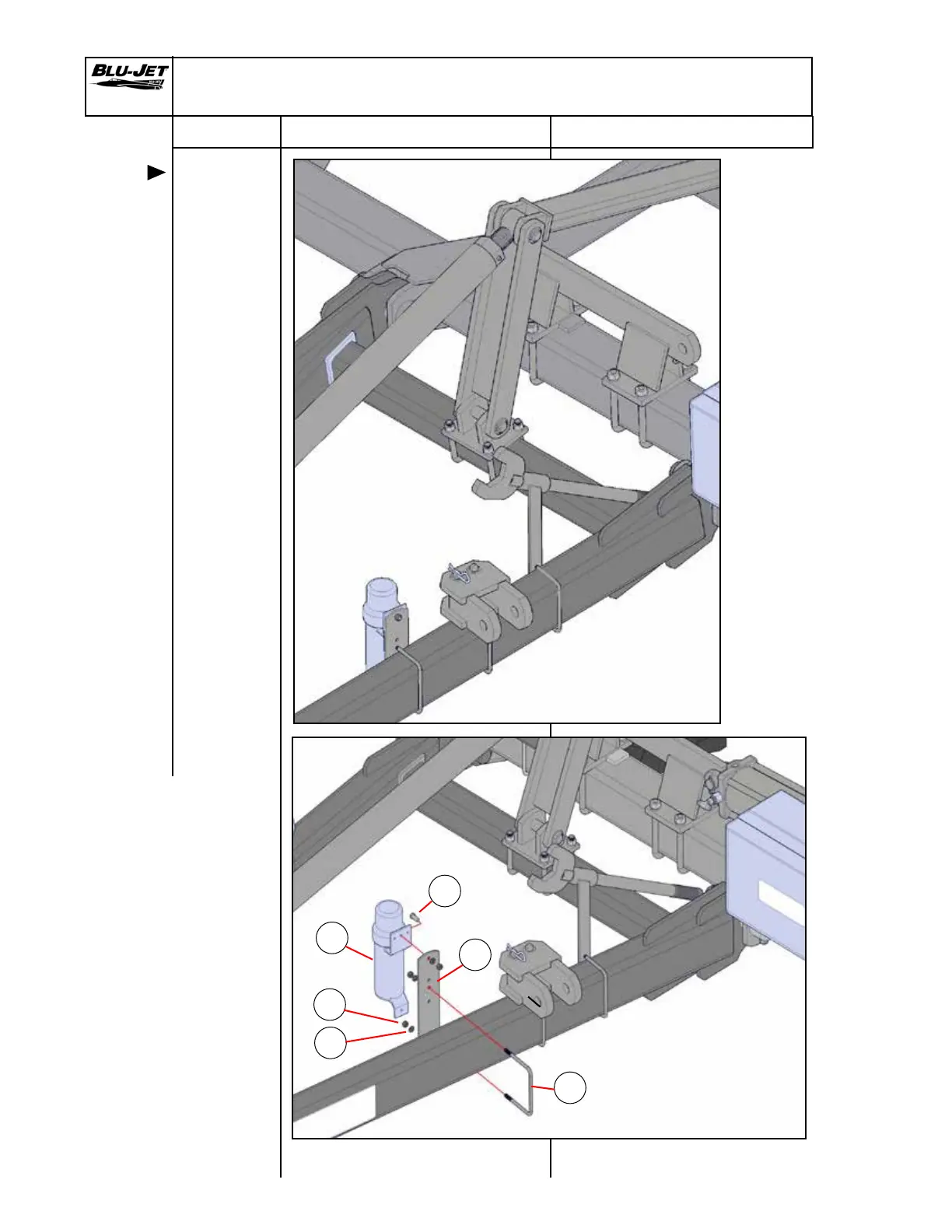

Manual Holder Assembly
Mounting
manual
holder
1. Mount (a) (AP4254)
top of manual holder
to (b) (AM7640) mounting
bracket with (c) (BP3006)
3/8” x 1” hex cap screw.
Secure (d) (BP3002) 3/8”
lock washer and (e) (BP3001)
3/8” hex nut.
2. Attach bracket on tongue
with (f) (BP3045) 3/8”-16
x 6”W x 5”L u-bolt, (d)
(BP3002) 3/8” lock
washers and (e) (BP3001)
3/8” hex nuts.
a
b
d
f
c
e
