SCS 2100 Spring Cushion Assembly and Mounting
SCS 2100
at spring
cushion

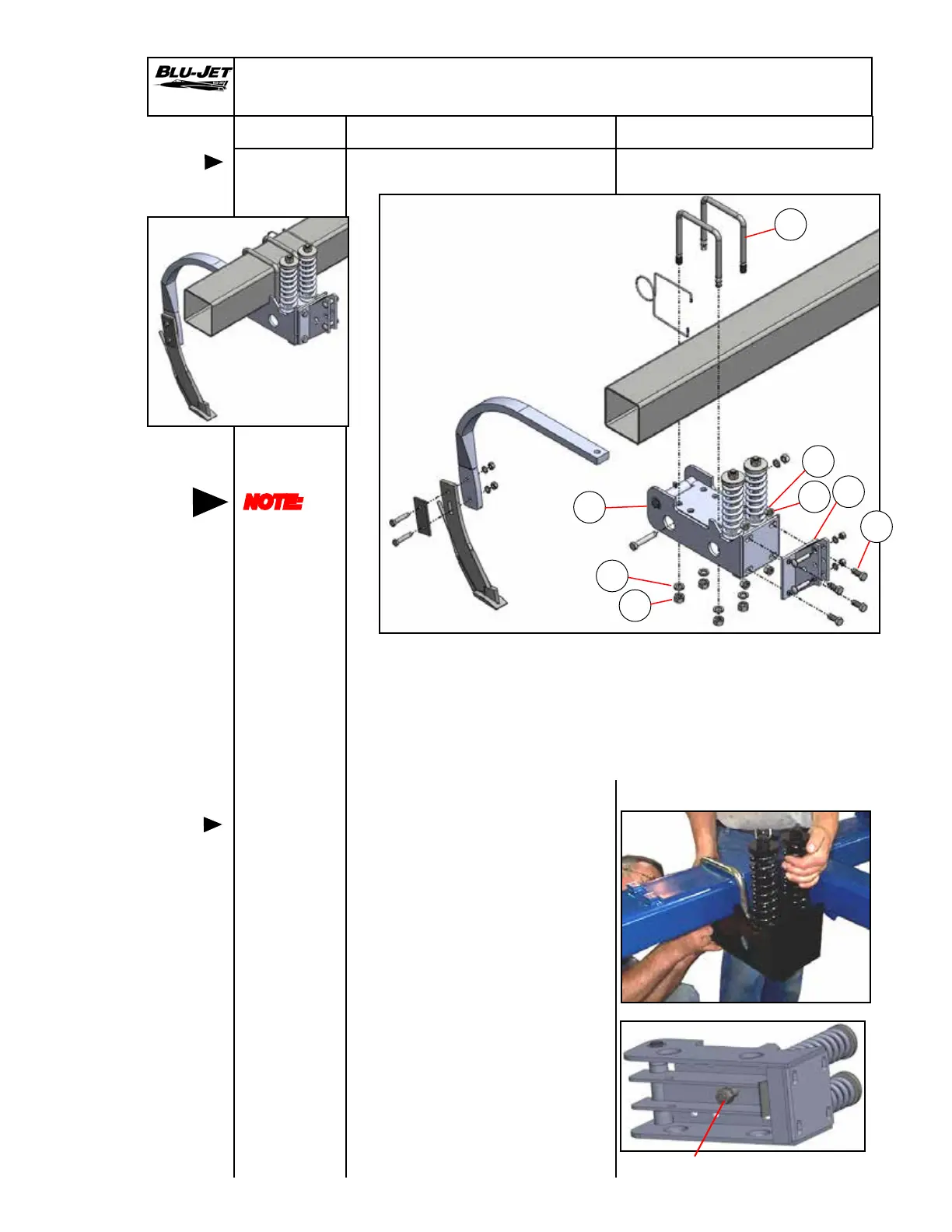

1. SCS 2100 at spring cushion
with coulter parts:
SCS 2100
at spring
cushion
mounting
b
c
g
2. Center on row spacing marks (a)
(AM2189) spring bundle base
from the bottom on frame. Insert
two (h) (BP3350) 3/4”-10 x 6” x
7-7/16” u-bolts into assembly.
Secure with four (d) (BP3035)
3/4” lock washers and (c)
(BP3034) 3/4” hex nuts.
3. Remove hex nut and lock
washer at bottom of assembly
before mounting shank.
Hex nut
a. AM2189 1 Spring bundle base assembly
b. AM2699 1 Bracket, spring bundle atback, 4’ x 6”
c. BP3034 4 Hex, nut 3/4”-10 plated
d. BP3035 4 Washer, lock 3/4”
e. BP3038 4 Nut, hex, 5/8”-11, grade 2
f. BP3039 4 Washer, lock, 5/8” plated
g. BP3097 4 Hex cap screw, 5/8”-11 x 1-1/2”, grade 5 plated
h. BP3350 2 U-bolt, 3/4”-10 x 6” x 7-7/16”, plated
Generic Photo
f
e
a
h
d
NOTE:
No threads
in shear
area when
attaching
knives
