BLU-JET LEGACY - Jack

Task Procedures Illustrations
166
LEGACY

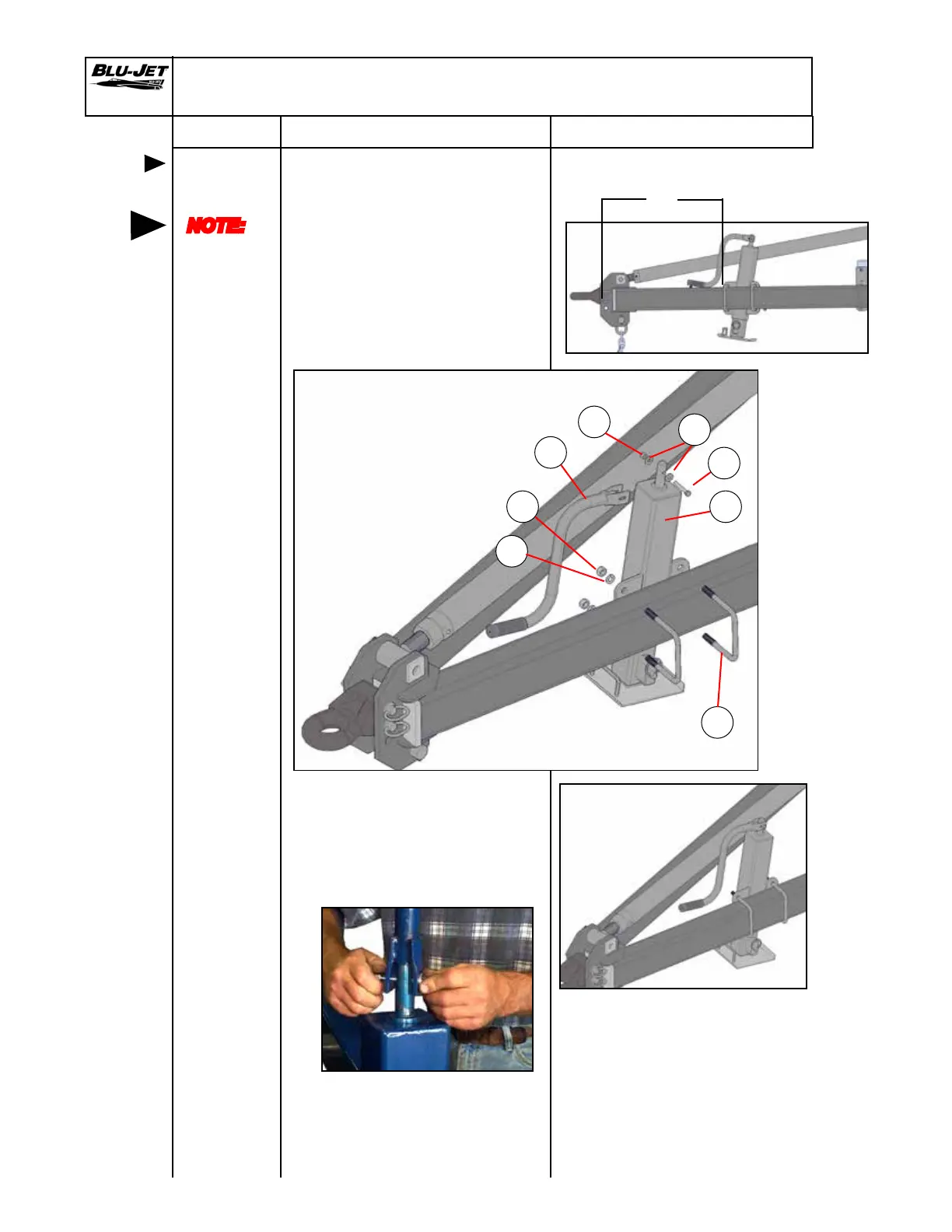

Jack Mounting and Assembly
Mounting
jack
2. Attach (e) (AM2526) jack handle
with (f) (BP3096) 3/8” x 2-1/2”
hex cap screw, two (g)
(BP3015) 3/8” at washers
and (h) (BP3003) 3/8” hex lock
nut.
h
e
1. Position (a) (AM2518)
9TW-25DL Top wing DL jack
on tongue 58-1/2” from hitch
end of tongue weldment.
Insert (b) (BP3347) 5/8” x
4”W x 5-5/8”L u-bolts.
Secure with (c) (BP3039)
5/8” lock washers and (d)
(BP3038) 5/8” hex nuts.
b
ad
NOTE:
Left-hand
and
right-hand
as viewed
from the
rear
c
34”
g
f
