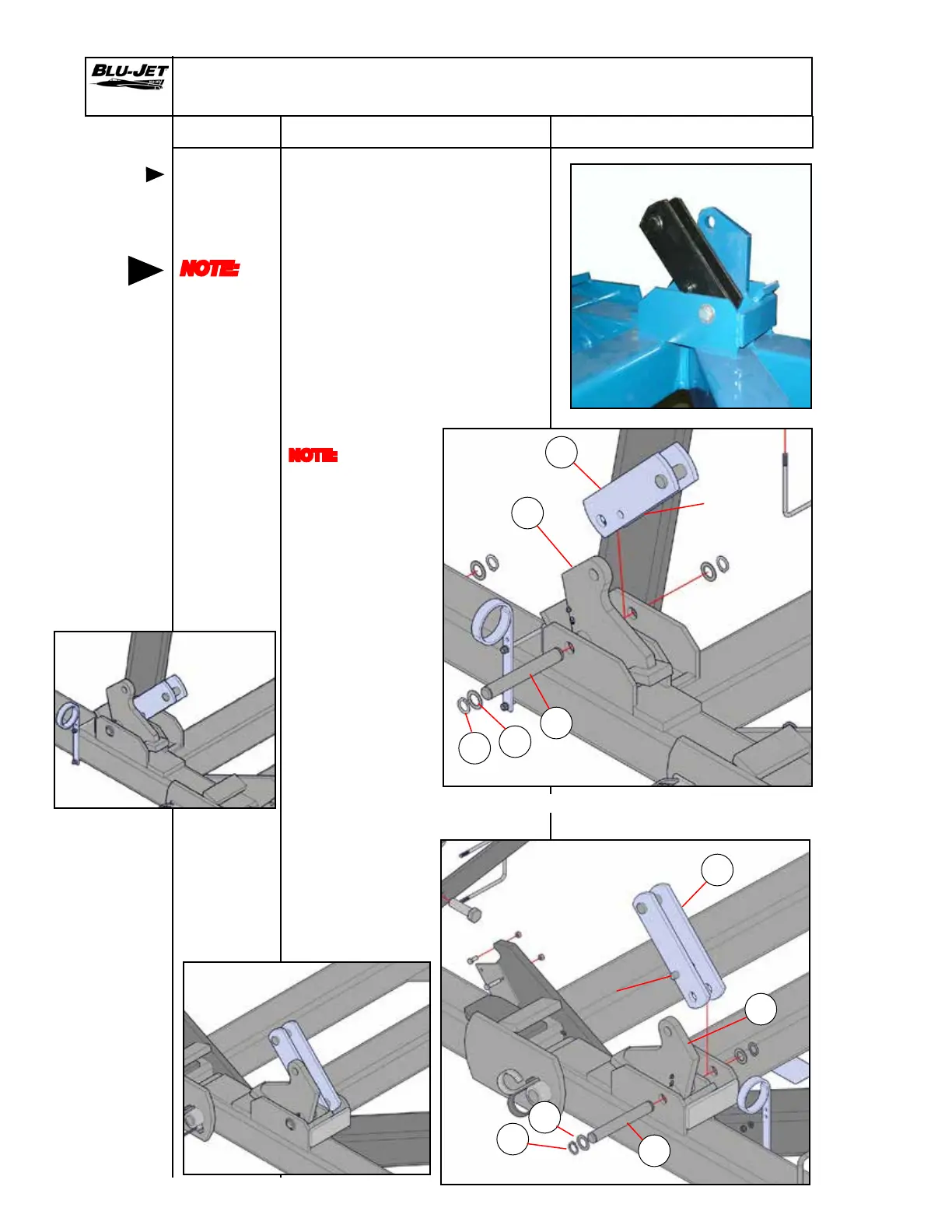

BLU-JET LEGACY - Primary Wing Linkage

Task Procedures Illustrations
172
LEGACY
Primary Wing Linkage
Mounting
primary
wing
linkage
NOTE:
Left-hand
and
right-hand
as viewed
from the
rear
1. Place (a) (BP3249) 1-7/8” OD
x 1-1/4” ID machinery bush-
ing and (b) (AP2711) 1-1/4”
snap ring on (c) (BM3544)
1-1/4” x 9” double grooved pin.
2. Insert (d) (AM4524) rocker
plate into primary wing
weldment. Insert (c) (BM3544)
1-1/4” x 9” double grooved pin
from the tractor side into
weldment through rocker
plate. Place (e) (AM4517)
wing lock in rear side
of weldment.
Right-hand from the rear
Tractor side
Left-hand from the rear
Tractor side
c
b
a
d
e
Stud
Stud
NOTE: the
stud will
point to the
rear on the
right-hand
weldment
and to the
tractor side
on the
left-hand
weldment.
Continue
inserting pin
through
wing lock.
3. Secure with
(a) (BP3249)
1-7/8” OD x
1-1/4” ID
machinery
bushing and
(b) (AP2711)
1-1/4” snap
ring.
e
d
b
a
c
