BLU-JET LEGACY - Coulter; Shank; With Hub

225
Task Procedures Illustrations
LEGACY

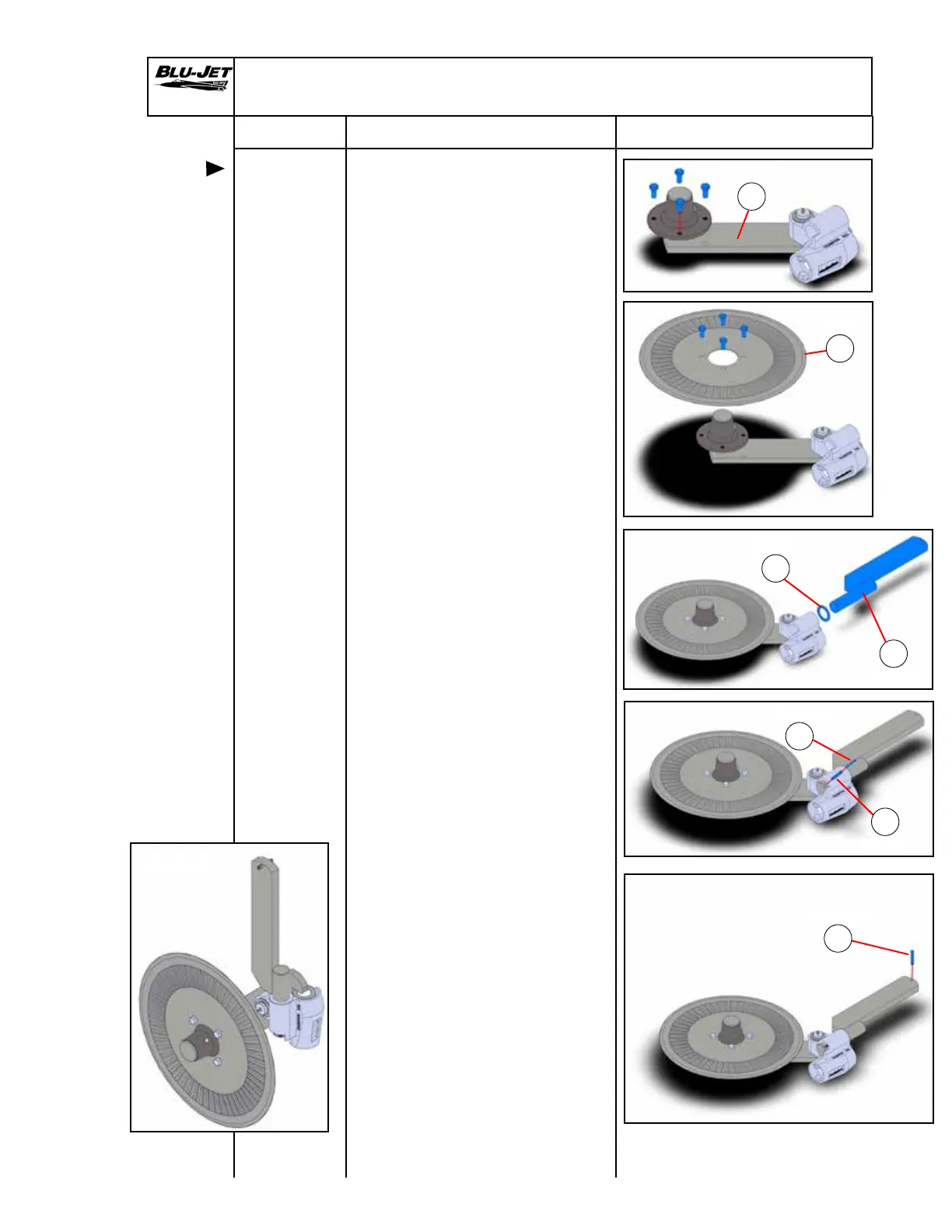

Coulter Assembly
1. Remove hex cap screws from
hub (a) (AM2799) coulter arm
with hub and knee casting
assembly.
2. Place (b) (AP2701) 20” (51 cm)
uted coulter blade on coulter
assembly and replace hex
cap screws.
3. Install (c) (BP3205) 2-1/2” (6,4 cm)
OD x 1-3/4” (4,5 cm) ID
machinery bushing over (d)
(AM2735) 16” (41 cm) coulter
shank weldment.
4. Insert the 16” (41 cm) coulter
shank into coulter assembly.
Start (e) (BP3519) 3/8” x 2-1/2”
(10 mm x 6,4 cm) roll pin in
base of coulter shank.
Insert the (f) (BP3534) 7/32”
x 2/1/2” (5,1 mm x 6,4 cm)
roll pin in the end of the 3/8”
(10 mm) roll pin and drive
both pins together. Leave an
equal amount of pin on each
sides of the shank.
5. Install the (g) (BP3162) 3/8” x
2” (10 mm x 5,1 cm) roll pin
through the shank weldment
top hole.
AAM2728
Super 1200 coulter 1 row
Installing
roll pin in
shank
Preparing
coulters
for
mounting
AP2701
b
BP3205
c
AM2735
d
BP3519
e
BP3534
f
AP2799
a
BP3162
g
AAM2728
