Task Procedures Illustrations
226
LEGACY

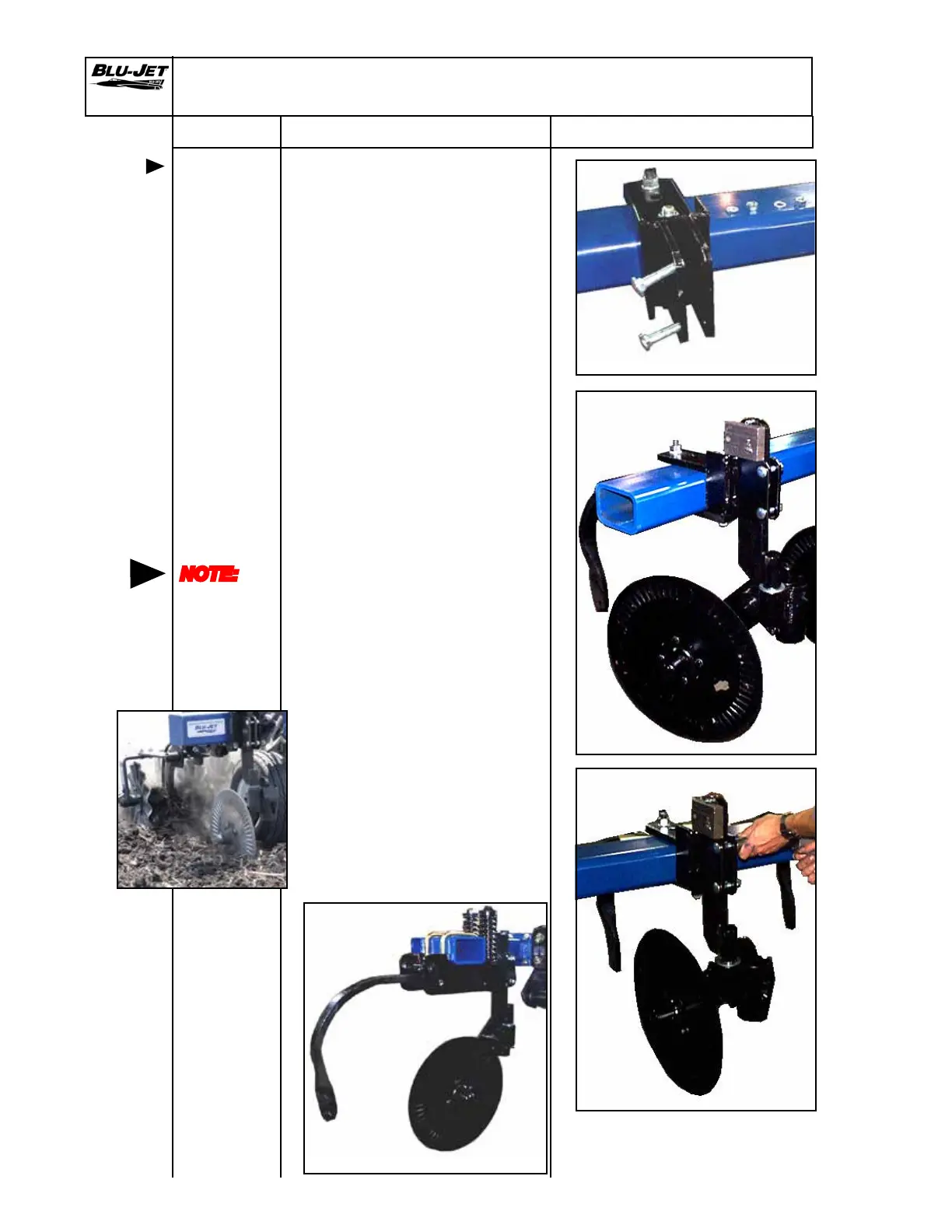

6. Insert two (BP3229) 1/2” x
2-1/2” carriage bolts in
shank assembly.
7. Install coulter assembly in
bracket slot. Let coulter
shank rest on top roll pin.
Insert top carriage bolt. Push
coulter shank into bracket
and insert bottom carriage
bolt. Place (BP3043) 1/2”
lock washer and (BP3042)
1/2” hex nut on each
carriage bolt.
8. Raise coulter shank up and
install a 4” spacer block
under roll pin.
This is a starting point.
9. Tighten 1/2” hex nuts and
remove spacer block.
10. The same steps are use
to mount coulter assembly
on SCS spring cushion at-
back bracket.
Mounting
coulter
assembly
Coulter Mounting
Generic Photo
Generic Photo
Generic Photo
Generic Photo
NOTE:
Coulter will
require
nal
working
depth
adjustment
in the eld.
