BLU-JET LEGACY - Tongue Linkage; Generic Photo

161
Task Procedures Illustrations
LEGACY
4. Loosen turnbuckle nut to
lower the tongue cylinder
linkage into position.
Mounting
tongue
cylinder
linkage

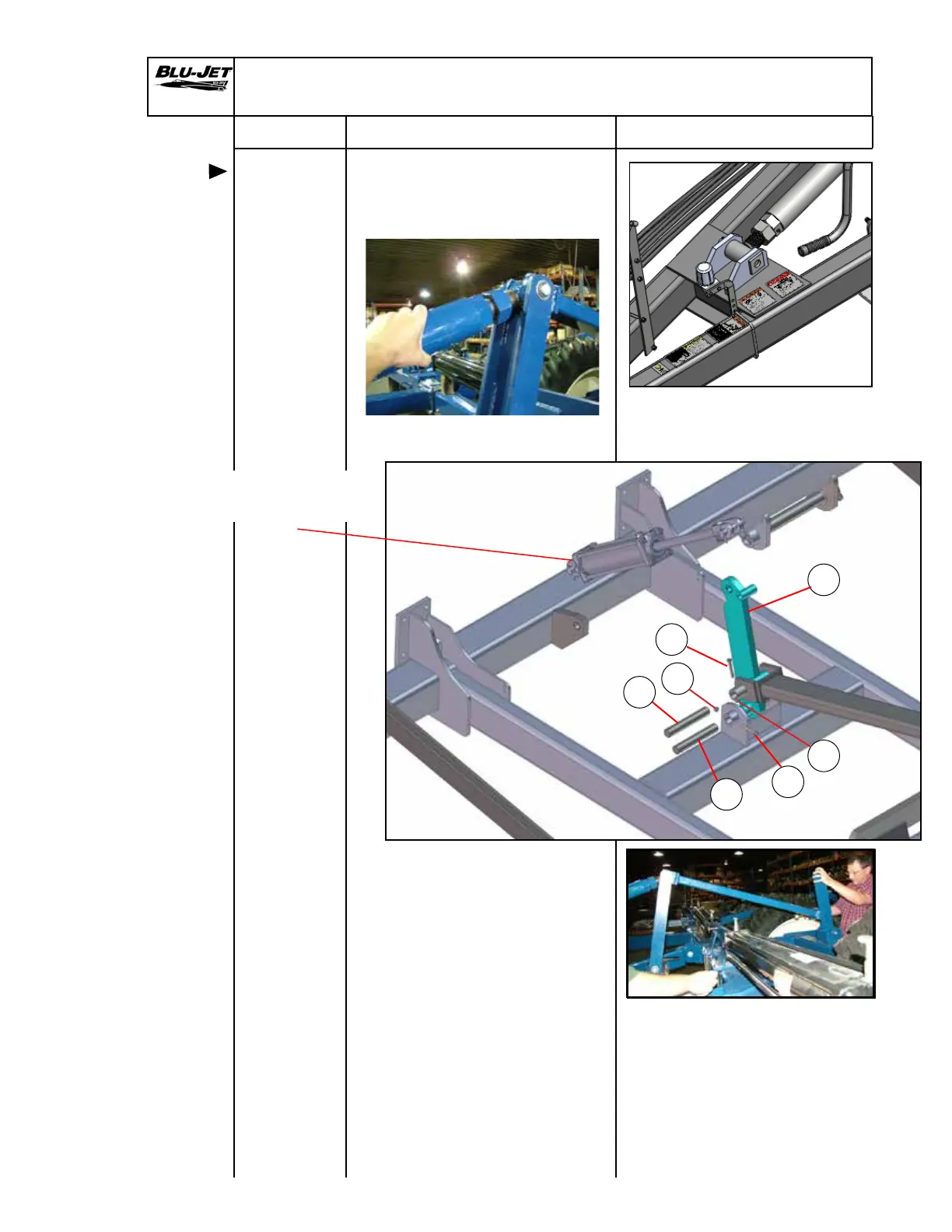

Tongue Linkage Assembly
5. Mount (a) (AM6182) tongue
cylinder arm linkage to main
frame weldment with (b)
(BM3465) 1-1/4” x 7-3/4” pin
with 13/32” hole.
Secure pin with (c) (BP3096)
3/8” x 2-1/2” hex cap screw
and (d) (BP3003) 3/8” hex
lock nut.
6. Raise tongue cylinder
linkage and connect to arm
with (b) (BM3465) 1-1/4” x
7-3/4” pin with 13/32” hole.
Secure pin with (c) (BP3096)
3/8” x 2-1/2” hex cap screw
and (d) (BP3003) 3/8”
hex lock nut.
(DP4484) 3-1/2” x 12”
Economy Model
c
Generic Photo
a
b
d
c
c
b
d
