Task Procedures Illustrations
162
LEGACY
Mounting
tongue
cylinder
linkage
cylinder

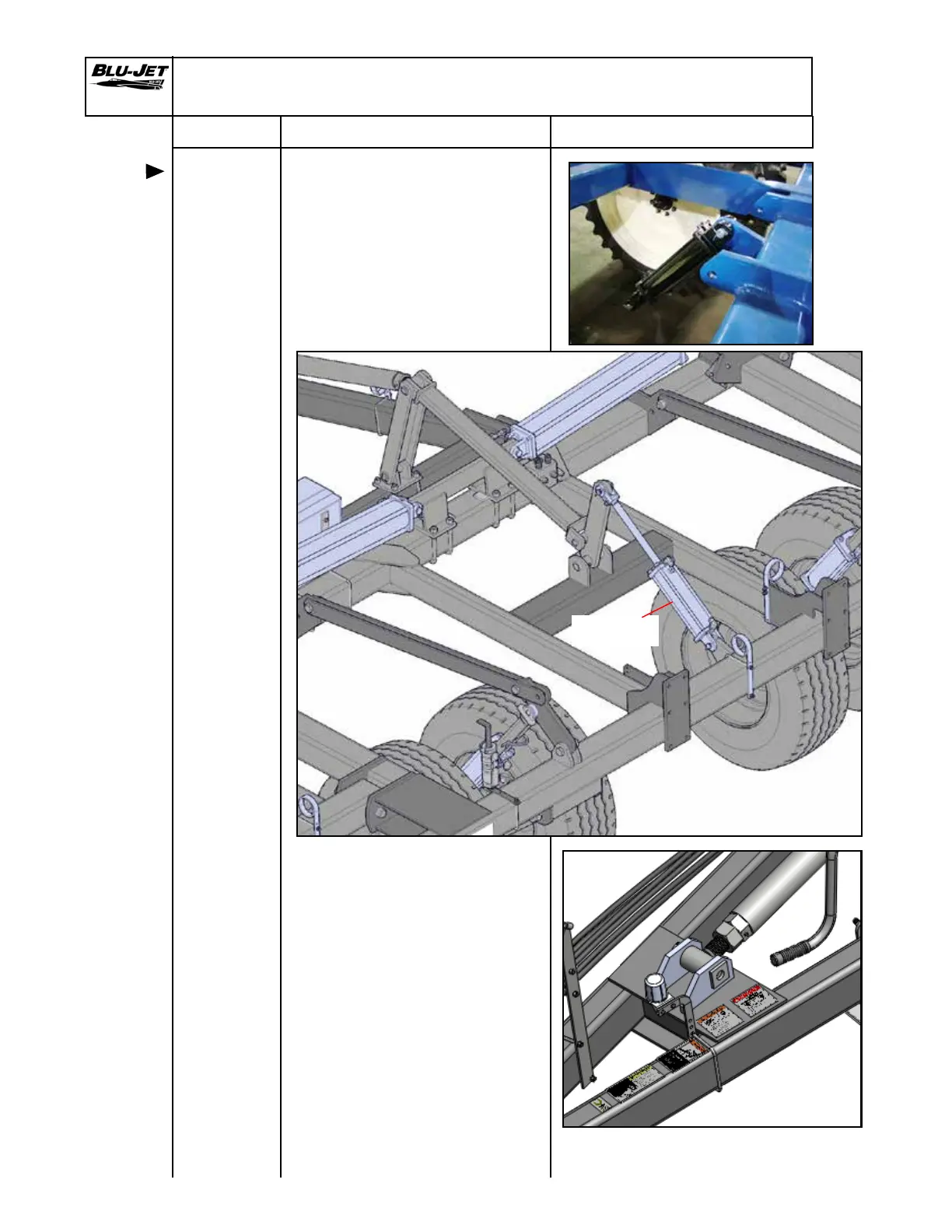

Tongue Linkage Assembly
7. Mount (DP4485) 3-3/4” x 12”
rephase cylinder to main
frame weldment with
cylinder pin. (Ports up)
8. Loosen plugs and extend
rod to cylinder arm.
9. Adjust turnbuckle if cylinder
rod and arm do not match up.
10. Secure cylinder rod to arm
with cylinder pin.
DP4485
3-3/4” x 12”
