Task Procedures Illustrations
192
LEGACY

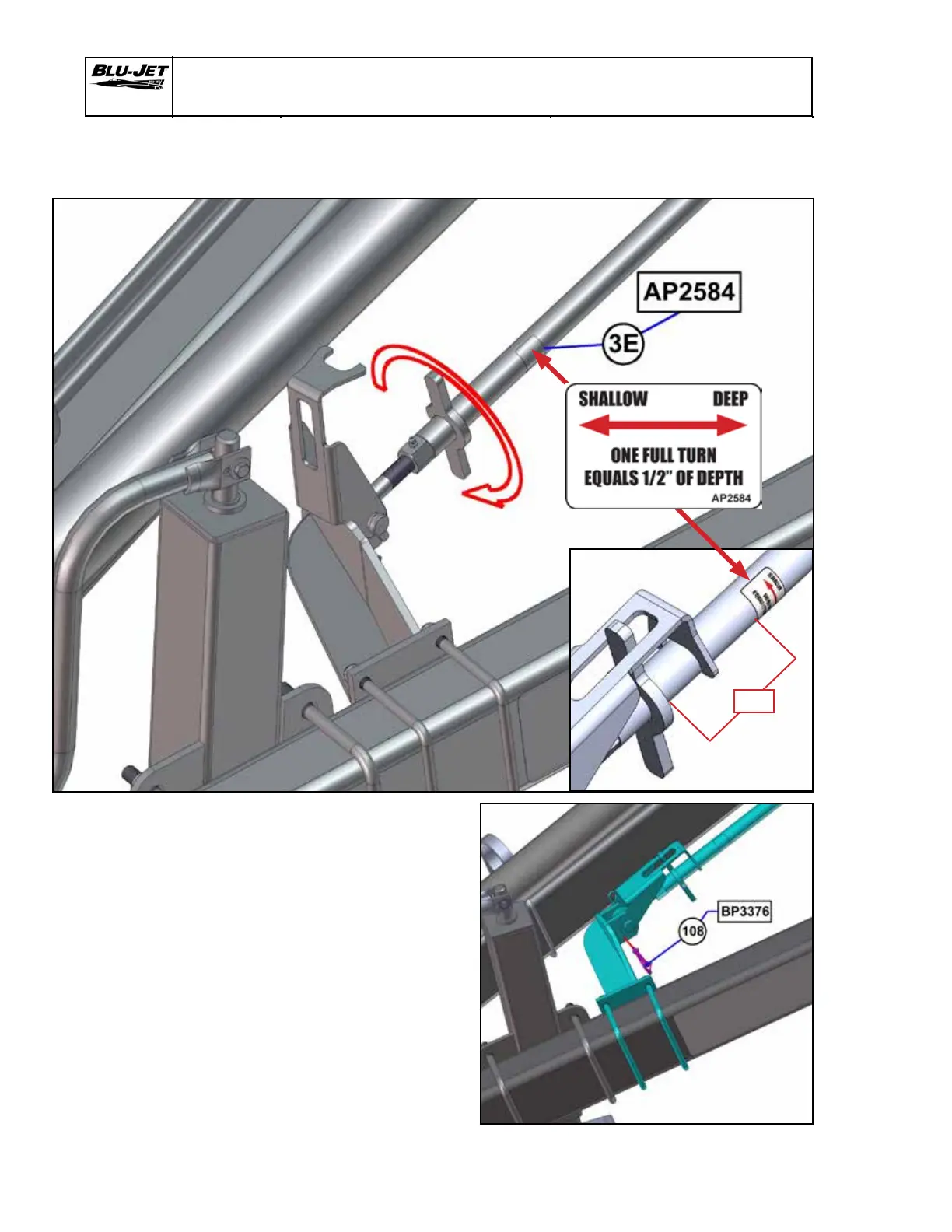

DEPTH ADJUSTMENT
1. One complete revolution equals 1/2” of
depth increase.
DEPTH DECAL
1. Install (3D) (AP2584) depth control decal 4.5 in
from handle.
LOCKING DEPTH ADJUSTMENT
LINKAGE
1. Rotate depth control adjuster latch
over handle and lock in place with
(108) (BP3376) 1/4” x 2” wire retaining
4.5”
Primary Wing Left-hand Area of Bundle
Depth Control Assembly
To Next Page
