189
Task Procedures Illustrations
LEGACY
Primary Wing Left-hand Area of Bundle
Depth Control Assembly

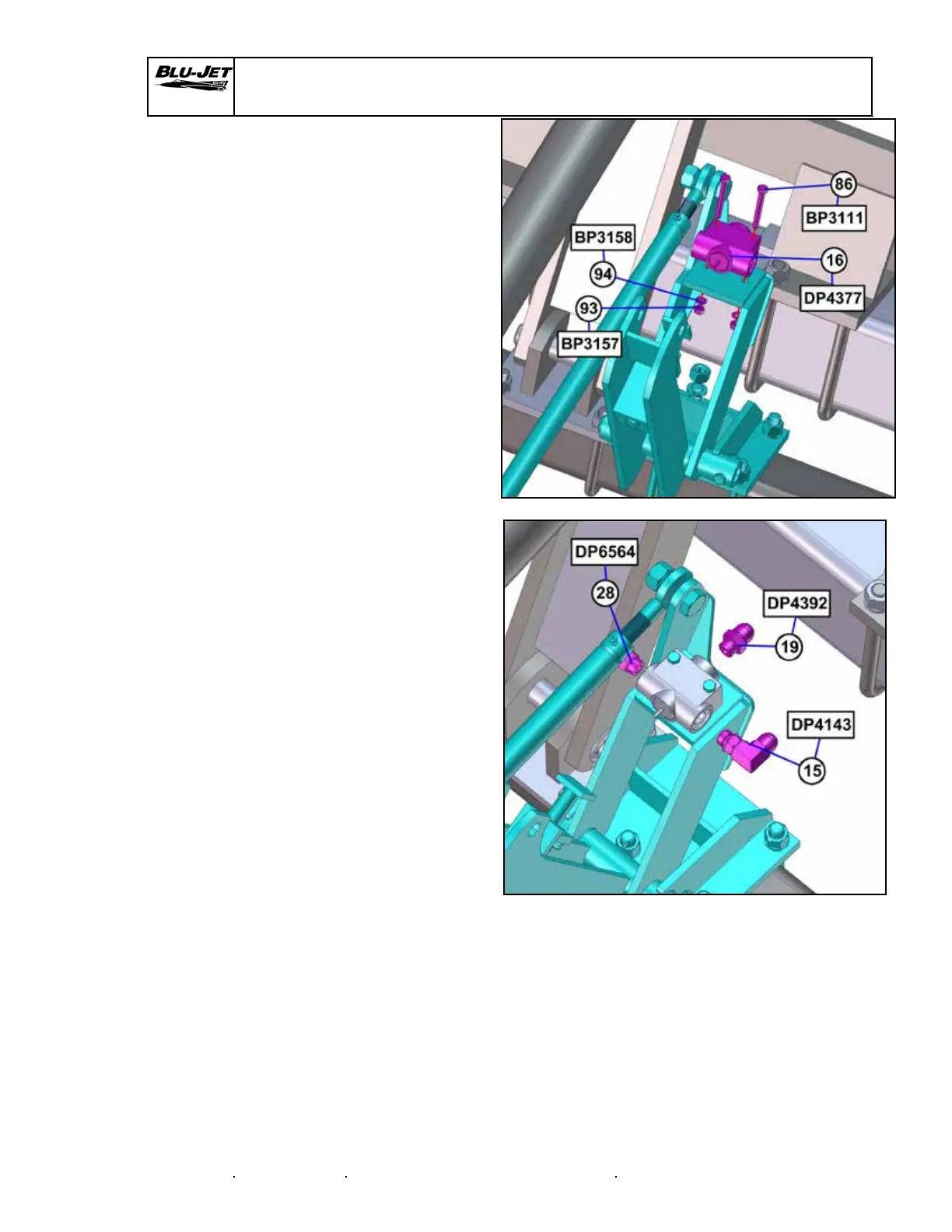

ATTACHING REMOTE STROKE
VALVE CONTROL
1. Attach (16) (DP4377) remote stroke control
valve to (40) depth control valve arm with
(86) (BP3111) 5/16” x 2-1/2” hex cap screws,
(94) (BP3158) 5/16” lock washers and (93)
(BP3157) 5/16” hex nuts.
INSTALLING HYDRAULIC FITTINGS
1. Install (15) (DP4143) 10MJC-8MSAE 90
degree adapter, (19) (DP4392) 8MSAE-10MJIC
straight adapter and (28) (DP6564) 8MSAE
hex plug as pictured.
