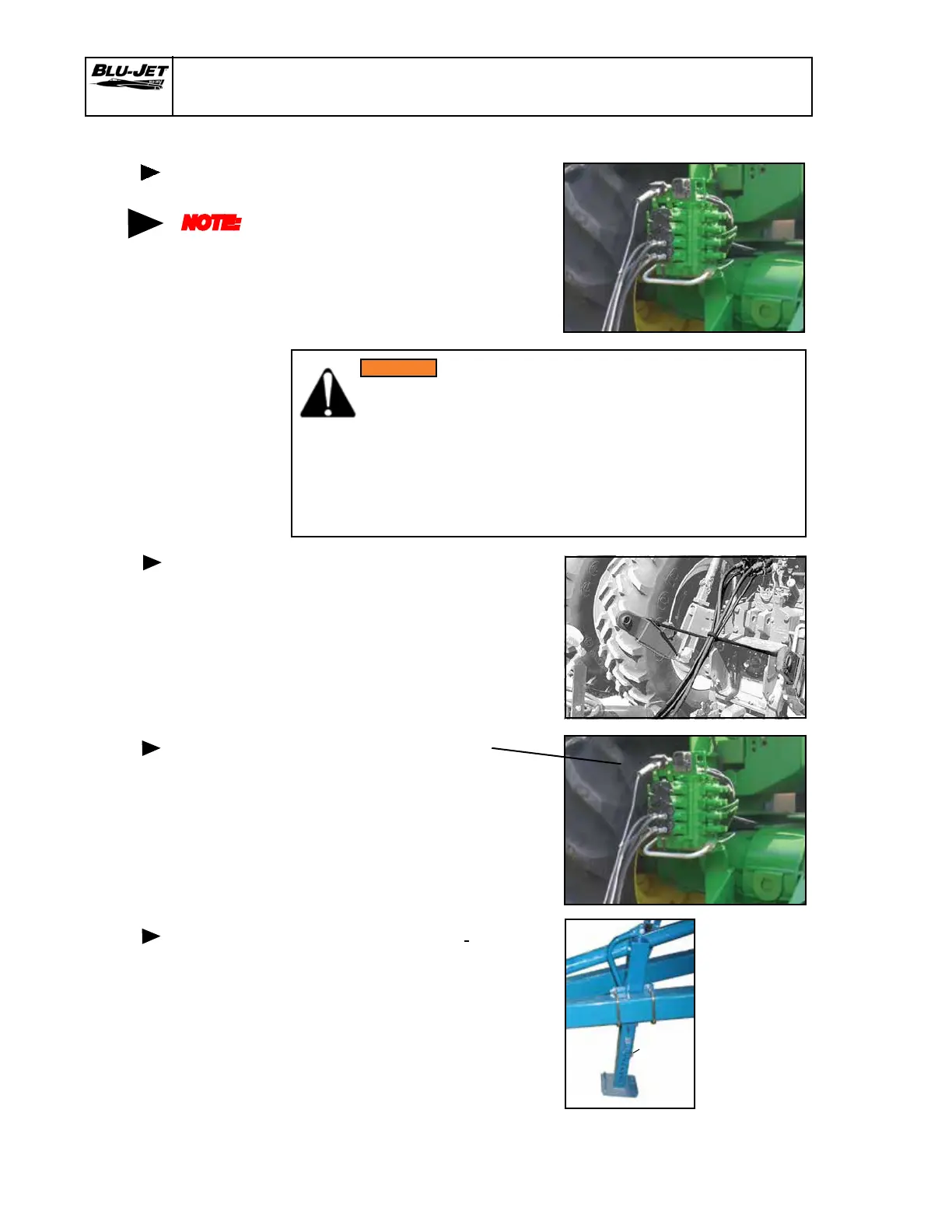

LEGACY
Operating Instructions
Remote
hydraulic
5. Connect the toolbar hydraulic
hoses to the tractor remote
couplers. The 1/2” hoses
supply oil to the toolbar lift
cylinders. The 3/8” hoses
supply oil to the wing fold
cylinders.
NOTE:
Always
connect the
hoses so
the toolbar
raises when
the tractor
remote con-
trol lever is
moved rear-
ward and
lowers when
the lever
is moved
forward.
6. It may be necessary to tie
the hydraulic hoses up to
keep them away from the
hitch area. A tarp strap
around the hoses and
between the two point arms
works well.
7. Attach 7 pin electrical
harness before road
transport.
8. Lower the jack and pull
ring on drop leg jack
plunger and raise the sand
pad off the ground. Secure
plunger in holes.
I
MPORTANT: Always lower the
jack stand to the ground before
disconnecting the tool bar from the
tractor.
Remote
hydraulic
Attaching
electrical
harness
Jack stand
Ring
WARNING: Hydraulic uid escaping under pressure can have
enough force to penetrate the skin. Hydraulic uid may also
infect a minor cut or opening in the skin. If injured by escaping
uid, see doctor at once. Serious infection or reaction can result
if medical treatment is not given immediately. Make sure all
connections are tight and that hoses and lines are in good
condition before applying pressure to the system. Relieve all
pressure before disconnecting the lines or performing other work
on the hydraulic systems.
