13
LEGACY

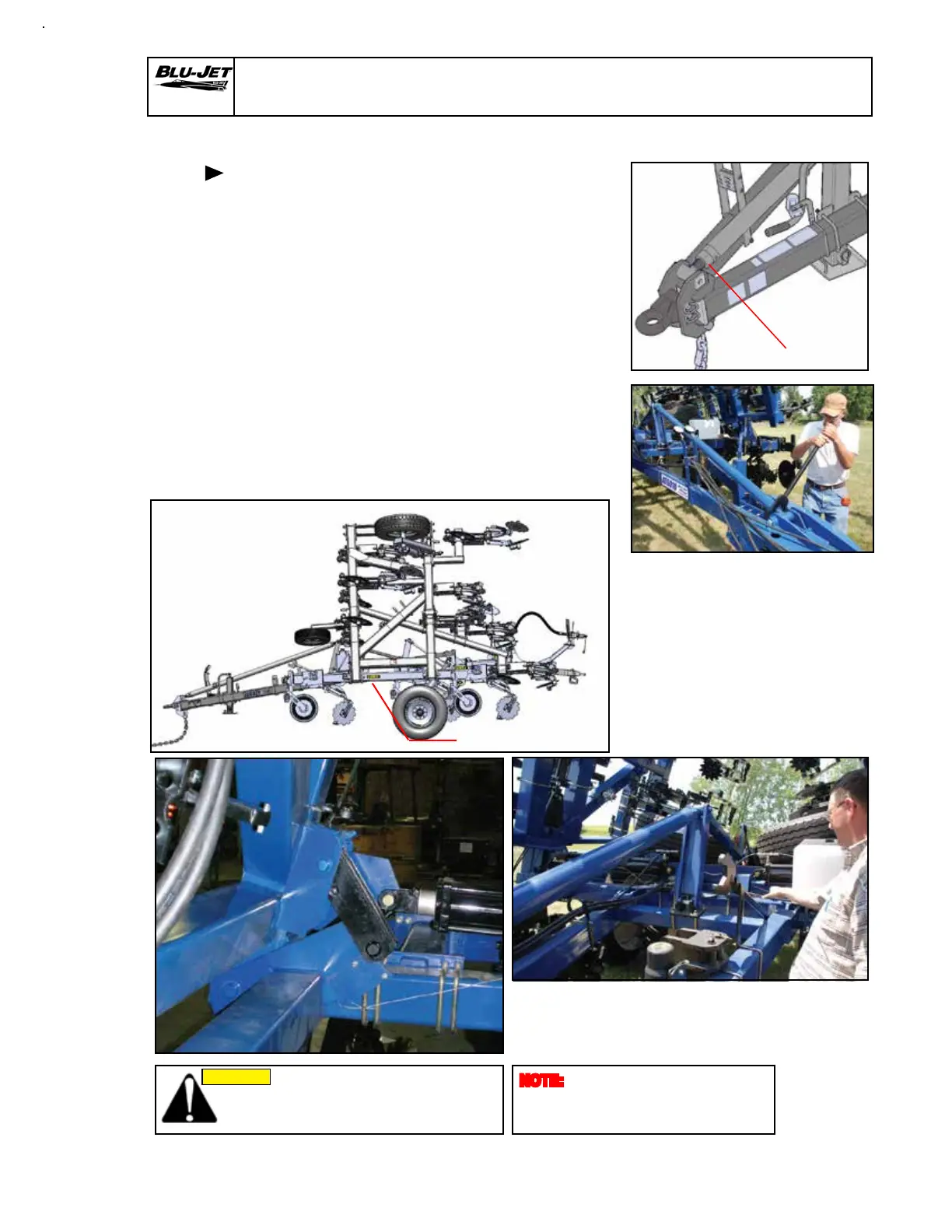

9. Before leveling the machine
the tire pressure should be
checked.
Inate center section lugged
tractor tires to 51 P.S.I. Maximum
Truck tires 95 P.S.I. Maximum
Before beginning operation of
this machine the main frame
must be level.
Place tool bar on level surface.
Use the turnbuckle wrench to
loosen the lower turnbuckle
jam nut. Adjust turnbuckle with
wrench until the main frame is
level front to back. After making
the necessary adjustment,
lock turnbuckle with jam nut.
Operating Instructions
Leveling
Machine
Main Frame
10. Unlatch primary wing latch
with the cable release located
on the front of the tool bar
before unfolding tool bar.
Caution: To prevent serious accident or injury do
not remove wing latch cable release mecha-
nism. Wing fall may result during road transport.
NOTE: Cable must be free. Do not place
hydraulic hoses, EVA hoses or ties around
the cable.
Jam Nut
CAUTION
To Next Page
