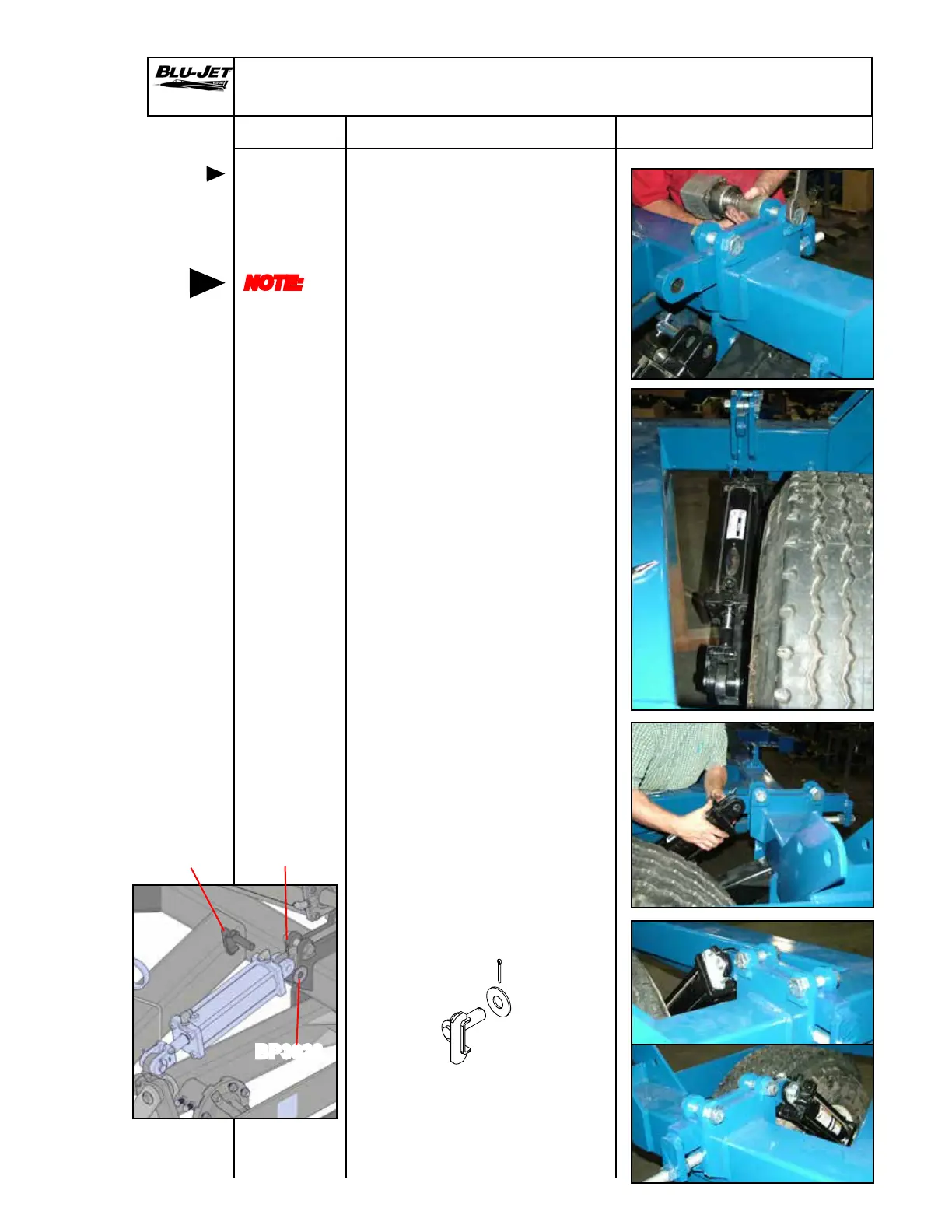

Primary Wing Gauge Wheel Assembly
Mounting
primary
gauge
wheels
NOTE:
Left-hand
and right-
hand as
viewed
from the
rear
15. Tighten 1” hex nuts.
16. Attach (DP4485) 3-3/4” x 12”
rephase cylinder to wheel
leg with cylinder pin.
(Ports up)
17. Open cylinder plugs and
extend butt end to cylinder
lug.
18. Insert (BM3559) 1” x 3” clevis
pin with anti-rotation.
19. Secure clevis pin with (BP3028)
1” at washer and (BP3511)
3/16” x 1-3/4” cotter pin.
BM3559
BP3028
BP3511
