BLU-JET LEGACY - Page 85

82
LEGACY

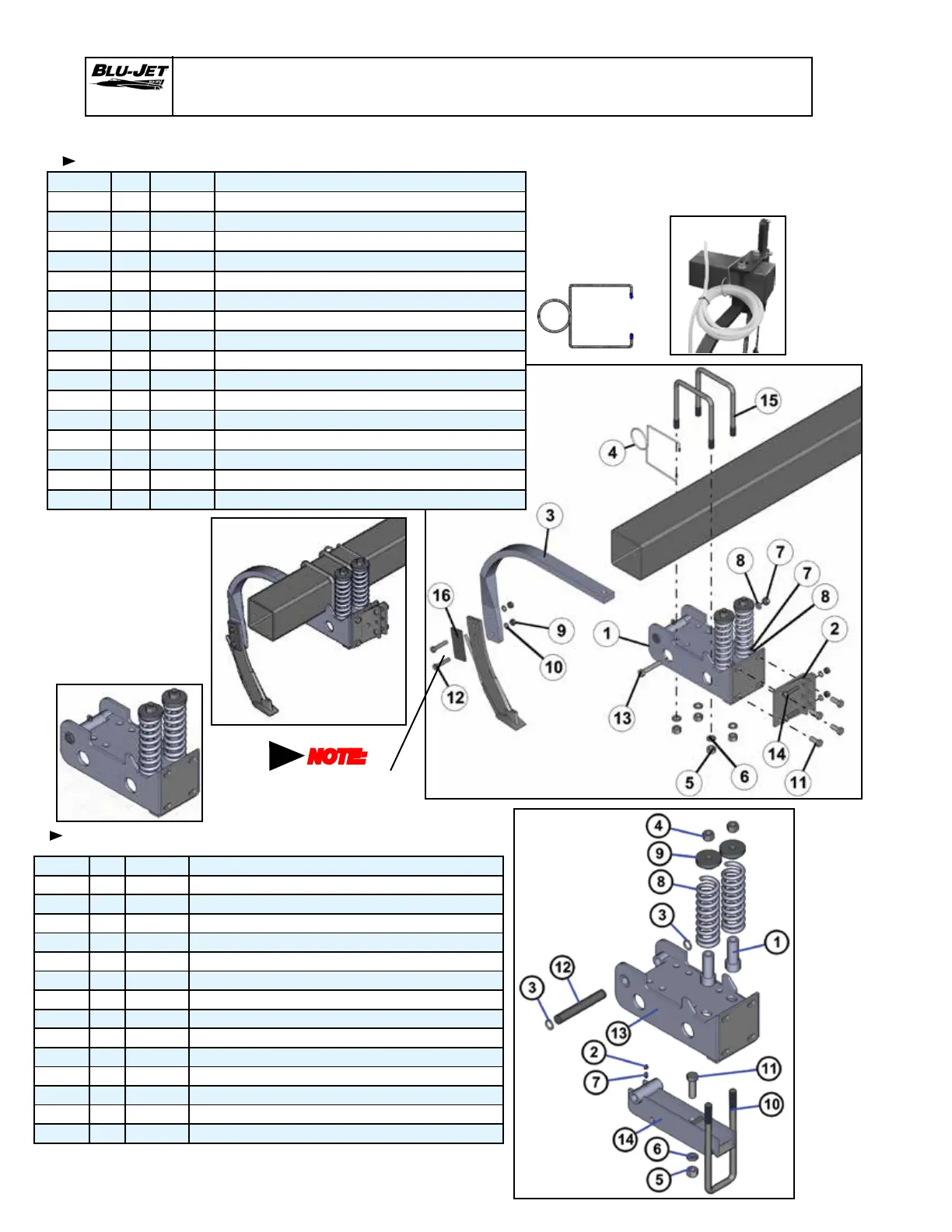

AAM2133 1” x 2” SCS With Shank & Coulter
6” x 6” Hose Retainer,
(AP2283-1) Place
at each shank to
secure coiled length
of 3/8” EVA hose as
shown.
NOTE:
No threads
in shear
area
AAM2133 Row Clamp 1” x 2” SCS With Shank & Coulter Mount 6” x 6”
AM2189 Assembly, Spring Bundle, 1” x 2” Shank
BOM ID Qty Item No Description
1 2 AM2156 SPRING SLEEVE
2 1 AP2166 CAPPLUG, GC-5 GREASE ZERK
3 2 AP2407 SNAP RING, 1” EXTERNAL, HEAVY DUTY
4 2 BP3027 NUT, HEX LOCK, 3/4”-10, GRADE 2, PLATED
5 1 BP3034 NUT, HEX, 3/4”-10, GRD 2, PLATED
6 1 BP3035 WASHER, LOCK, 3/4”, PLATED
7 1 BP3072 GREASE ZERK, 1/4”-28
8 2 BP3104 SPRING, 2.64” OD X 8.625” OAL, .4375” WIRE DIAMETER
9 2 BP3105-1 SPRING PLUG
10 1 BP3106 U-BOLT, 3/4”-10 X 3-1/4”W X 11-3/4”L
11 1 BP3140 HEX CAP SCREW, 3/4”-10 X 2-1/2”, GRADE 5, PLATED
12 1 EM2959 PIVOT PIN, 1” X 6-13/16”
13 1 EM2978 SPRING BUNDLE BASE
14 1 EM3074 INSERT, 1 X 2 SHANK
BOM ID Qty Item No Description
1 1 AM2189 ASSEMBLY, SPRING BUNDLE, 1 X 2 SHANK
2 1 AM2699 BRACKET, SPRING BUNDLE FLATBACK, 4” X 6”
3 1 AP2063 SHANK, 1” X 2” FLAT
4 1 AP2283-1 HOSE RETAINER, 6” X 6”
5 4 BP3034 NUT, HEX, 3/4”-10, GRADE 2, PLATED
6 4 BP3035 WASHER, LOCK, 3/4”, PLATED
7 5 BP3038 NUT, HEX, 5/8”-11, GRADE 2
8 5 BP3039 WASHER, LOCK, 5/8”, PLATED
9 4 BP3042 NUT, HEX, 1/2”-13, GRADE 2, PLATED
10 4 BP3043 WASHER, LOCK, 1/2”, PLATED
11 4 BP3097 HEX CAP SCREW, 5/8”-11 X 1-1/2”, GRADE 5, PLATED
12 2 BP3128 HEX CAP SCREW, 1/2”-13 X 2-1/2”, GRADE 5, PLATED
13 1 BP3135 HEX CAP SCREW, 5/8”-11 X 3-1/2”, GRADE 5, PLATED
14 2 BP3229 BOLT, CARRIAGE, 1/2”-13 X 2-1/2”, GRADE 5, PLATED
15 2 BP3350 U-BOLT, 3/4”-10 X 6”W X 7-11/16”L, PLATED
16 1 CM2311 KNIFE WASHER
