LEGACY

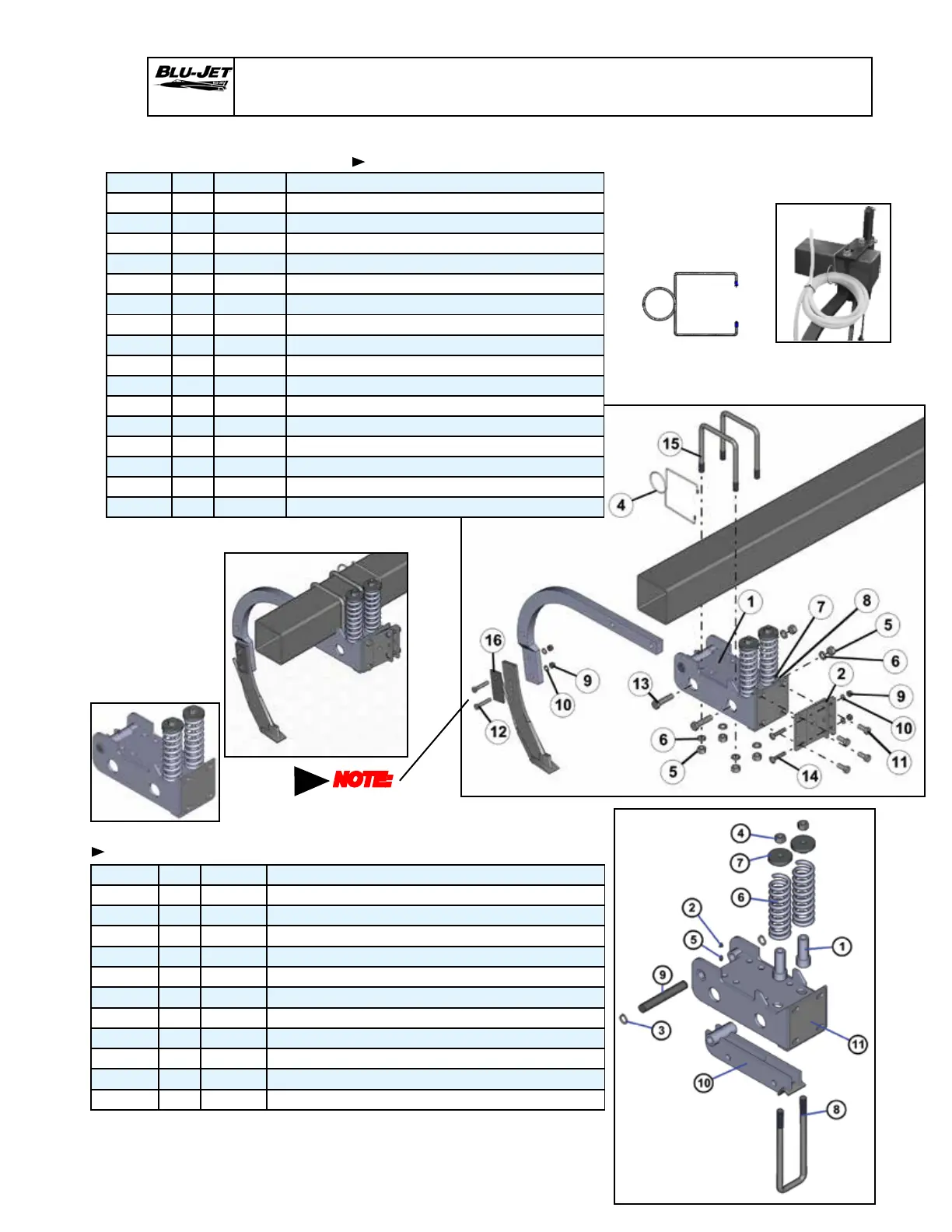

AAM2134 1-1/4” SCS With Shank & Coulter
AM2155 Assembly, Spring Bundle, Edge Bent Shank
AAM2134 Row Clamp 1-1/4” Edge Bent SCS With Shank & Coulter Mount 6” x 6”
NOTE:
No threads
in shear
area
BOM ID Qty Item No Description
1 2 AM2156 SPRING SLEEVE
2 1 AP2166 CAPPLUG, GC-5 GREASE ZERK
3 2 AP2407 SNAP RING, 1” EXTERNAL, HEAVY DUTY
4 2 BP3027 NUT, HEX LOCK, 3/4”-10, GRADE 2, PLATED
5 1 BP3072 GREASE ZERK, 1/4”-28
6 2 BP3104 SPRING, 2.64” OD X 8.625” OAL, .4375” WIRE DIAMETER
7 2 BP3105-1 SPRING PLUG
8 1 BP3106 U-BOLT, 3/4”-10 X 3-1/4”W X 11-3/4”L
9 1 EM2959 PIVOT PIN, 1” X 6-13/16”
10 1 EM2977 INSERT, EDGE BENT SHANK
11 1 EM2978 SPRING BUNDLE BASE
6” x 6” Hose Retainer,
(AP2283-1) Place
at each shank to
secure coiled length
of 3/8” EVA hose as
shown.
BOM ID Qty Item No Description
1 1 AM2155 ASSEMBLY, SPRING BUNDLE, EDGE BENT SHANK
2 1 AM2699 BRACKET, SPRING BUNDLE FLATBACK
3 1 AP2125 SHANK, 1-1/4” X 2” EDGE BENT
4 1 AP2283-1 HOSE RETAINER, 6” X 6”
5 6 BP3034 NUT, HEX, 3/4”-10, GRADE 2, PLATED
6 6 BP3035 WASHER, LOCK, 3/4”, PLATED
7 4 BP3038 NUT, HEX, 5/8”-11, GRADE 2
8 4 BP3039 WASHER, LOCK, 5/8”, PLATED
9 4 BP3042 NUT, HEX, 1/2”-13, GRADE 2, PLATED
10 4 BP3043 WASHER, LOCK, 1/2”, PLATED
11 4 BP3097 HEX CAP SCREW, 5/8”-11 X 1-1/2”, GRADE 5, PLATED
12 2 BP3128 HEX CAP SCREW, 1/2”-13 X 2-1/2”, GRADE 5, PLATED
13 2 BP3141 HEX CAP SCREW, 3/4”-10 X 3”, GRADE 5, PLATED
14 2 BP3229 BOLT, CARRIAGE, 1/2”-13 X 2-1/2”, GRADE 5, PLATED
15 2 BP3350 U-BOLT, 3/4”-10 X 6”W X 7-11/16”L, PLATED
16 1 CM2311 KNIFE WASHER
