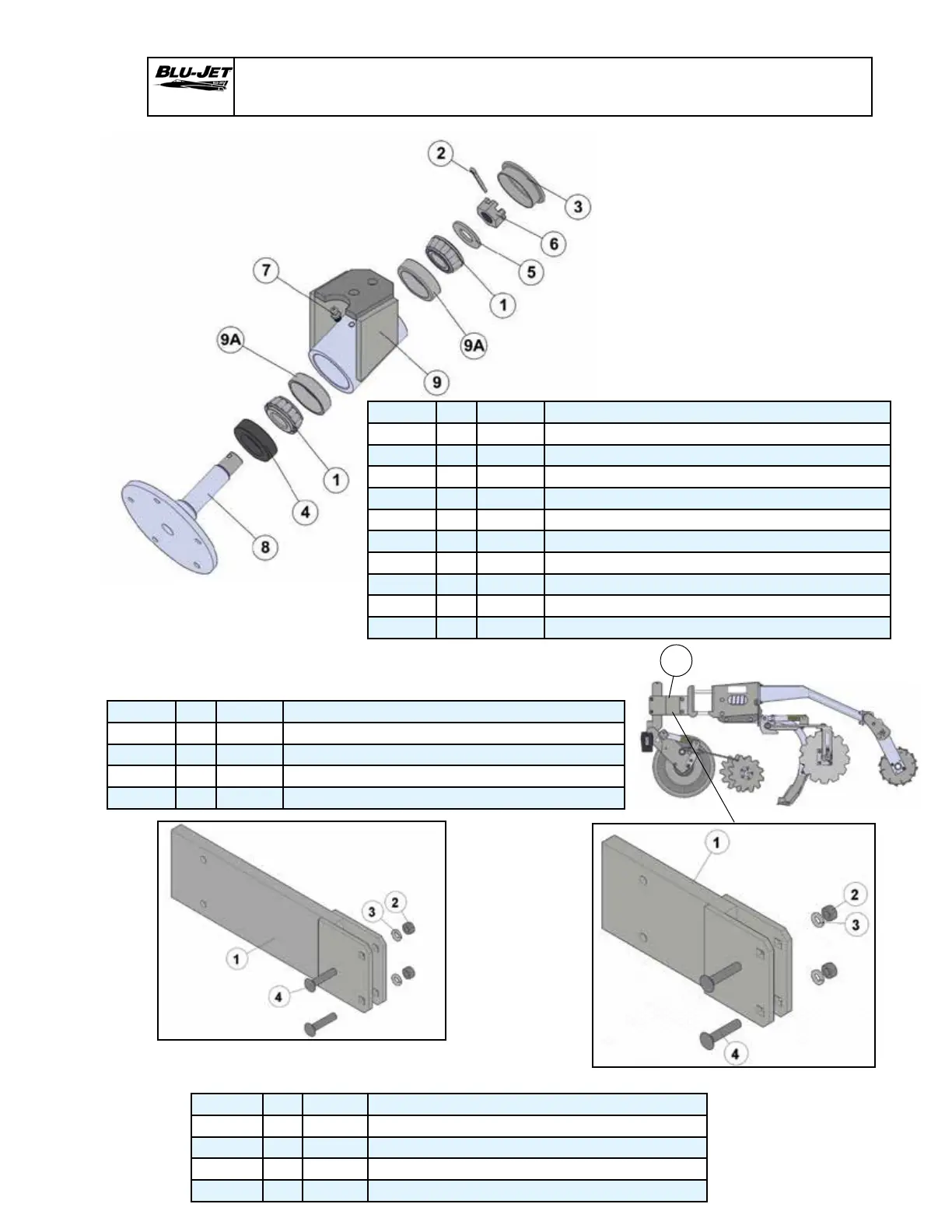

AM 7670 Blade Mounting Assembly & Coulter Shank Extension Brackets
1
AAM2637 Coulter Bracket Extension Kit 9-7/8”
(Use when residue managers are mounted on coulters.)
AAM2852 Coulter Bracket Extension Kit 16-7/8”
(Use when residue managers are mounted on coulters, SCS Spring Cushion.)
BOM ID Qty Item No Description
1 2 AP2024 BEARING CONE, LM 11949
2 1 AP2425 PIN, COTTER, 1/8” X 1”
3 1 AP2729 DUST CAP
4 1 AP2742 GREASE SEAL, 10174VB
5 1 AP2743 SPINDLE WASHERS
6 1 AP2744 NUT, SPINDLE, 5/8”-18
7 1 BP3072 GREASE ZERK, 1/4”-28
8 1 EM3710 BLADE MOUNTING
9 1 EM6659 MOUNTING WITH CUPS, RESIDUE MANAGER
9A 2 AP2075 BEARING CUP, LM 11910
BOM ID Qty Item No Description
1 1 AM2266 BRACKET, COULTER SHANK EXTENSION, 9-7/8”)
2 2 BP3042 NUT, HEX, 1/2”-13, GRADE 2, PLATED
3 2 BP3043 WASHER, LOCK, 1/2”, PLATED
4 2 BP3229 BOLT, CARRIAGE, 1/2”-13 X 2-1/2”, GRADE 5, PLATED
BOM ID Qty Item No Description
1 1 AM2268 BRACKET, COULTER SHANK EXTENSION, (16-7/8”)
2 2 BP3042 NUT, HEX, 1/2”-13, GRADE 2, PLATED
3 2 BP3043 WASHER, LOCK, 1/2”, PLATED
4 2 BP3229 BOLT, CARRIAGE, 1/2”-13 X 2-1/2”, GRADE 5, PLATED
