Task Procedures Illustrations
158
LEGACY
1. Cylinder should be drained of
oil before installation.
2. Attach (a) (DP4487) 4-1/2” x 12”
rephase cylinder, port side
down to wheel leg weldment
with cylinder pin.
3. Loosen cylinder plugs and
extend rod to bolt-on cylinder
lug.
4. Insert (b) (BM3559) 1” x 3”
clevis pin with anti-rotation.
5. Secure clevis pin with (c)
(BP3511) 3/16” x 1-3/4”
cotter pin. Thicker clevis
does not require a washer.
Mounting
wheel lift
linkage

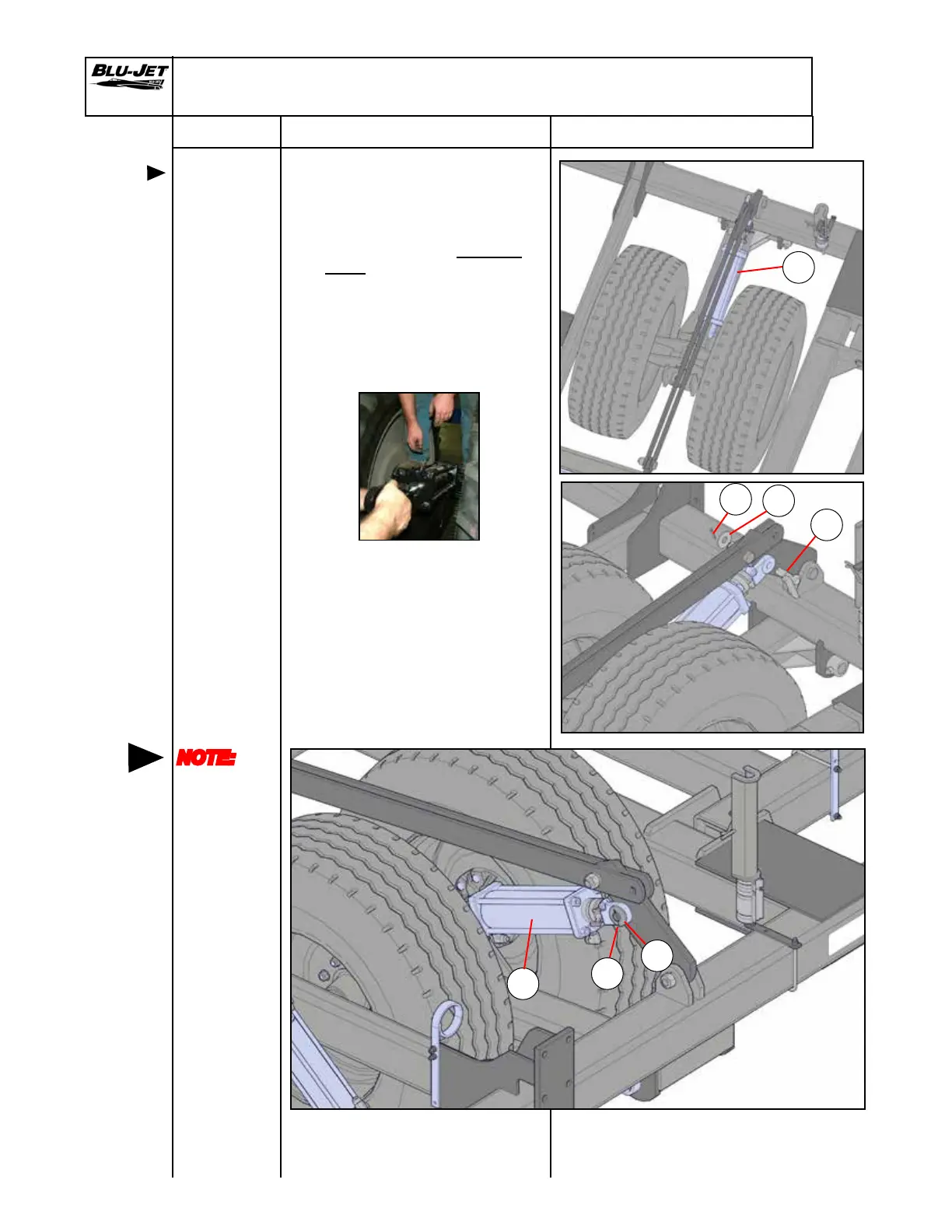

Center Section Wheel Lift Linkage Assembly
Right-hand side from the rear
NOTE:
(d) BP3028
1” at
washer as
needed with
anti-rotation
pin.
a
b
c
d
c
d
a
To Next Page
