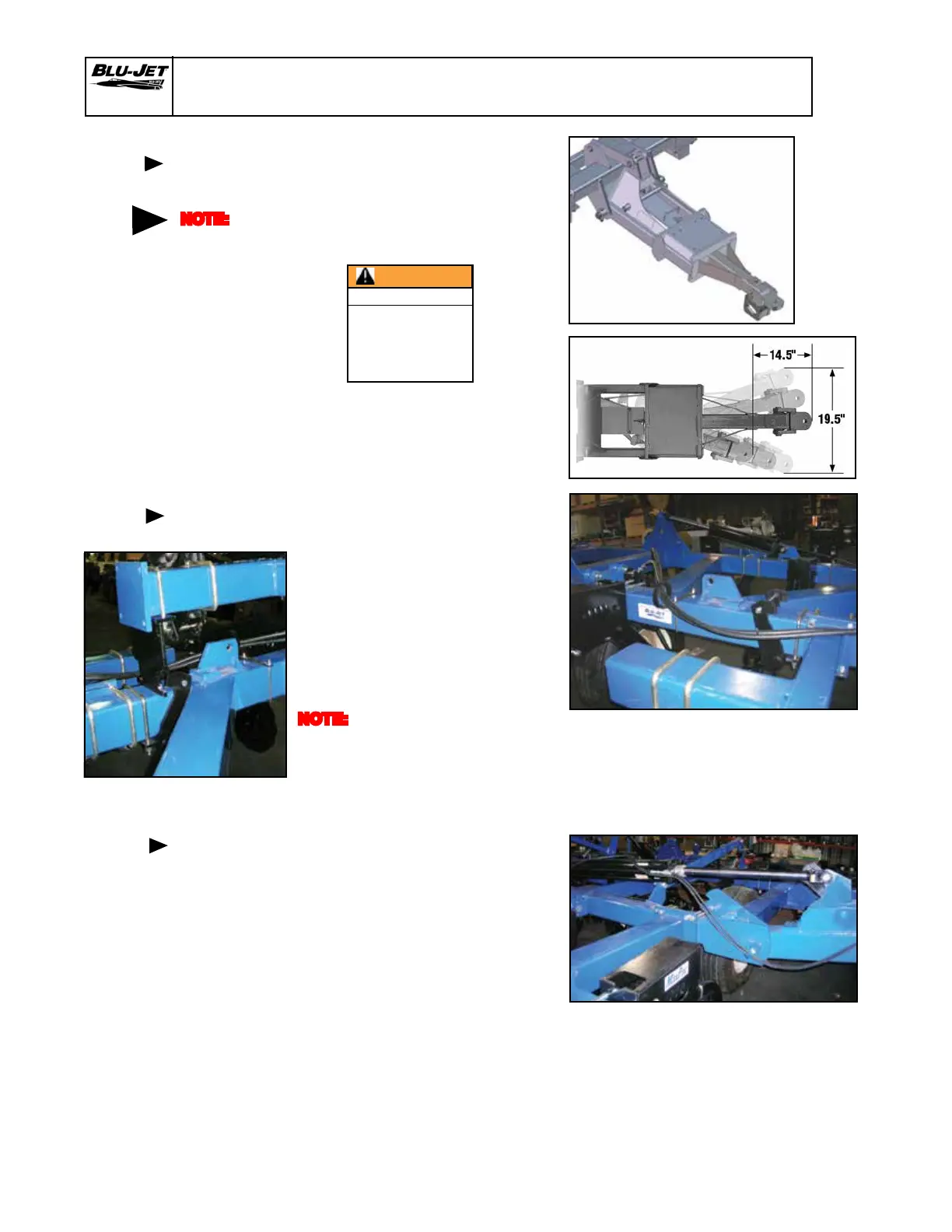

14. Nurse tank hitch can be
retracted and moved from
side to side for easy hookup.
Hitch will automatically lock
in the extended position.
Pinch point
To prevent Injury
Keep hands clear
when extending or
retracting the swing
slide insert
WARNING
NOTE:
Periodically
check Latch
mechanism to
ensure proper
latching in the
extended
position.
Nurse tank
hitch
Secondary
wing latch
Cylinder rod
maintenance
Operating Instructions
15. Mechanism must swing
freely in order to operate
properly. Installed position
must be squared with frame
to allow maximum freedom
of movement. Keep soil and
debris from area to allow
maximum movement.
NOTE: After seasonal storage,
check wing latch for freedom of
movement.
16. All exposed cylinder rods
should be greased before
seasonal storage to prevent
rusting.
Remove depth collars and
lubricate exposed cylinder
rods.
Latch in open position
before wing is folded
