Task Procedures Illustrations
194
LEGACY

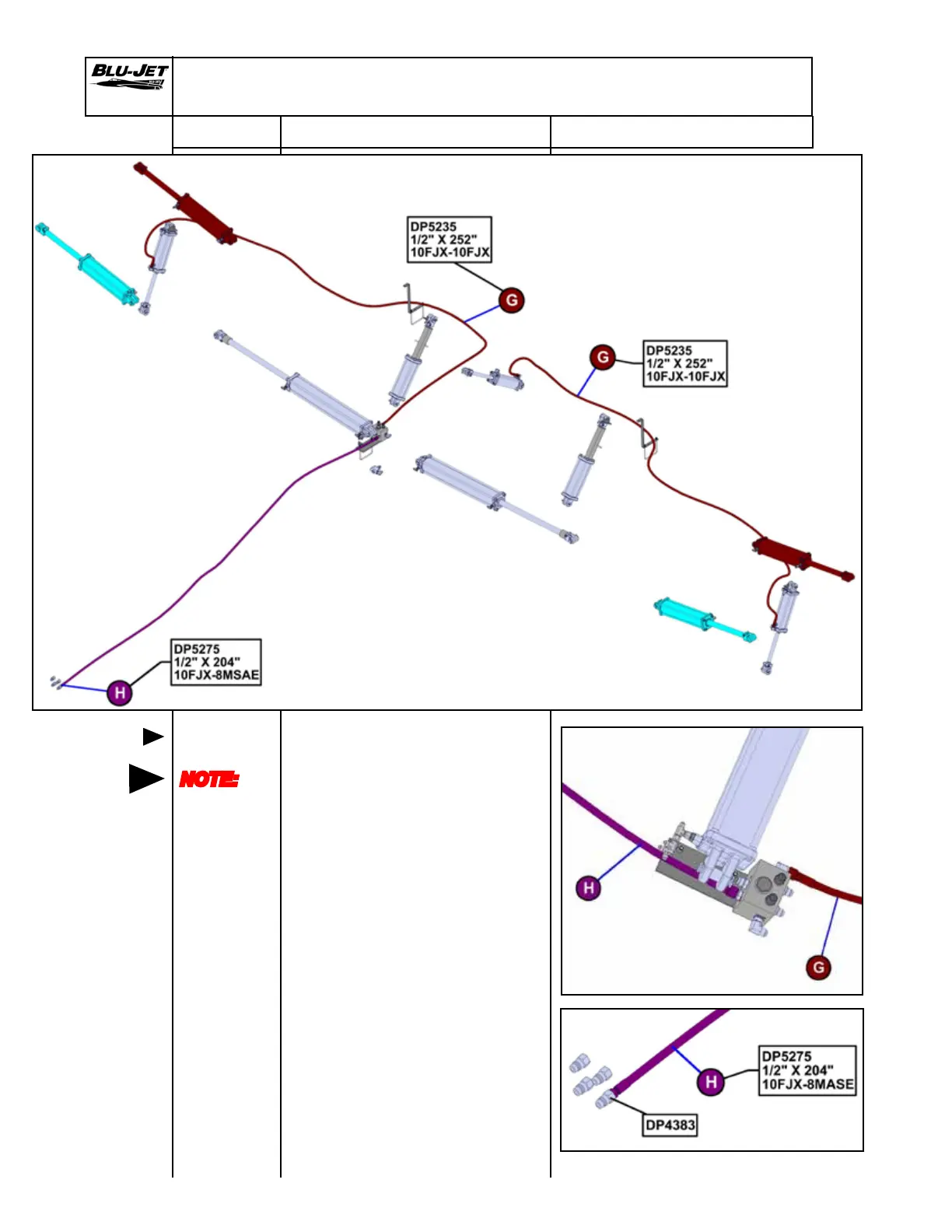

Legacy 52’ Hydraulic Hose Installation
1. Attach (H) (DP5275) 1/2” x
204” (17’) 10FJX-8MSAE
hoses to tractor side ports
of ow divider.
2. Extend hoses through hose
holders on tongue and install
(DP4143) pioneer ttings
3. Install (G) (DP5235) 1/2” x
252” (21’) 10FJX-10FJX hose
to right-hand 90 degree elbow
on ow divider. Extend hose
through hose holders to right-
hand gauge wheel and attach
to rod end of cylinder.
4. Attach second (G) (DP5235)
1/2” x 252” (21’) 10FJX-10FJX
hose to butt end of (DP4484)
3-1/2” x 12” cylinder.
Extend hose through hose
holders to left-hand gauge
wheel cylinder (DP4485) and
attach to rod end.
Lift wheel
hoses
NOTE:
Left-hand
and
right-hand
as viewed
from the
rear
To Next Page
