197
Task Procedures Illustrations
LEGACY

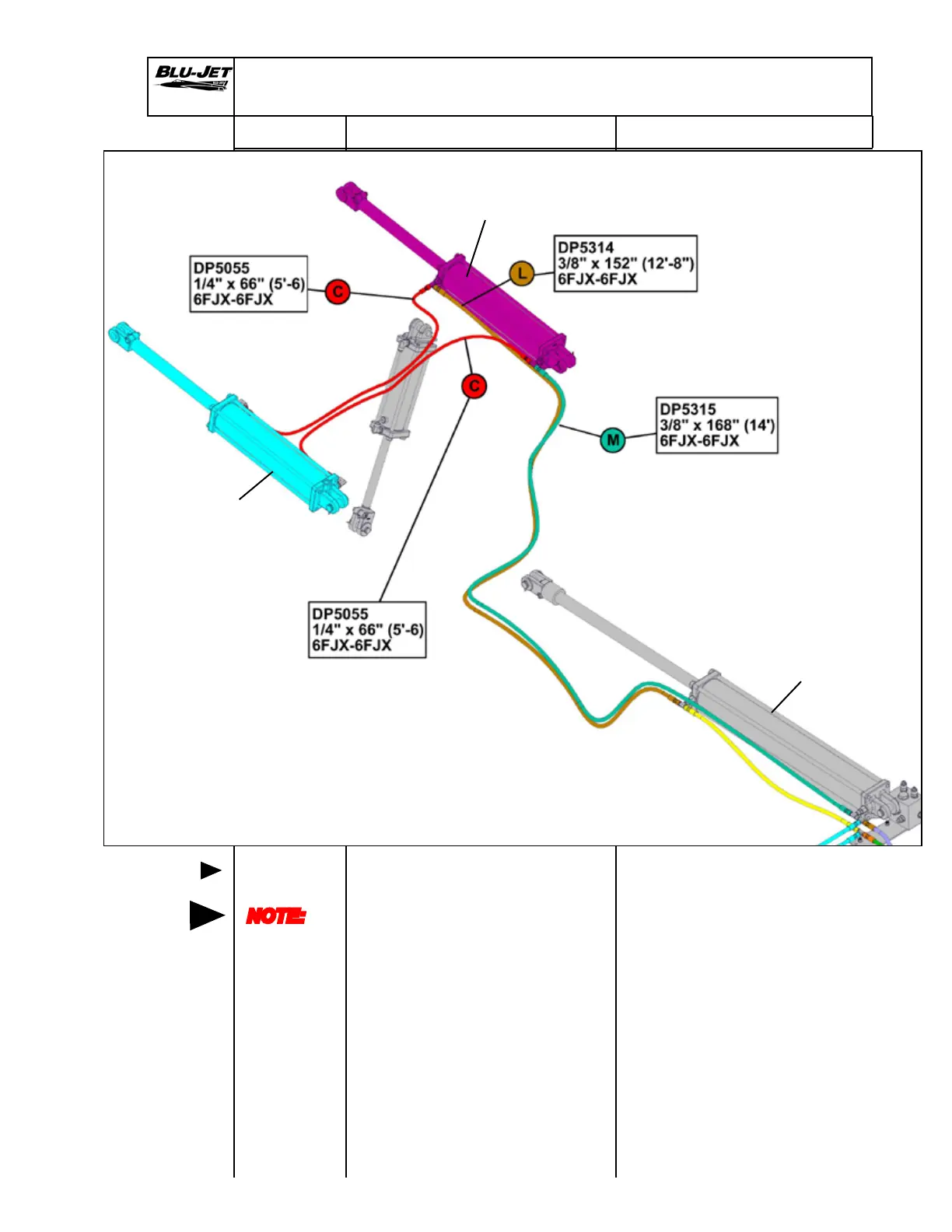

Legacy 52’ Hydraulic Hose Installation
NOTE:
Left-hand
and
right-hand
as viewed
from the
rear
Wing lift
hoses
1. Attach bottom (M) (DP5315)
3/8” x 168” (14’) 6FJX-6FJX
to butt end tee of (DP4398)
cylinder. Extend hose
through hose holders to
rear secondary wing (DP4579)
cylinder butt end tee.
2. Install (L) (DP5314) 3/8” x
152” (12’-8”) 6FJX-6FJX
to rod end tee of (DP4398)
cylinder.
Extend hose through hose
holders to rear secondary
wing (DP4579) cylinder rod
end tee.
DP4398
5” x 36”
DP4579
4-1/2” x 20”
DP4579
4-1/2” x 20”
3. Attach (C) (DP5055) 1/4” x 66”
(5’6”) hoses to tees on rear
(DP4579) cylinder. Extend
hoses through hose holder
to tractor side (DP4579)
cylinder. Attach rod end
hose to the rod end of
(DP4579) cylinder and the
butt end hose to the butt end
of (DP4579) cylinder.
Right-hand from the rear
Tractor Side
To Next Page
