Task Procedures Illustrations
204
LEGACY
NOTE:
Left-hand
and
right-hand
as viewed
from the
rear
Single
secondary
wing
cylinders

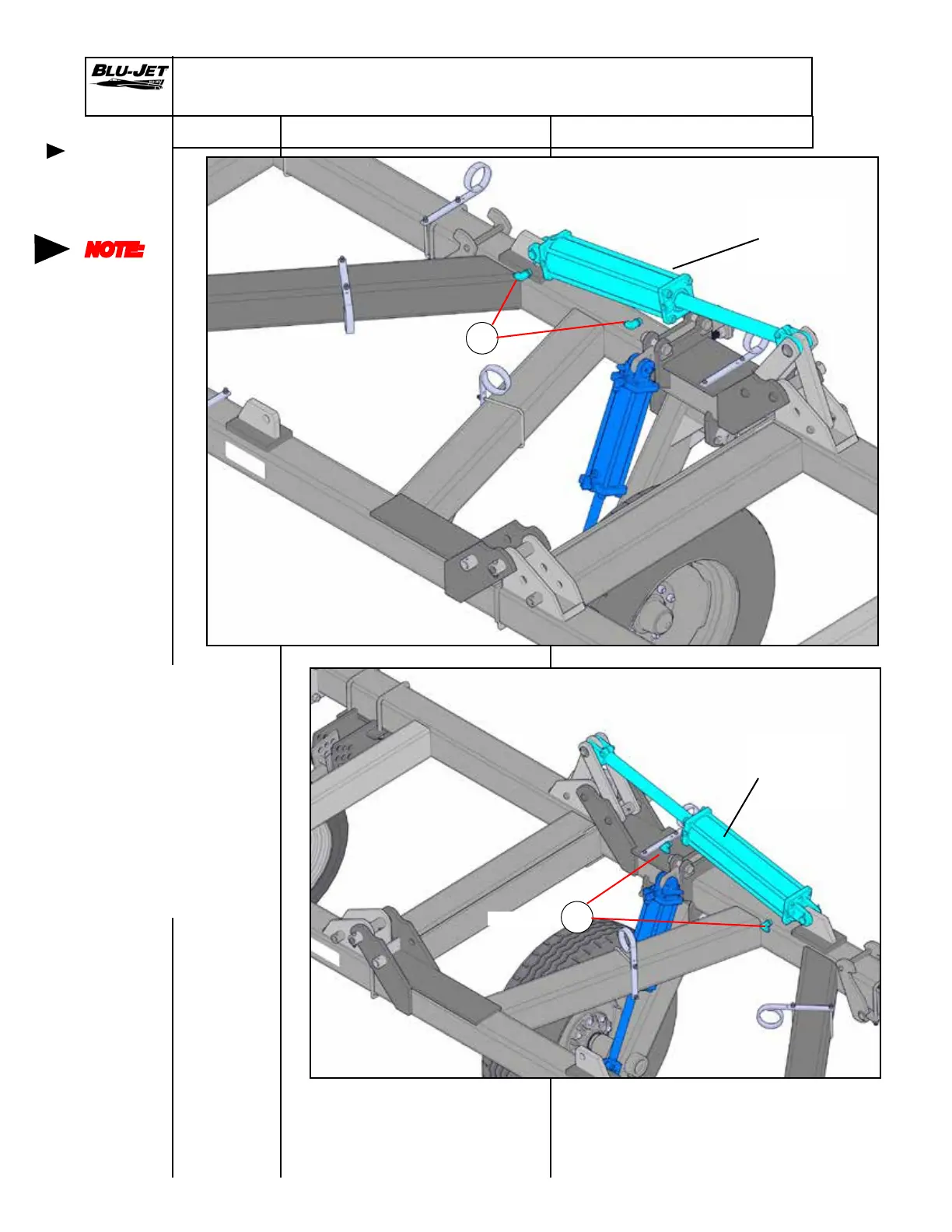

7. Install (AB) (DP4581) 6MJ-
10MSAE 90 degree adapters
in both left-hand and right-
hand side ports of 4-1/2” x 20”
secondary wing cylinders.
Tractor side
Tractor side
Right-hand from the rear
Left-hand from the rear
DP4579
4-1/2” x 20”
Secondary
wing
cylinder
DP4581
AB
DP4579
4-1/2” x 20”
Secondary
wing
cylinder
DP4581
AB
Legacy 38’, 42’, 47’ Hydraulics
