65
LEGACY

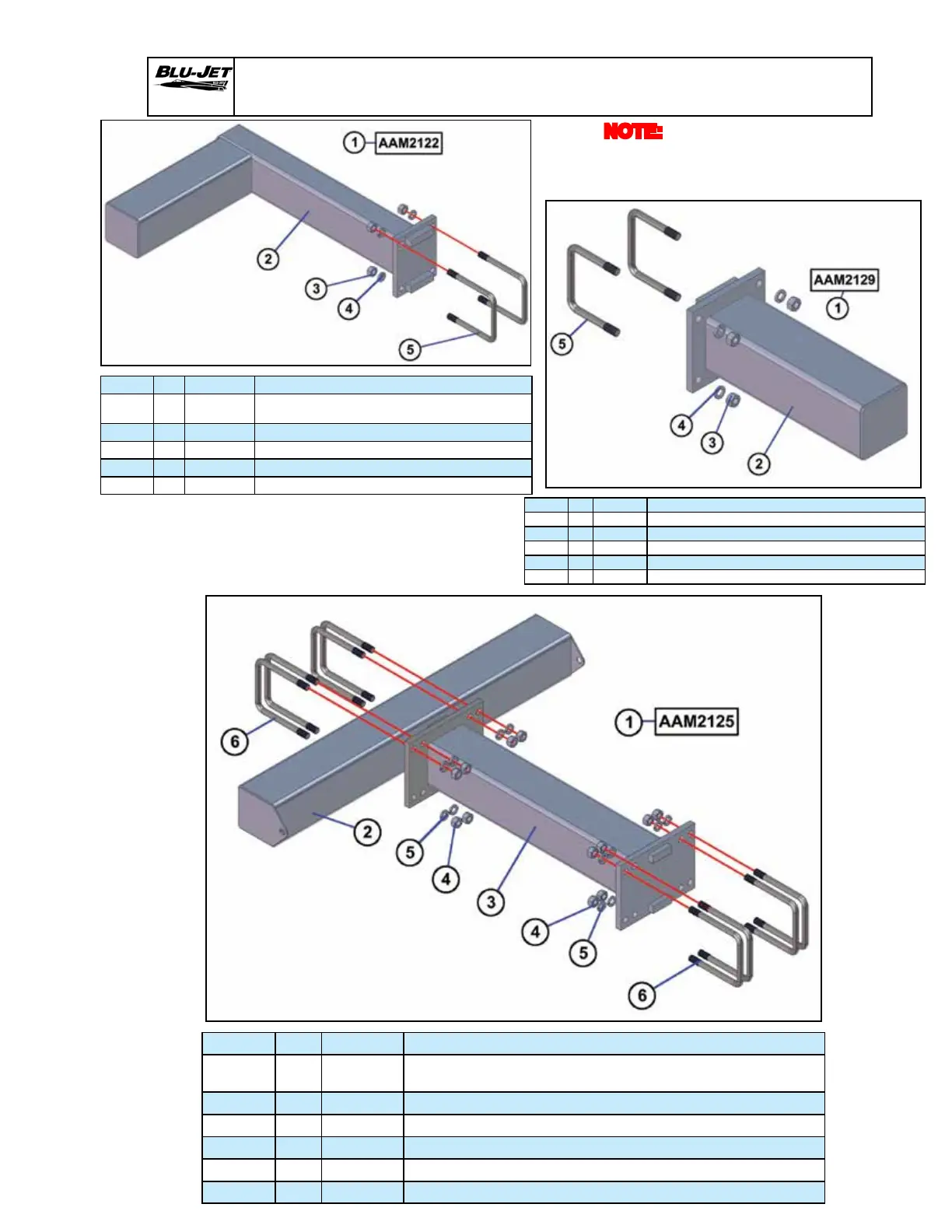

Stagger Brackets Offset 6” x 6” Mounting
NOTE: Consult row spacing
diagram for placement of offset
stagger brackets.
BOM ID Qty Item No Description
1 1 AAM2122 BRACKET, OFFSET STAGGER, 33 X 20, 6 X 6,
W/HARDWARE
2 1 AM4509 BRACKET, OFFSET STAGGER, 33X20
3 4 BP3034 NUT, HEX, 3/4”-10 GRADE 2, PLATED
4 4 BP3035 WASHER, LOCK, 3/4”, PLATED
5 2 BP3350 U-BOLT, 3/4”-10 X 6”W X 7-11/16”L, PLATED
BOM ID Qty Item No Description
1 1 AAM2125 BRACKET, OFFSET STAGGER, 40 X 48 DOUBLE, 6 X 6,
W/HARDWARE
2 1 AM6160 TUBE, 4’, 6” X 6”, CAPPED
3 1 AM6161 BRACKET, EXTENSION, 35”, DOUBLE MTG, 6 X 6
4 16 BP3034 NUT, HEX, 3/4”-10, GRD 2, PLTD
5 16 BP3035 WASHER, LOCK, 3/4”, PLTD
6 8 BP3350 U-BOLT, 3/4”-10 X 6”W X 7-11/16”L, PLTD
BOM ID Qty Item No Description
1 1 AAM2129 BRACKET, EXTENSION, 20”, 6 x 6, W/HARDWARE
2 1 AM6162 BRACKET, EXTENSION, 20”, 6” MTG, W/ ANTI-ROTATION
3 4 BP3034 NUT, HEX, 3/4”-10, GRADE 2, PLATED
4 4 BP3035 WASHER, LOCK, 3/4”, PLATED
5 2 BP3352 U-BOLT, 3/4”-10 X 6”W X 5-11/16”L, PLATED
