787 Flight Crew Operations Manual
DO NOT USE FOR FLIGHT
Flight Instruments, Displays -
Electronic Flight Bag - Controls
and Displays
Copyright © The Boeing Company. See title page for details.
D615Z003-TBC 10.70.5

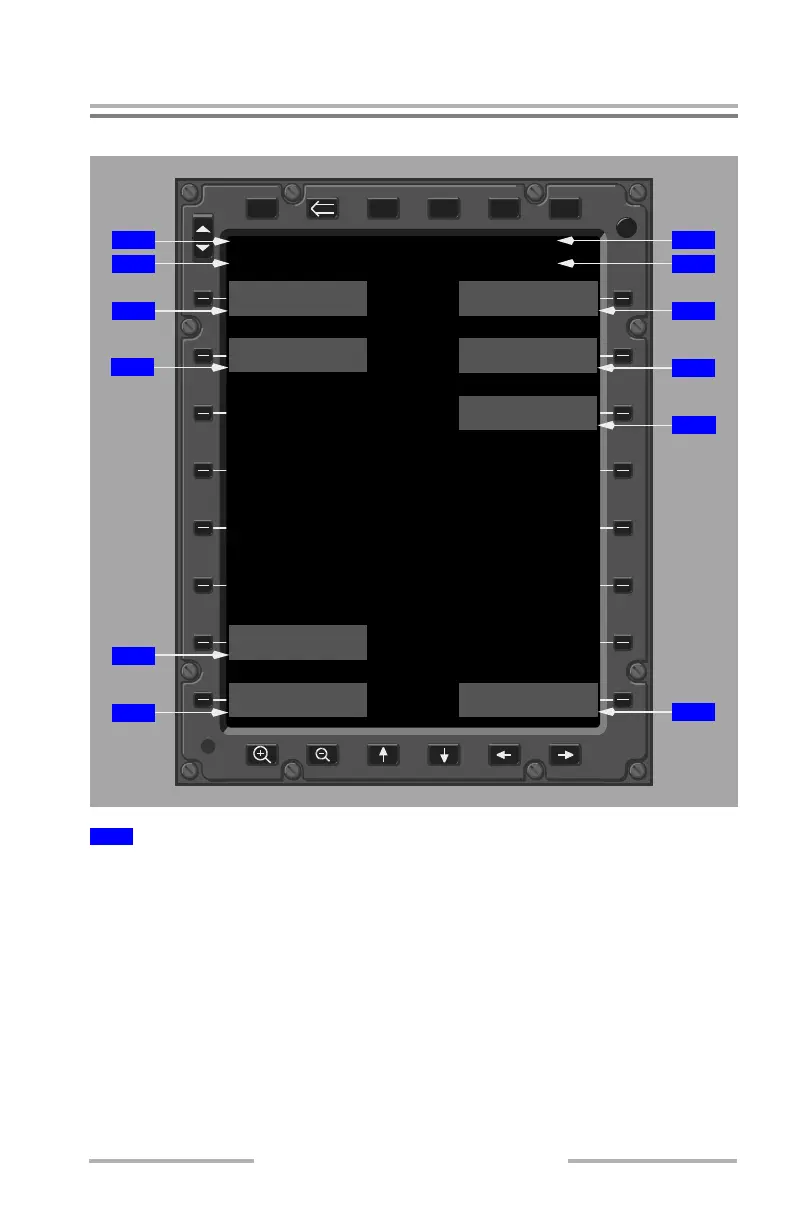

EFB Main Menu Page
Displayed (amber) -
• a fault has occurred within an application
• displays in the header regardless of the application displayed
• also displays next to the affected application soft key on the Main Menu
page until the fault is acknowledged
• removed from the display upon selection of SYSTEM PAGE regardless if
the fault is acknowledged or not
Only one message at a time can be displayed next to an application soft key.
FAULT takes priority over MSG and MEMO. MSG or MEMO displays, as
applicable, after the fault has been cleared.
1
FAULT Message
DSPL
DSPL
PWR
XFRPGDNPGUPMENU ENTER
BRT
DIM
MAIN MENU
PERFORMANCE
VIDEO
IDENT PAGE
SYSTEM PAGE INITIALIZE FLIGHT
LOGBOOK
5
6
1
2
3
7
8
9
10
12
4
DOCUMENTS
MEMO
FAULT
MEMO
MSG
FAULT
MSG
XFR
FAULT
TERMINAL CHARTS
11
June 16, 2008
To Next Page
