EFB SYSTEM Page
Displays a list of hardware, software, and application faults that have occurred
within the system, and the time they occurred since the last power-up cycle.
Unacknowledged fault information is displayed in white.
Acknowledged fault information is displayed in cyan.
Selection acknowledges all new faults.
Unacknowledged faults change to cyan and the FAULT message displayed on the
Main Menu page adjacent to the SYSTEM PAGE soft key is removed.

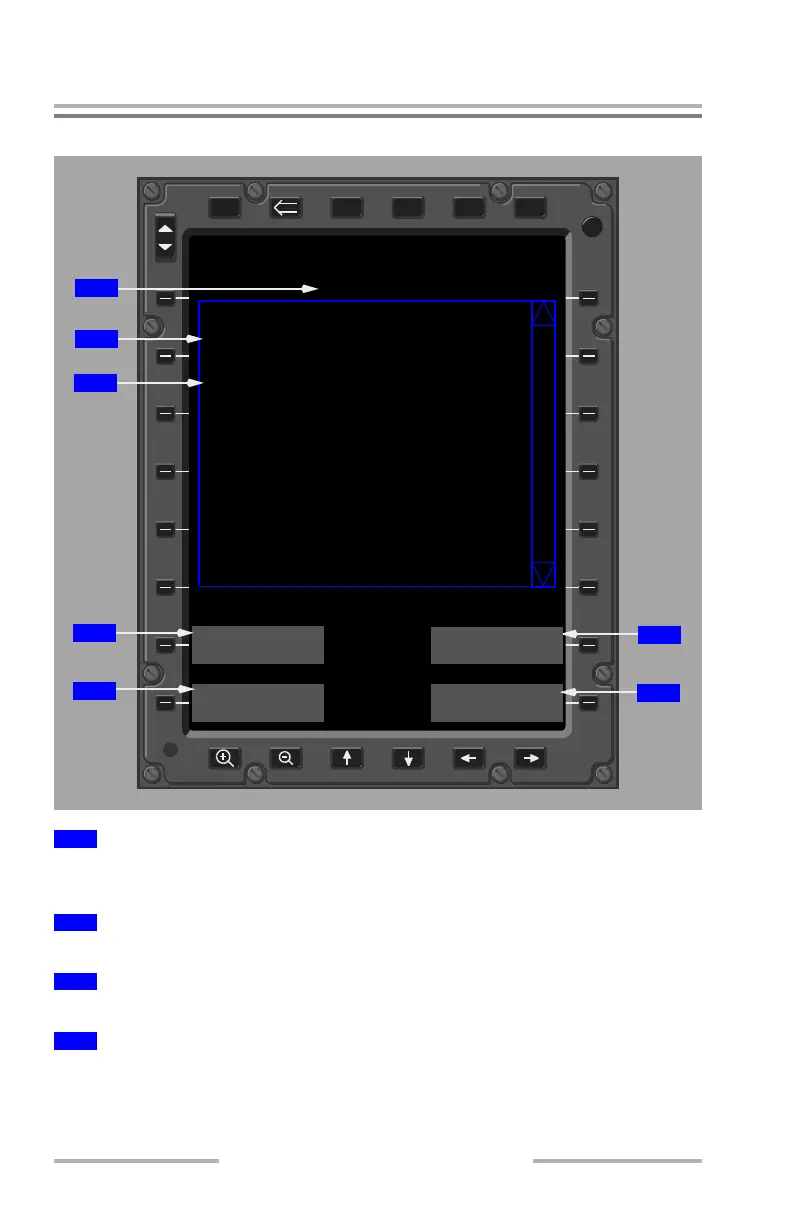

1
SYSTEM FAULT LOG
2
Unacknowledged Fault
3
Acknowledged Fault
4
ACKNOWLEDGE NEW FAULTS Soft Key
DSPL
DSPL
PWR
XFRPGDNPGUPMENU ENTER
BRT
DIM
SYSTEM
SYSTEM FAULT LOG
Applications Failure
1357Z
Documents Data Out of Date
1358Z
1353Z
1350Z
1330Z
1331Z
1256Z
1255Z
1254Z
Charts Database Out of Date
Performance Database Out of Date
Documents Data Out of Date
Applications Failure
Applications Failure
Applications Failure
Applications Failure
ACKNOWLEDGE NEW
FAULTS
EFB MAINTENANCE
RESTART
4
5
6
1
3
2
ONBOARD
MAINTENANCE
7
