787 Flight Crew Operations Manual
DO NOT USE FOR FLIGHT
Flight Instruments, Displays -
Electronic Flight Bag - Controls
and Displays
Copyright © The Boeing Company. See title page for details.
D615Z003-TBC 10.70.35
Selection displays a list of all faults associated with the region displayed in the
graphic. The more the region is narrowed by selecting specific areas, the fewer
faults that are returned.
LOGBOOK - FAULT LOCATOR Display Page
Selection opens the data entry field for use in locating a fault using text search.
Displays a list of faults for the specific area selected. Use the scroll bar if needed.
Selection returns to the Record Fault Report page.
5
VIEW FAULTS Soft Key
1
NEW SEARCH Soft Key
2
Fault List
3
FAULT NOT FOUND Soft Key
DSPL
DSPL
PWR
XFRPGDNPGUPMENU ENTER
BRT
DIM
LOCATION: CONTROL STAND
SYSTEM: <ALL SYSTEMS>
SEARCH TEXT: <NONE>
Altn Flaps Switch
ALTN PITCH TRIM LEV - Status
Altn Pitch Trim Lever
Auto Speedbrake
Engine - Thrust Levers Misaligned
FLAP/SLAT CONTROL 1 - Status
FLAP/SLAT CONTROL 2 - Status
FLAP/SLAT SKEW SNSRS - Status
FLAPS DRIVE - Caution
FLAPS PRIMARY FAIL - Caution
SELECTED FAULT:
FAULTS DISPLAYED:

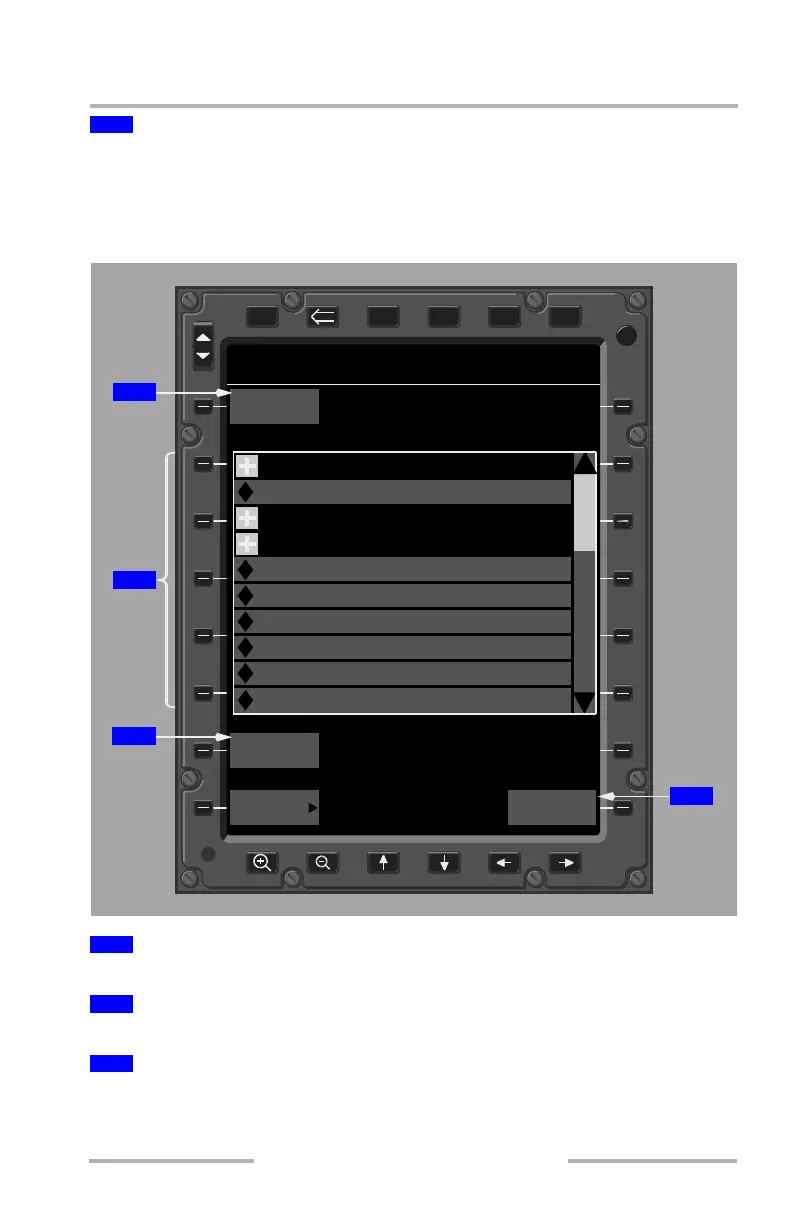

LOGBOOK - FAULT LOCATOR
FLIGHT 007, OEDB/EGLL, 15-JAN-2007
FAULT NOT
FOUND
SHOW
MENU
OK
NEW
SEARCH
1
3
2
4
