Flight Instruments, Displays -
Electronic Flight Bag - Controls
and Displays
Copyright © The Boeing Company. See title page for details.
10.70.34 D615Z003-TBC

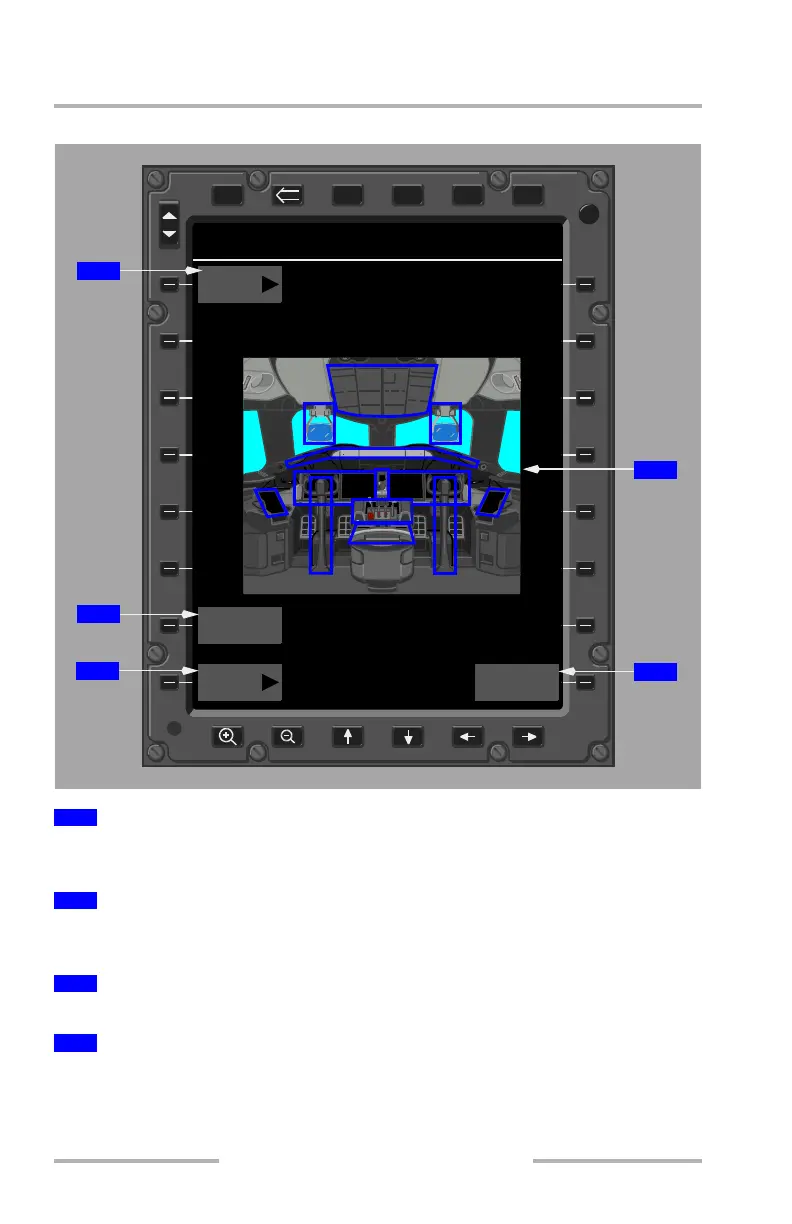

LOGBOOK - FAULT LOCATOR Graphic Locator Page
Selection opens a list of airplane areas (Flight Deck, Engine, Exterior, etc.) for use
in locating an area where a fault has occurred.
Selection opens a blank fault report form for the user to complete. This is required
when a fault can not be found in the selected area.
Selection toggles between showing or hiding the extended menu selections.
Selection of a boxed area navigates through a series of images to help identify a
fault. The purpose is to narrow the search area to find the appropriate fault code.
1
LOCATION Soft Key
2
FAULT NOT FOUND Soft Key
3
SHOW/HIDE MENU Soft Key
4
Panel Selection Area
DSPL
DSPL
PWR
XFRPGDNPGUPMENU ENTER
BRT
DIM
FAULT NOT
FOUND
SHOW
MENU
VIEW
FAULTS
FLIGHT DECK
LOGBOOK - FAULT LOCATOR
FLIGHT 007, OEDB/EGLL, 15-JAN-2007
LOCATION
4
1
2
3
5
June 16, 2008
To Next Page
