Terminal Charts (Typical)

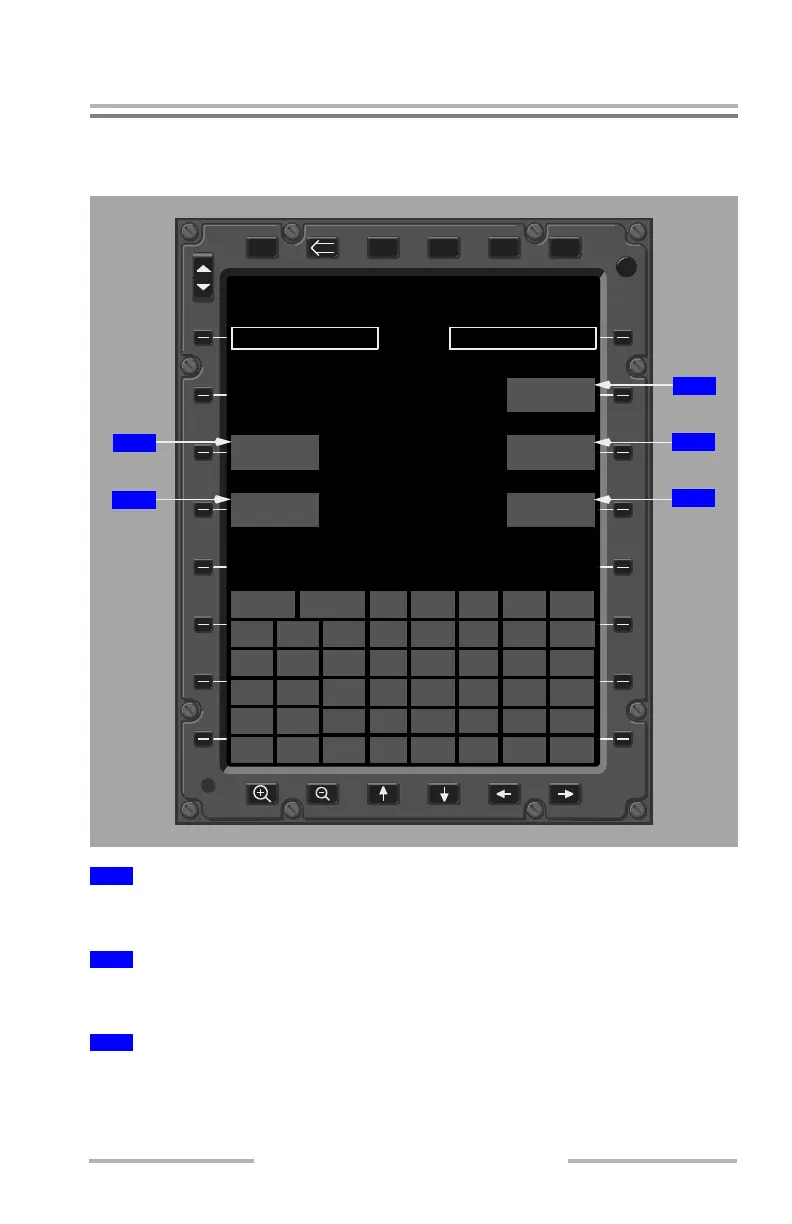

TERMINAL CHARTS - ROUTE SETUP Page
Selection displays search results in the Airport Search page. If needed, select the
PGDN bezel key to view additional results.
Selection displays search results in the Airport Search page. If needed, select the
PGDN bezel key to view additional results.
Selection loads the ORIGIN and DESTINATION fields with those entered on the
FMC Route page.
1
SEARCH IDENT Soft Key
2
SEARCH ALL Soft Key
3
USE Airports (ARPTS) FROM FMS Soft Key
DSPL
DSPL
PWR
XFRPGDNPGUPMENU ENTER
BRT
DIM
TERMINAL CHARTS
1/2
ROUTE SETUP
ORIGIN DESTINATION
KSFOKSEA
SEATTLE INTL SAN FRANCISCO INTL
SYMB SHIFT A B
C
DE
F
G
HI
J
123
KLMN
O
456
P
Q
RS T
789
UVWX Y
.
0
-
ZSP
CLR
FLD
/
BKSP
'
,
?
SEARCH
IDENT
SEARCH
ALL
SHOW
ALTS
COMPLETE
USE ARPTS
FROM FMS
1
2
5
3
4
