Selection displays a list of the alternate airports.
Selection saves any changes and displays the Chart Clip page.

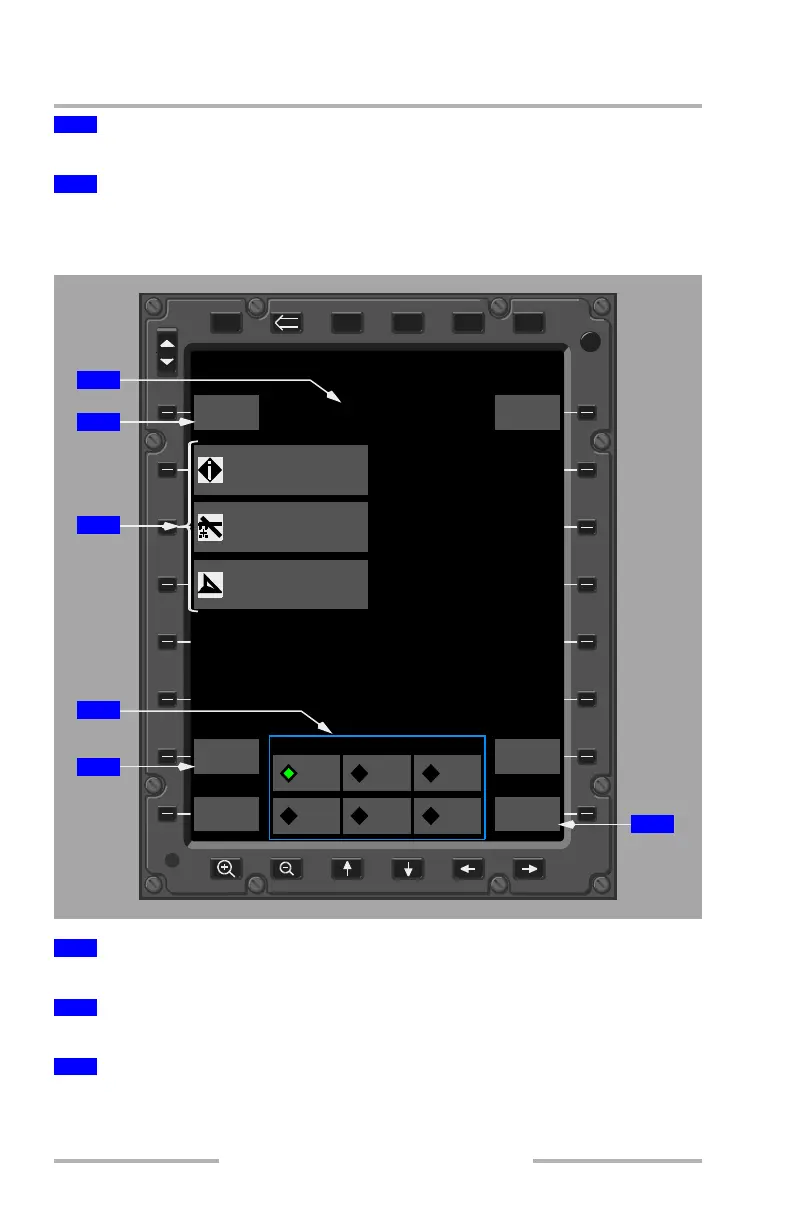

TERMINAL CHARTS - CHART CLIP Page
Displays the current chart clip airport identifier.
Selection displays the Print page.
Selection displays the relevant chart.
4
SHOW Alternates (ALTS) Soft Key
5
COMPLETE Soft Key
1
Airport Identifier
2
PRINT CLIP Soft Key
3
Charts Soft Keys
DSPL
DSPL
PWR
XFRPGDNPGUPMENU ENTER
BRT
DIM
DAY
MODE
CHART NOTAMS
EDIT
CLIP
AIRPORT
SEARCH
ROUTE
SETUP
CHART
UTILITIES
TERMINAL CHARTS
1/1
CHART CLIP
BGSF - ORIGIN
Current Mode: Night
CHART CLIP AIRPORTS
BGSF RCSS KLAX
ALT2 ALT3 ALT4
AIRPORT, AIRPORT INFO,
TAKE-OFF MNMB (10-9)
MKR LOC DME RWY10 (11-1)
PRINT
CLIP
6
5
2
3
1
4
