787 Flight Crew Operations Manual
DO NOT USE FOR FLIGHT
Flight Instruments, Displays -
Electronic Flight Bag - Controls
and Displays
Copyright © The Boeing Company. See title page for details.
10.70.60 D615Z003-TBC
Video Surveillance (Typical)
[Option]

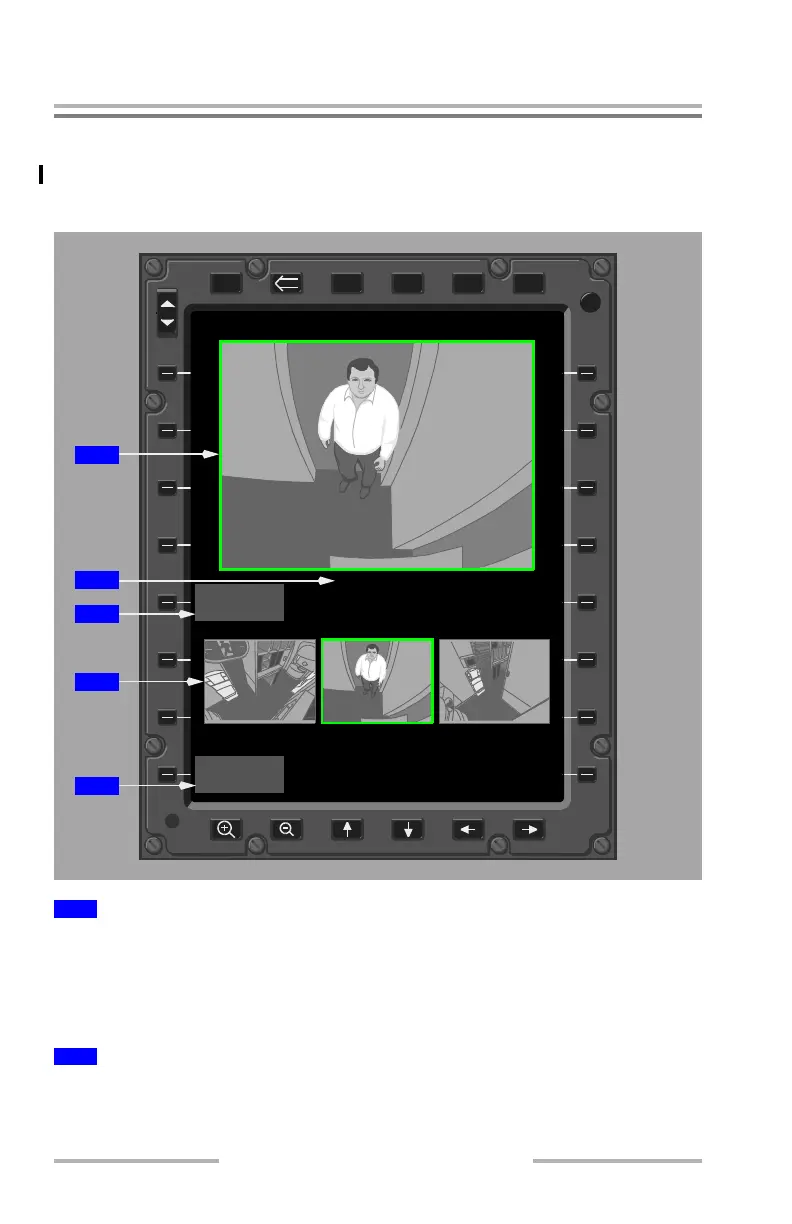

VIDEO SURVEILLANCE Main Page
Displays the selected thumbnail image inside a green border.
Border changes to cyan when FREEZE is selected.
Border turns amber and NO VIDEO SIGNAL displays when the selected image
is not available.
Displays the name of the thumbnail image being displayed in the primary area.
1
Primary Display Area
2
Primary Display Title Bar
DSPL
DSPL
PWR
XFRPGDNPGUPMENU ENTER
BRT
DIM
VIDEO SURVEILLANCE
UNFREEZE
SHOW MENU
IDENTIFICATION
DOOR #1 LEFT DOOR #1 RIGHTIDENTIFICATION
1
2
3
4
5
