Flight Management, Navigation -
Controls and Indicators
Copyright © The Boeing Company. See title page for details.
11.10.4 D615Z003-TBC

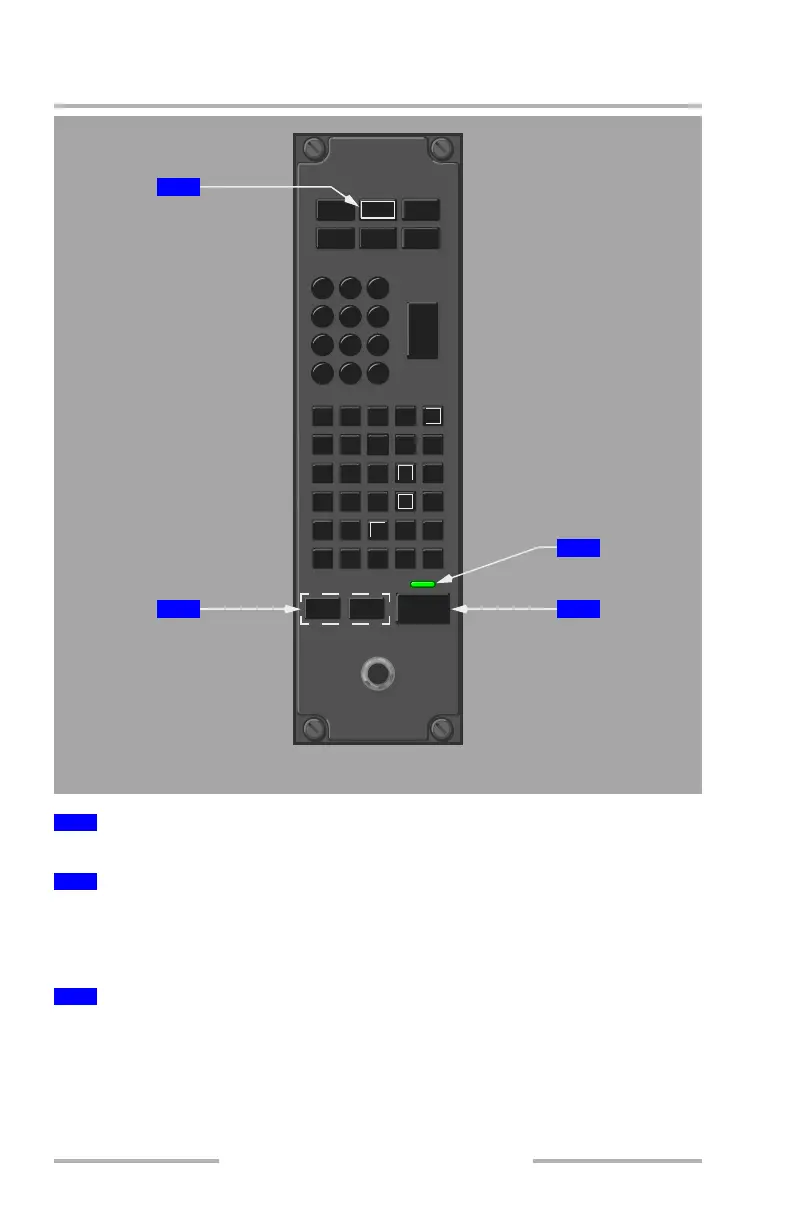

Push – displays the emulated CDU on the lower MFD.
Push –
• PREV PAGE – displays previous page of multiple page displays
• NEXT PAGE – displays next page of multiple page displays
Illuminated (green) – active data is modified but not executed.
1
Control Display Unit (CDU) Switch
2
Previous (PREV) / NEXT PAGE Key
3
Execute Light
ABCDE
CURSOR CONTROL
PREV
EXEC
FGHIJ
PQR
KLM
UV
Z
SP
/
DEL CLR
PAGE
NEXT
PAGE
+/-
0.
987
654
32
1
E
N
T
E
R
N
S
W X
T
O
Y
CHKL COMM ND
SYS
LOWER MFD
CDU INFO
FWD AISLE STAND
2
4
1
3
