787 Flight Crew Operations Manual
DO NOT USE FOR FLIGHT
Fuel -
Controls and Indicators
Copyright © The Boeing Company. See title page for details.
12.10.8 D615Z003-TBC

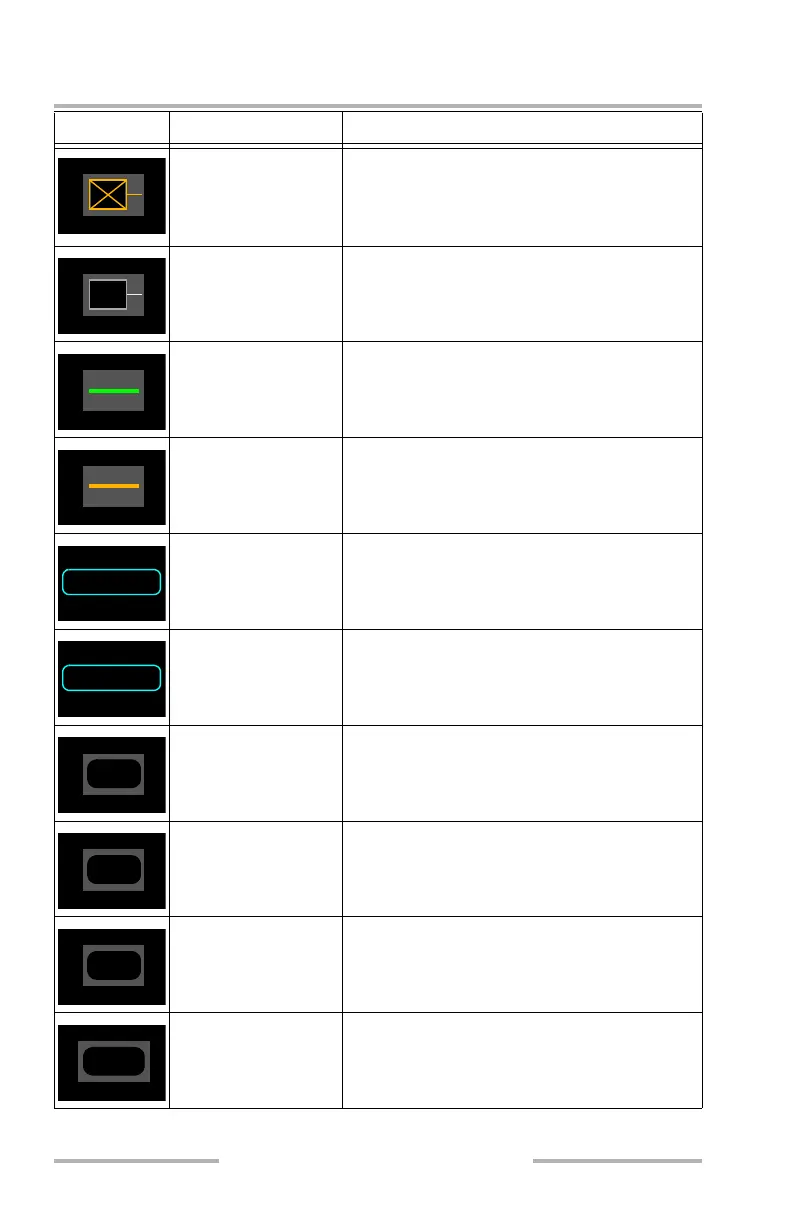

Fuel Pump
(amber rectangle
with crossout)
Fuel pump failed or pump switch is ON and
pressure sensor detects pressure less than 7 to 8
psig. Also shown following automatic shutoff
of center tanks
Fuel Pump
(gray rectangle)
Fuel pump state is invalid.
Normal Fuel Feed
(green)
Fuel line is pressurized. Pressure sensor detects
pressure greater than 7 to 8 psig.
Suction Feed
(amber)
Fuel line is unpressurized and suction flow is
occurring.
Total Fuel
(white)
Normal indication.
Total Fuel
(blank)
Invalid indication or any individual tank
quantity blank.
Main Tank Quantity
(white)
Normal indication.
Main Tank Quantity
(amber)
Fuel tank quantity is low. FUEL QTY LOW
message is displayed
Tank Quantity
(blank)
Tank quantity is invalid.
Center Tank Quantity
(white)
Normal indication.
Symbol Indication Description
97.7
FUEL
TOTAL
FUEL
TOTAL
15.0
2.9
149.0
