787 Flight Crew Operations Manual
DO NOT USE FOR FLIGHT
Airplane General, Emergency
Equipment, Doors, Windows -
Controls and Indicators
Copyright © The Boeing Company. See title page for details.
1.30.12 D615Z003-TBC

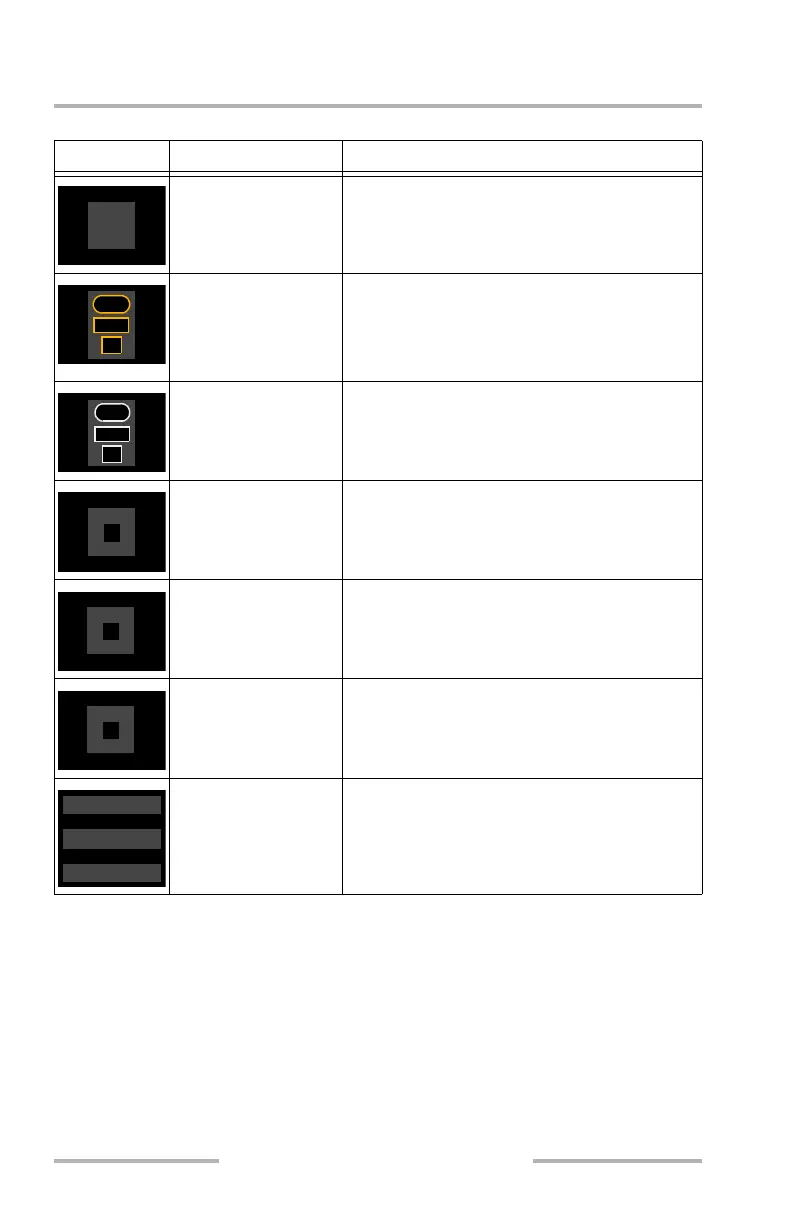

Door Synoptic Indications
Symbol Indication Description
Door symbol blank
Large cargo door is closed, latched, and locked.
Flight deck overhead door, bulk cargo door, or
an access door is closed and latched.
Door symbol amber
Passenger entry or large cargo door is NOT
closed, latched, and locked.
Flight deck overhead door, bulk cargo door, or
an access door is NOT closed and latched.
Door symbol white
Door signal is invalid or unknown.
Door position is unknown.
Slide indication shows if valid.
Green letter A
Passenger door is closed, latched, and locked;
and the slide in the automatic mode.
White letter M
Passenger door is closed, latched, and locked;
and the slide in the manual mode.
Slide mode blank
Passenger door is closed, latched and locked;
and the slide mode is unknown.
Lavatory availability
LAV VACANT – lavatory is available.
LAV OCCUPIED – lavatory is unavailable.
Indication is blank – availability is unknown.
A
A
M
LAV VACANT
LAV OCCUPIED
February 15, 2010
