An amber smoke alarm/call light is mounted on the exterior wall above the
entrance door. When smoke is detected in the crew rest area, the light flashes. The
light illuminates steady when the attendant call button on a crew rest PCU has
been pushed.
Conditioned air is used to provide temperature control and ventilation to the
overhead flight crew rest. This air is regulated using the temperature control panel
in the common area.
Main Control Panel
The overhead flight crew rest main control panel is located inside the entrance
enclosure.
Smoke Alarm

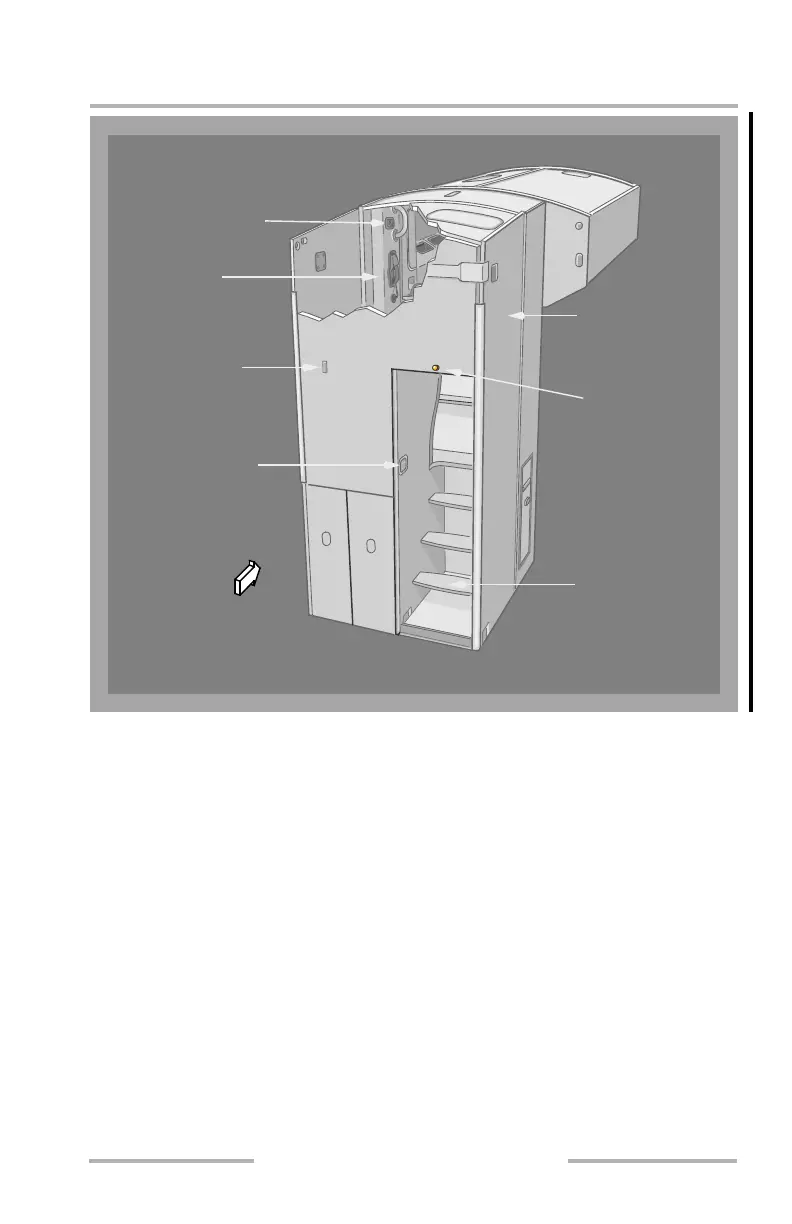

Common Area
Main Control
Panel
Control Panel
Interphone
Stairs
Temperature
Call Light
Control Panel
Note: Entrance shown with door removed.
Handset
(Interior wall)
AFT
Door Latch
February 15, 2010
