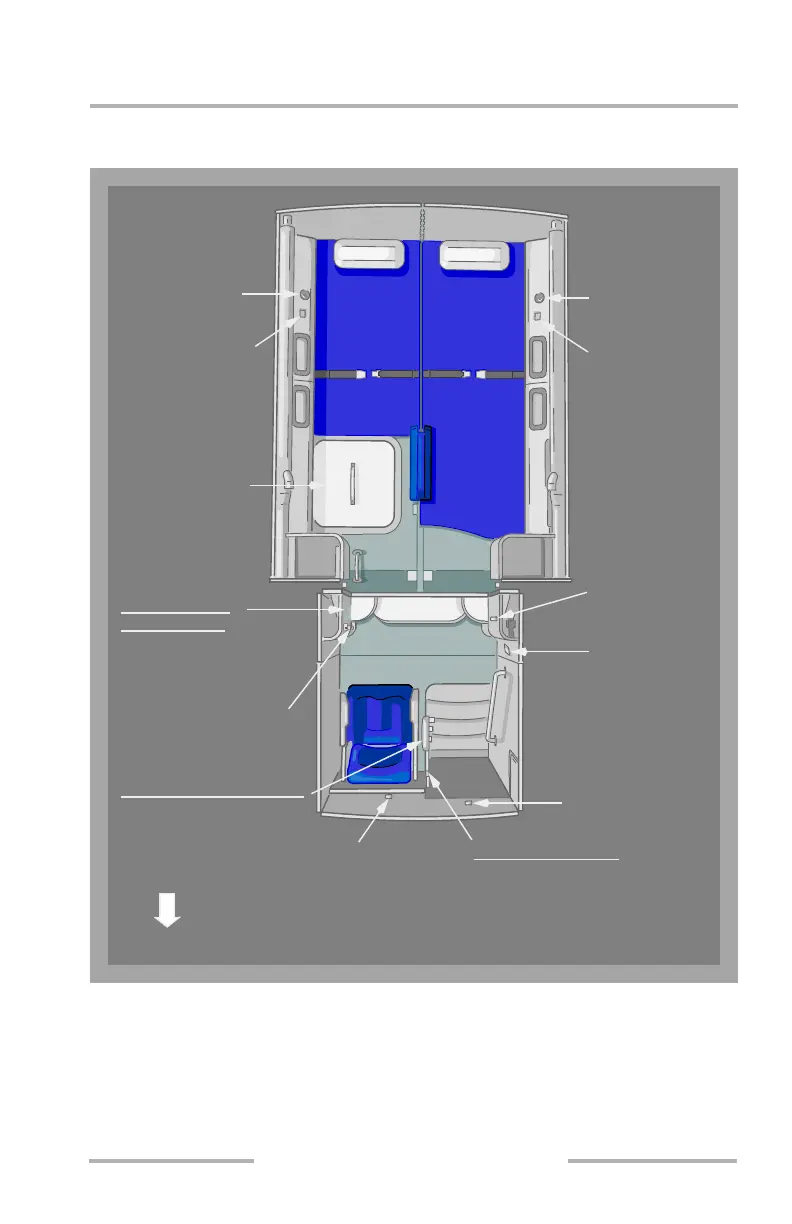

Layout
[Option – Single seat]
The overhead flight crew rest contains the following:
[Option – Single seat]
• an entrance and common area containing:
• lights master switch
• area lighting switches
Main Control Panel
- Horn Shutoff Switch
- Lights Master Switch
- Area Light Switch
Reading/Area
Light Switches
Power Outlet
Reading/Area
Common Area
- Bunk 1 Light Switch
Light Switches
Seat Area Control Panel
- Reading Light Switch
- Area Light Switch
- Power Outlet
- Bunk 2 Light Switch
- Area Light Switch
Escape Hatch
Temperature
Control Panel
Power Outlet
Fasten Seat
Belt Sign
Fasten Seat
Belt Sign
Lavatory
Occupied Sign
FWD
Interphone
Handset
- Handset Light
Control Panel
