Shoulder and Foot Heaters
LOW – electric heater operates on low setting.
Turn – the electric heater adds heat to the conditioned air flowing in at shoulder
level at variable temperature settings up to HIGH.
LOW – electric heater operates on low setting.
Turn – electric heater adds heat to the floor plate at variable temperature settings
up to HIGH.
Cargo Temperature Control
Forward and Bulk Cargo Temperature Control
[Option – No forward cargo A/C]

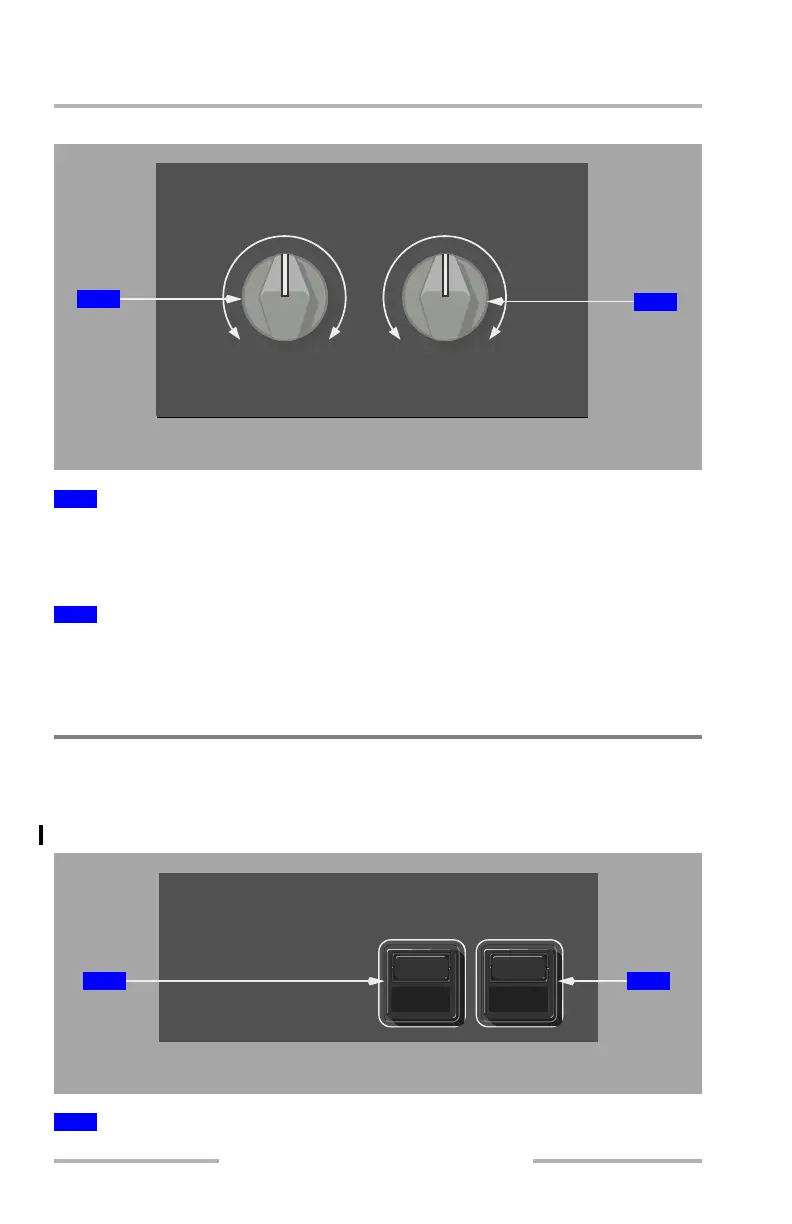

1
SHOULDER HEATER Control
2
FOOT HEATER Control
1
FWD CARGO TEMP Switch
SIDEWALL PANEL
HEATERS
SHOULDER FOOT
LOW HIGH LOW HIGH
2
1
CARGO TEMP
FWD
AUTO
OFF
BULK
AUTO
OFF
OVERHEAD PANEL
1 2
