AUTO – forward cargo heat system targeting 70° F (21° C).
Off (AUTO not visible) - forward cargo heat is commanded off.
OFF (illuminated amber) –
• forward E/E system in override
• forward E/E exhaust fan inoperative
• forward cargo fire detected
[Option – English / Metric units]
AUTO – bulk cargo heat system targeting 70° F (21° C).
Off (AUTO not visible) – bulk cargo heat is commanded off.
OFF (illuminated amber) –
• supply ventilation fan inoperative or supply ventilation valve closed
• aft cargo fire detected
Forward Cargo Air Conditioning Control
[Option – Forward cargo A/C]
LOW – Normal ventilation flow for maintaining perishable, temperature
sensitive, or any cargo other than animal carriage.
HIGH – High ventilation flow demanded from the air conditioning system for
removing odors from live animal or other odorous cargo.
Provides automatic temperature control for the forward cargo compartment
2
BULK CARGO TEMP Switch
1
FWD CARGO FLOW Selector
2

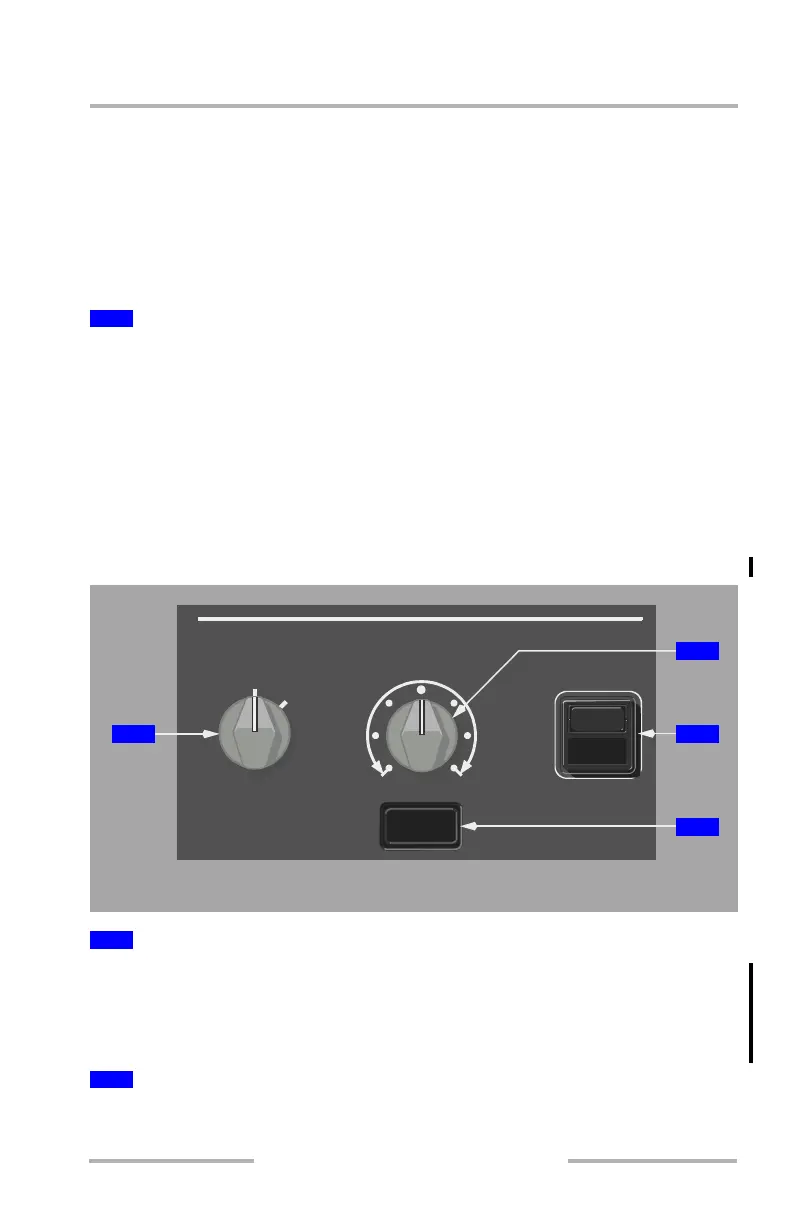

Forward Cargo Air Conditioning (FWD CARGO A/C) Control
OVERHEAD PANEL
ELT
BULK
OFF
FWD CARGO FLOW
FWD CARGO A/C
CARGO TEMP
CW
HIGH
LOW
AUTO
OFF
OFF
3
2
4
1
