787 Flight Crew Operations Manual
DO NOT USE FOR FLIGHT
Anti-Ice, Rain -
Controls and Indicators
Copyright © The Boeing Company. See title page for details.
3.10.2 D615Z003-TBC

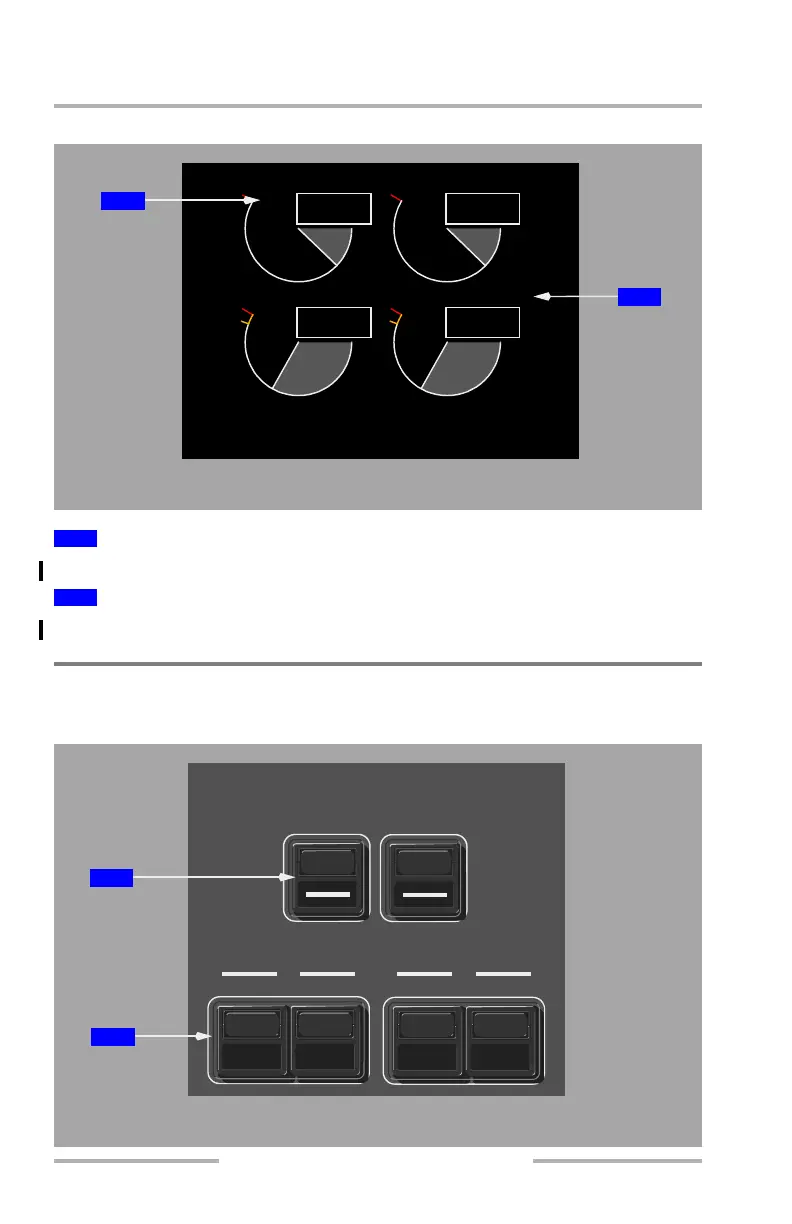

Anti–Ice Indications
Displayed (green) – engine anti-ice system is on.
Displayed (green) – wing anti-ice system is on.
Window Heat and Wiper/Washer Panels
Window Heat Panel
1
Engine Anti-ice Indication (EAI)
2
Wing Anti-Ice Indication (WAI)
WAI WAI
EAIEAI
EGT
1
N
588588
.21 5.21 5
EICAS DISPLAY
2
1
ON
BACKUP
PRIMARY
WINDOW HEAT
L FWD R FWD
ON
INOP
ON
INOP
ON
INOP
ON
INOP
ON
SIDE
LR
SIDEFWD FWD
OVERHEAD PANEL
2
1
