787 Flight Crew Operations Manual
DO NOT USE FOR FLIGHT
Automatic Flight Chapter 4
Controls and Indicators Section 10
Copyright © The Boeing Company. See title page for details.
D615Z003-TBC 4.10.1
4.10 Automatic Flight-Controls and Indicators
Automatic Flight10 C ontrols and IndicatorsControls and Indicators

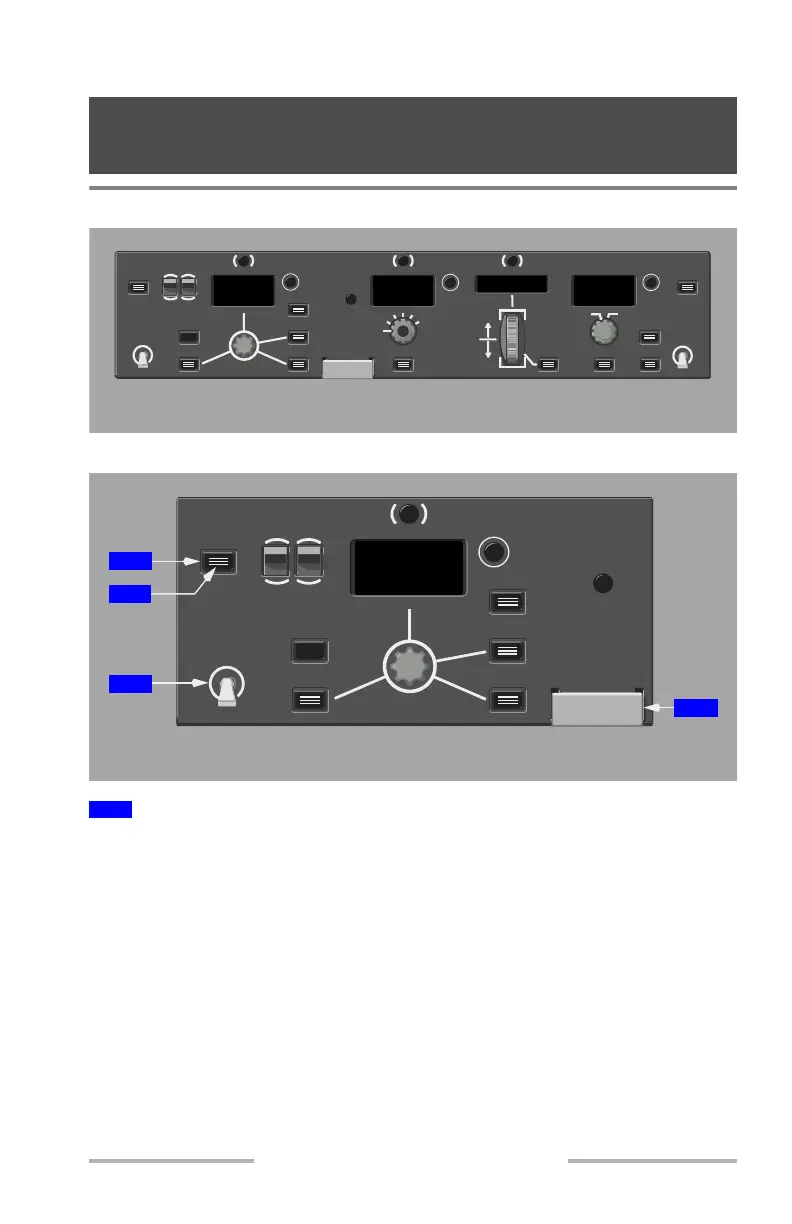

Mode Control Panel (MCP)
Autopilot Flight Director System Controls
Push (either switch can engage the autopilot) –
• if either flight director switch is ON, the autopilot engages in the selected
flight director mode(s)
• if both flight director switches are OFF, the autopilot engages in:
[Option – Bank angle hold]
• heading hold (HDG HOLD) or track hold (TRK HOLD) as the roll
mode, or if bank angle is greater than 5º, attitude hold (ATT)
[Option – Heading hold]
• heading hold (HDG HOLD) or track hold (TRK HOLD) as the roll
mode, and
• vertical speed (V/S) or flight path angle (FPA) as the pitch mode
1
Autopilot (A/P) Engage Switches
GLARESHIELD PANEL
F/D
ON
A/T ARM
LR
A/P
A/P
F/D
ON
OFF
CLB/CON
LNAV
VNAV
AUTO
10 30
BANK
LIMIT
DOWN
UP
FLCH HOLD HOLDVS/FPA
IAS MACH
ALTITUDE
XFR
A/T
LOC/FAC
AUTO 1000
APP
A/P DISENGAGE
OFF
OFF
SEL
HDG TRK
XFR
V/S FPA
XFR
IAS
UL
200
250
UL RL
HDG
200
200
V/S
+2000
17000
12000
UL
F/D
ON
A/T ARM
LR
A/P
OFF
CLB/CON
LNAV
VNAV
FLCH
IAS MACH
XFR
A/T
A/P DISENGAGE
OFF
IAS
UL
200
250
MODE CONTROL PANEL
3
1
2
4
August 14, 2009
